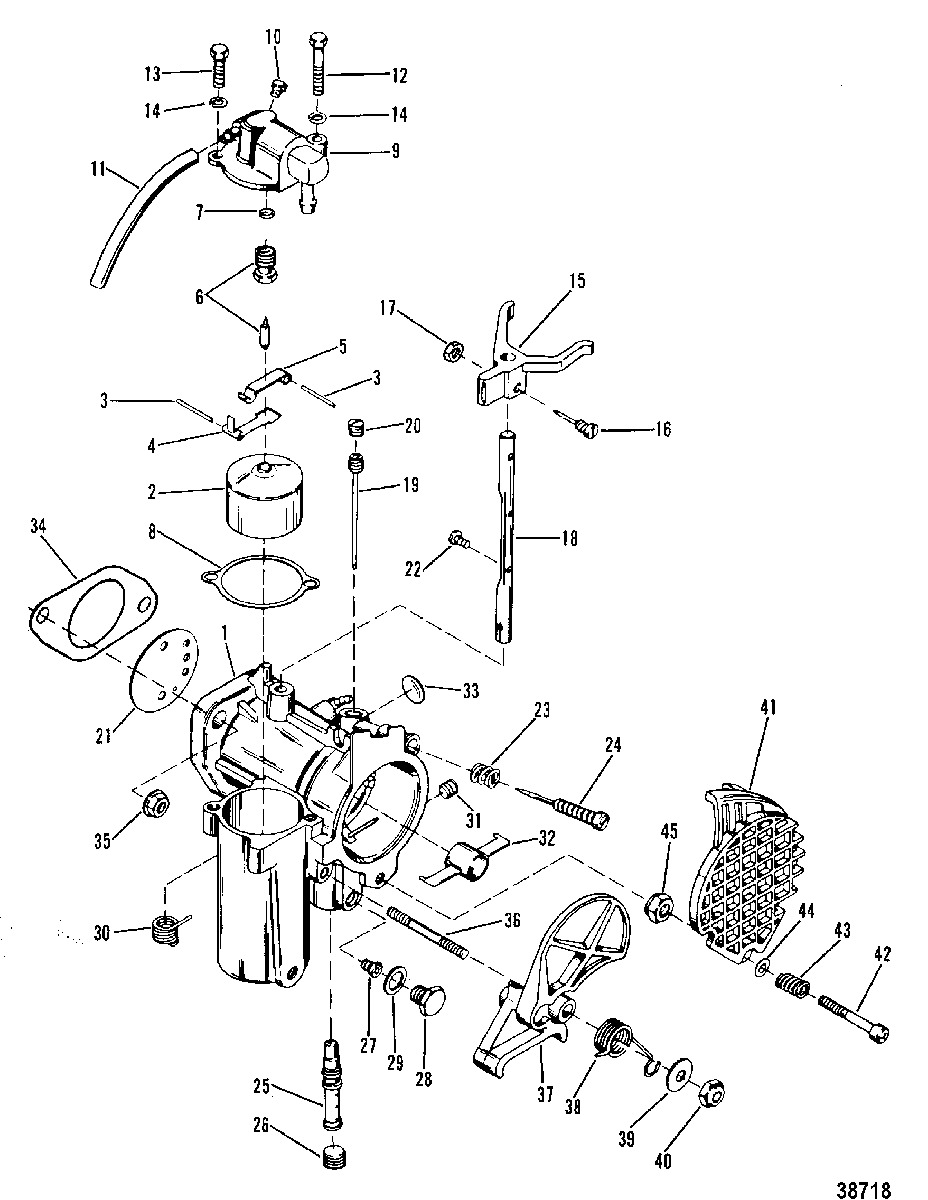

CARBURETOR ASSEMBLY для Mercury - 35 B110789 & Up

  • №
    Артикул
    Название
  • 1
    1368-7226A19 CARBURETOR ASSEMBLY
    CARBURETOR ASSEMBLY
  • 2
    1395-8673 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 3
    NSS NOT SOLD SEPARATE, Pin, float lever pinion
    NOT SOLD SEPARATE, Pin, float lever pinion
  • 4
    NSS NOT SOLD SEPARATE, Lever, float (Lower)
    NOT SOLD SEPARATE, Lever, float (Lower)
  • 5
    NSS NOT SOLD SEPARATE, Lever, float (Upper)
    NOT SOLD SEPARATE, Lever, float (Upper)
  • 6
    1395-83181 NEEDLE, Inlet, SEAT AND GASKET
    NEEDLE, Inlet, SEAT AND GASKET
  • 7
    NSS NOT SOLD SEPARATE, Gasket, inlet seat
    NOT SOLD SEPARATE, Gasket, inlet seat
  • 8
    NSS NOT SOLD SEPARATE, Gasket, float bowl cover
    NOT SOLD SEPARATE, Gasket, float bowl cover
  • 9
    1395-9016 COVER, FLOAT BOWL
    COVER, FLOAT BOWL
  • 10
    1399-6249 JET, Main (.096)
    JET, Main (.096)
  • 10
    1395-5733 JET, Main (.092)
    (WMK-38)
    JET, Main (.092)
    (WMK-38)
  • 11
    32-892024122 HOSE, ECONOMIZER
    HOSE, ECONOMIZER
  • 12
    10-52195 SCREW, FLOAT BOWL COVER
    SCREW, FLOAT BOWL COVER
  • 13
    1395-4804 SCREW, FLOAT BOWL COVER
    SCREW, FLOAT BOWL COVER
  • 14
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 15
    92880 LEVER, THROTTLE
    LEVER, THROTTLE
  • 16
    10-60293 SCREW, (#5-40 x .500), THROTTLE LEVER
    SCREW, (#5-40 x .500), THROTTLE LEVER
  • 17
    11-92500 PUSH NUT, THROTTLE LEVER SCREW
    PUSH NUT, THROTTLE LEVER SCREW
  • 18
    1395-8641 SHAFT, Throttle
    SHAFT, Throttle
  • 19
    NSS NOT SOLD SEPARATE, Idle Tube
    NOT SOLD SEPARATE, Idle Tube
  • 20
    1395-4540 SCREW, BODY (IDLE TUBE )
    SCREW, BODY (IDLE TUBE )
  • 21
    1395-9017 SHUTTER, Throttle
    SHUTTER, Throttle
  • 22
    NSS NOT SOLD SEPARATE, Screw and Lockwasher
    NOT SOLD SEPARATE, Screw and Lockwasher
  • 23
    NSS NOT SOLD SEPARATE, Spring, idle adjustment screw
    NOT SOLD SEPARATE, Spring, idle adjustment screw
  • 24
    NSS NOT SOLD SEPARATE, Screw, idle adjustment
    NOT SOLD SEPARATE, Screw, idle adjustment
  • 25
    NSS NOT SOLD SEPARATE, Main Nozzle
    NOT SOLD SEPARATE, Main Nozzle
  • 26
    1395-4542 SCREW, PLUG - MAIN NOZZLE
    SCREW, PLUG - MAIN NOZZLE
  • 27
    1395-6030 JET, (.070), MAIN FUEL
    JET, (.070), MAIN FUEL
  • 27
    1395-6207 JET, (.072), MAIN FUEL
    JET, (.072), MAIN FUEL
  • 27
    1399-3794 JET, (.074), MAIN FUEL
    JET, (.074), MAIN FUEL
  • 28
    1395-4541 SCREW, PLUG - MAIN FUEL JET CHANNEL
    SCREW, PLUG - MAIN FUEL JET CHANNEL
  • 29
    NSS NOT SOLD SEPARATE, Gasket, jet channel plug screw
    NOT SOLD SEPARATE, Gasket, jet channel plug screw
  • 30
    NSS NOT SOLD SEPARATE, Spring, throttle shaft return
    NOT SOLD SEPARATE, Spring, throttle shaft return
  • 31
    1395-4543 SCREW, BODY CHANNEL
    SCREW, BODY CHANNEL
  • 32
    52106A1 VENTURI, Plastic
    VENTURI, Plastic
  • 33
    NSS NOT SOLD SEPARATE, Welch Plug, body channel
    NOT SOLD SEPARATE, Welch Plug, body channel
  • 34
    27-481641 GASKET, CARBURETOR FLANGE
    GASKET, CARBURETOR FLANGE
  • 35
    11-64809 NUT, CARBURETOR MOUNTING STUD
    NUT, CARBURETOR MOUNTING STUD
  • 36
    16-69016 STUD, CHOKE SHUTTER PIVOT
    STUD, CHOKE SHUTTER PIVOT
  • 37
    55179 SHUTTER, Choke
    SHUTTER, Choke
  • 38
    24-55163 SPRING, TENSION - CHOKE SHUTTER
    SPRING, TENSION - CHOKE SHUTTER
  • 39
    12-47960 WASHER
    WASHER
  • 40
    11-20110 NUT, (#10-32), CHOKE SHUTTER
    NUT, (#10-32), CHOKE SHUTTER
  • 41
    35-57819 SCREEN
    SCREEN
  • 42
    10-58185 SCREW, (#10-32 x 1.00)
    SCREW, (#10-32 x 1.00)
  • 43
    24-57818 SPRING, TENSION
    SPRING, TENSION
  • 44
    12-30164 WASHER
    WASHER
  • 45
    11-20110 NUT, (#10-32)
    NUT, (#10-32)
  • -
    1395-51091 REPAIR PARTS KIT
    REPAIR PARTS KIT
  • -
    1395-879194024 GASKET SET
    GASKET SET
  • -
    27-85489A87 GASKET SET
    GASKET SET
