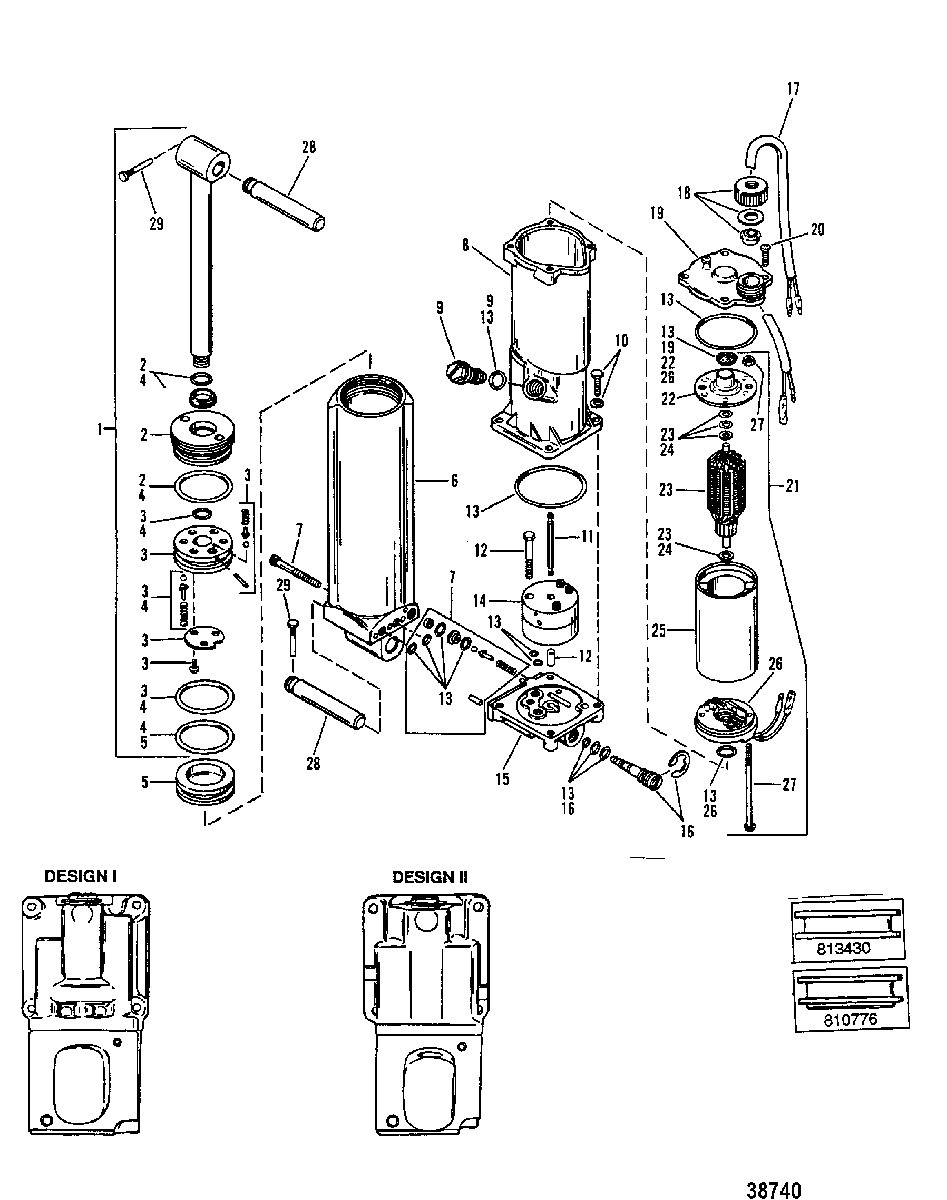

ELECTRIC TRIM COMPONENTS(LONG SHAFT)(0C159200 AND UP) для Mercury - 35 B110789 & Up

  • №
    Артикул
    Название
  • -
    854472A3 PUMP ASSEMBLY, Trim (Included all parts listed)
    (DESIGN I)
    PUMP ASSEMBLY, Trim (Included all parts listed)
    (DESIGN I)
  • -
    854472A3 PUMP ASSEMBLY, Trim (Included all parts listed)
    (DESIGN II)
    PUMP ASSEMBLY, Trim (Included all parts listed)
    (DESIGN II)
  • 1
    813427 SHOCK ROD ASSEMBLY KIT
    SHOCK ROD ASSEMBLY KIT
  • 2
    813428 END CAP ASSEMBLY, Trim Cylinder
    END CAP ASSEMBLY, Trim Cylinder
  • 3
    813429 PISTON ASSEMBLY, Shock
    PISTON ASSEMBLY, Shock
  • 4
    813432A1 CYLINDER REBUILD KIT
    CYLINDER REBUILD KIT
  • 5
    893903A01 PISTON KIT, Trim Memory
    To Insure ordering correct memory piston, check and compare to illustration
    PISTON KIT, Trim Memory
    To Insure ordering correct memory piston, check and compare to illustration
  • 5
    810776 PISTON KIT, Memory
    To Insure ordering correct memory piston, check and compare to illustration
    PISTON KIT, Memory
    To Insure ordering correct memory piston, check and compare to illustration
  • 6
    810777 CYLINDER KIT
    (DESIGN I)
    CYLINDER KIT
    (DESIGN I)
  • 6
    8M0055016 CYLINDER KIT
    (DESIGN II)
    CYLINDER KIT
    (DESIGN II)
  • 7
    893919A01 SCREW AND SEAL KIT
    (DESIGN I)
    SCREW AND SEAL KIT
    (DESIGN I)
  • 7
    811678A6 SCREW AND SEAL KIT
    (DESIGN II)
    SCREW AND SEAL KIT
    (DESIGN II)
  • 8
    811227 PUMP
    (DESIGN I)(SEE ILLUSTRATION)
    PUMP
    (DESIGN I)(SEE ILLUSTRATION)
  • 8
    811227 PUMP
    (DESIGN II)(SEE ILLUSTRATION)
    PUMP
    (DESIGN II)(SEE ILLUSTRATION)
  • 9
    813441 MANIFOLD ASSEMBLY
    (DESIGN I)
    MANIFOLD ASSEMBLY
    (DESIGN I)
  • 9
    811225 MANIFOLD ASSEMBLY
    (DESIGN II)
    MANIFOLD ASSEMBLY
    (DESIGN II)
  • 10
    10-813436 SCREW KIT
    SCREW KIT
  • 11
    813437 DRIVESHAFT
    DRIVESHAFT
  • 12
    813438 SCREW AND PIN KIT
    SCREW AND PIN KIT
  • 13
    25-813439A3 SEAL KIT
    SEAL KIT
  • 14
    813434A1 RESERVOIR
    RESERVOIR
  • 15
    22-8134351 PLUG KIT
    PLUG KIT
  • 16
    893929A01 RELIEF VALVE KIT
    RELIEF VALVE KIT
  • 17
    84-811698 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 18
    84-811698 BEZEL KIT
    BEZEL KIT
  • 19
    813445 CAP KIT, Reservoir
    CAP KIT, Reservoir
  • 20
    10-813446 SCREW, CAP
    SCREW, CAP
  • 21
    813447 MOTOR KIT
    MOTOR KIT
  • 22
    813448 END CAP
    END CAP
  • 23
    813449A1 ARMATURE
    ARMATURE
  • 24
    12-813450 THRUST WASHER KIT
    THRUST WASHER KIT
  • 25
    813451 SHELL AND MAGNET KIT
    SHELL AND MAGNET KIT
  • 26
    813452 END FRAME KIT
    END FRAME KIT
  • 27
    10-813453 BOLT AND NUT KIT
    BOLT AND NUT KIT
  • 28
    17-19607 PIN
    PIN
  • 29
    17-821539 PIN, Groove
    PIN, Groove
