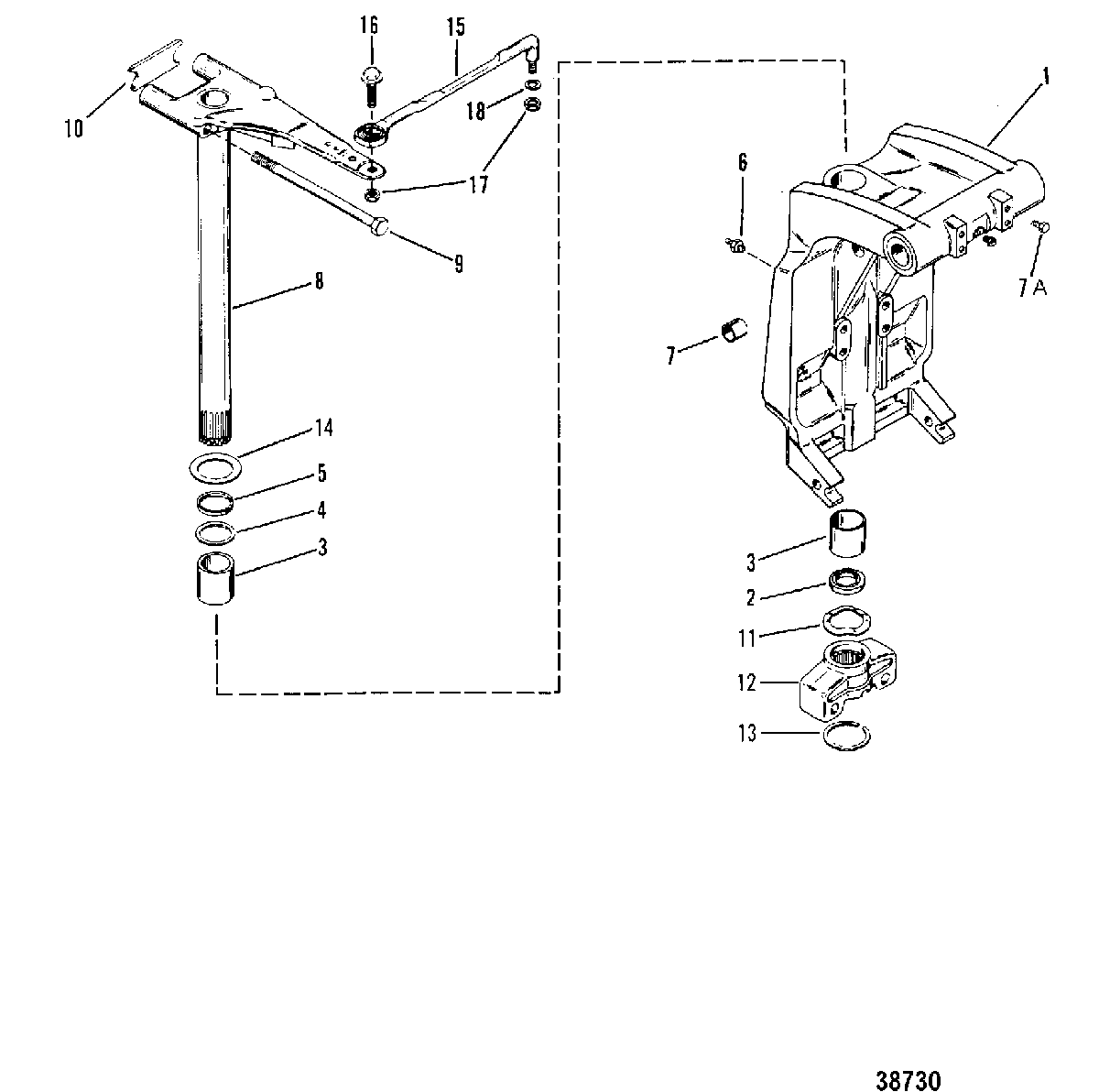

SWIVEL BRACKET(POWER TRIM)(0C159199 AND BELOW) для Mercury - 35 B110789 & Up

  • №
    Артикул
    Название
  • 1
    1499-8M0102865 SWIVEL BRACKET ASSEMBLY
    SWIVEL BRACKET ASSEMBLY
  • 2
    26-87735 SEAL, Oil (LOWER)
    SEAL, Oil (LOWER)
  • 3
    23-818764 BUSHING, LOWER AND UPPER
    BUSHING, LOWER AND UPPER
  • 4
    25-33466 O-RING, UPPER
    O-RING, UPPER
  • 5
    23-67668 SPACER, UPPER
    SPACER, UPPER
  • 6
    22-74036 FITTING, Grease
    FITTING, Grease
  • 7
    23-821207 BUSHING
    BUSHING
  • 7A
    10-64014 SCREW, (.250-28 x .500)
    SCREW, (.250-28 x .500)
  • 8
    99661A2 SWIVEL PIN ASSEMBLY
    SWIVEL PIN ASSEMBLY
  • 9
    10-99621 SCREW, (.437-20 x 6.620)
    SCREW, (.437-20 x 6.620)
  • 10
    28203 BUMPER
    BUMPER
  • 11
    13-78854 WAVE WASHER
    WAVE WASHER
  • 12
    42961T YOKE, Bottom
    YOKE, Bottom
  • 13
    53-67684 RING, Retaining
    RING, Retaining
  • 14
    12-67670 WASHER
    WASHER
  • 15
    92876A12 LINK ASSEMBLY, Steering
    LINK ASSEMBLY, Steering
  • 16
    10-849838 SCREW, (.375-24 x 1.25)
    SCREW, (.375-24 x 1.25)
  • 17
    11-8M0042636 NUT, (.375-24)
    NUT, (.375-24)
  • 18
    12-34931 WASHER, (.406 x .734 x .063) Stainless Steel
    WASHER, (.406 x .734 x .063) Stainless Steel
  • -
    27-85489A87 GASKET SET
    GASKET SET
