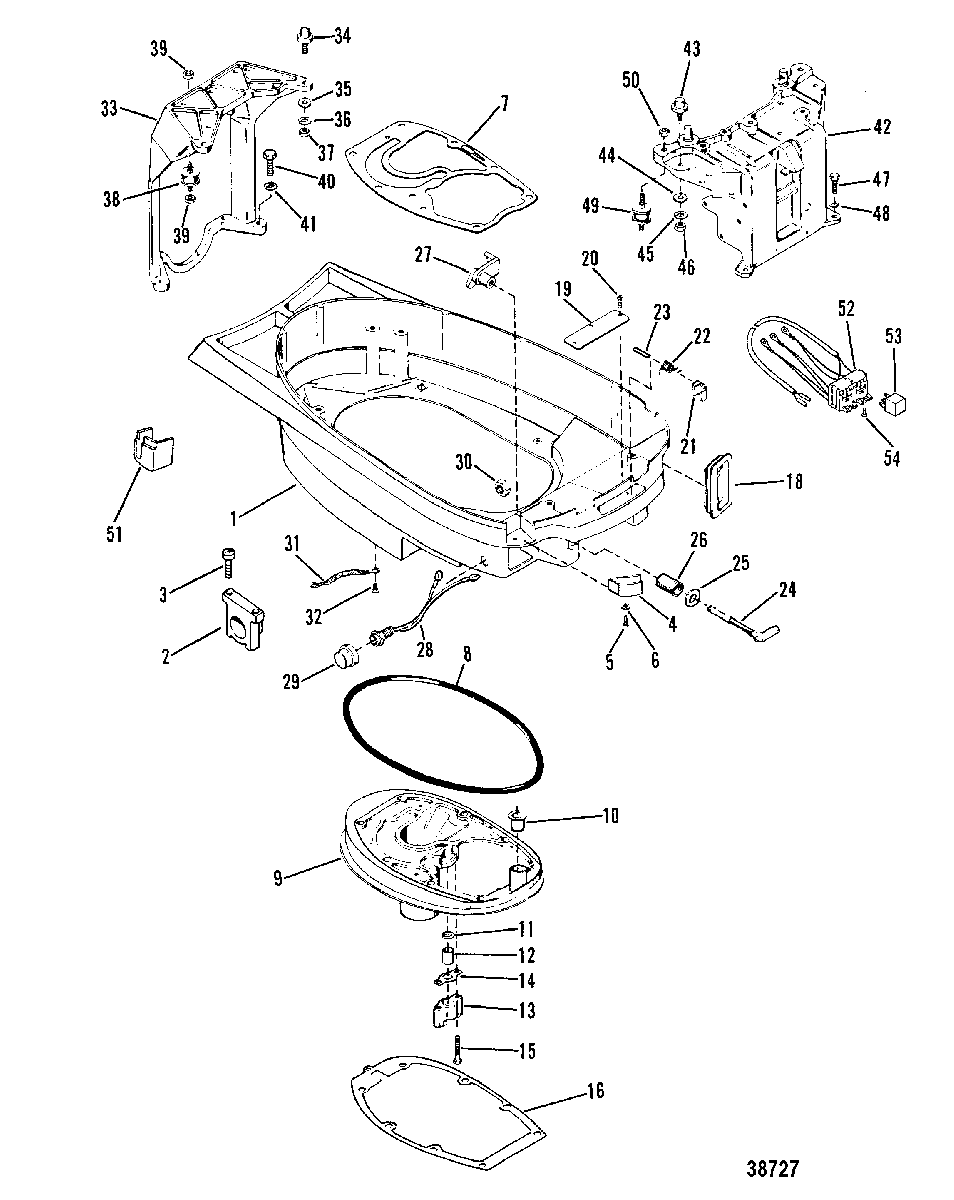

BOTTOM COWL AND EXHAUST PLATE для Mercury - 35 B110789 & Up

  • №
    Артикул
    Название
  • 1
    2139-7642A2 BOTTOM COWL ASSEMBLY
    BOTTOM COWL ASSEMBLY
  • 2
    57786 COVER, PLUG
    (MANUAL)
    COVER, PLUG
    (MANUAL)
  • 3
    10-61802 SCREW (7/8")
    (MANUAL)
    SCREW (7/8")
    (MANUAL)
  • 4
    88618 PLUG, BOTTOM COWL
    (MANUAL)
    PLUG, BOTTOM COWL
    (MANUAL)
  • 5
    10-48409 SCREW, (#10-16 x .625) Stainless Steel
    (MANUAL)
    SCREW, (#10-16 x .625) Stainless Steel
    (MANUAL)
  • 6
    12-56681 WASHER, (.203 x .500 x .032)
    (MANUAL)
    WASHER, (.203 x .500 x .032)
    (MANUAL)
  • 7
    27-628601 GASKET
    GASKET
  • 8
    39622 SEAL, RUBBER - EXHAUST PLATE TO BOTTOM COWL
    SEAL, RUBBER - EXHAUST PLATE TO BOTTOM COWL
  • 9
    42818A1 PLATE ASSEMBLY, EXHAUST EXTENSION
    PLATE ASSEMBLY, EXHAUST EXTENSION
  • 10
    23-27132 BUSHING, FLANG EXHAUST PLATE
    BUSHING, FLANG EXHAUST PLATE
  • 11
    12-38453 WASHER, NYLON - WATER OUTLET TUBE
    WASHER, NYLON - WATER OUTLET TUBE
  • 12
    26-38452 SEAL, WATER OUTLET TUBE
    SEAL, WATER OUTLET TUBE
  • 13
    79799 HOUSING, WATER INLET TUBE SEAL
    HOUSING, WATER INLET TUBE SEAL
  • 14
    27-797971 GASKET, HOUSING
    GASKET, HOUSING
  • 15
    10-79798 SCREW, (#10-32 x 1.380), HOUSING TO EXHAUST PLATE
    SCREW, (#10-32 x 1.380), HOUSING TO EXHAUST PLATE
  • 16
    27-385011 GASKET, EXHAUST PLATE TO DRIVE SHAFT HOUSING
    GASKET, EXHAUST PLATE TO DRIVE SHAFT HOUSING
  • 18
    39616 BOOT, CONTROL CABLE - BOTTOM COWL
    BOOT, CONTROL CABLE - BOTTOM COWL
  • 19
    39555 COVER PLATE
    COVER PLATE
  • 20
    10-8M0113176 SCREW, (#10-24 x .375), COVER PLATE TO BOTTOM COWL
    SCREW, (#10-24 x .375), COVER PLATE TO BOTTOM COWL
  • 21
    76176 LEVER, FRONT COVER
    LEVER, FRONT COVER
  • 22
    24-76177 SPRING, FRONT COVER LEVER
    SPRING, FRONT COVER LEVER
  • 23
    17-26541 PIN, Roll, LEVER TO BOTTOM COWL
    PIN, Roll, LEVER TO BOTTOM COWL
  • 24
    47969 KNOB AND SHAFT, CHOKE
    KNOB AND SHAFT, CHOKE
  • 25
    12-30314 WASHER, CHOKE SHAFT
    WASHER, CHOKE SHAFT
  • 26
    24-47968 SPRING, COMPRESSION - CHOKE SHAFT
    SPRING, COMPRESSION - CHOKE SHAFT
  • 27
    55180 LEVER, CHOKE
    LEVER, CHOKE
  • 28
    87-69508A32 SWITCH ASSEMBLY, Stop
    MANUAL PUSH BUTTON SWITCH
    SWITCH ASSEMBLY, Stop
    MANUAL PUSH BUTTON SWITCH
  • 29
    87-99525A1 COVER ASSEMBLY, STOP SWITCH
    MANUAL PUSH BUTTON SWITCH
    COVER ASSEMBLY, STOP SWITCH
    MANUAL PUSH BUTTON SWITCH
  • 30
    11-69844 NUT, STOP SWITCH
    MANUAL PUSH BUTTON SWITCH
    NUT, STOP SWITCH
    MANUAL PUSH BUTTON SWITCH
  • 31
    84-88238T01 CABLE ASSEMBLY, BOTTOM COWL
    CABLE ASSEMBLY, BOTTOM COWL
  • 32
    10-8M0113176 SCREW, (#10-24 x .375), GROUND STRAP
    SCREW, (#10-24 x .375), GROUND STRAP
  • 33
    76132 BRACKET, SUPPORT - TOP COWL (REAR)
    BRACKET, SUPPORT - TOP COWL (REAR)
  • 34
    60577 MOUNT, RUBBER - REAR SUPPORT BRACKET
    MOUNT, RUBBER - REAR SUPPORT BRACKET
  • 35
    12-35044 WASHER, (.281 x .625 x .065) Stainless Steel, RUBBER MOUNT
    WASHER, (.281 x .625 x .065) Stainless Steel, RUBBER MOUNT
  • 36
    13-26992 LOCKWASHER, (.250) Stainless Steel, RUBBER MOUNT
    LOCKWASHER, (.250) Stainless Steel, RUBBER MOUNT
  • 37
    11-36069 NUT, RUBBER MOUNT
    NUT, RUBBER MOUNT
  • 38
    90435 MOUNT, RUBBER - REAR SUPPORT BRACKET
    MOUNT, RUBBER - REAR SUPPORT BRACKET
  • 39
    11-20184 NUT, (1/4-28X7/32), RUBBER MOUNT
    NUT, (1/4-28X7/32), RUBBER MOUNT
  • 40
    10-37562 SCREW, (.312-18 x 1.00) Stainless Steel, REAR SUPPORT BRACKET
    SCREW, (.312-18 x 1.00) Stainless Steel, REAR SUPPORT BRACKET
  • 41
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 42
    95967T BRACKET, SUPPORT - TOP COWL (FRONT)
    BRACKET, SUPPORT - TOP COWL (FRONT)
  • 43
    31014 MOUNT, RUBBER - FRONT SUPPORT BRACKET
    MOUNT, RUBBER - FRONT SUPPORT BRACKET
  • 44
    12-35044 WASHER, (.281 x .625 x .065) Stainless Steel, RUBBER MOUNT
    WASHER, (.281 x .625 x .065) Stainless Steel, RUBBER MOUNT
  • 45
    13-26992 LOCKWASHER, (.250) Stainless Steel, RUBBER MOUNT
    LOCKWASHER, (.250) Stainless Steel, RUBBER MOUNT
  • 46
    11-36069 NUT, RUBBER MOUNT
    NUT, RUBBER MOUNT
  • 47
    10-37562 SCREW, (.312-18 x 1.00) Stainless Steel
    SCREW, (.312-18 x 1.00) Stainless Steel
  • 48
    13-26993 LOCKWASHER, (.312), FRONT SUPPORT BRACKET SCREW
    LOCKWASHER, (.312), FRONT SUPPORT BRACKET SCREW
  • 49
    90435 MOUNT, RUBBER - FRONT SUPPORT BRACKET
    MOUNT, RUBBER - FRONT SUPPORT BRACKET
  • 50
    11-20184 NUT, (1/4-28X7/32), RUBBER MOUNT
    NUT, (1/4-28X7/32), RUBBER MOUNT
  • 51
    948791 PLUG, BOTTOM COWL (HANDLE/ELECTRIC)
    PLUG, BOTTOM COWL (HANDLE/ELECTRIC)
  • 52
    84-19758A3 HARNESS ASSEMBLY
    (Power Trim) SN# 0C159200 & Up
    HARNESS ASSEMBLY
    (Power Trim) SN# 0C159200 & Up
  • 53
    87-18211 RELAY SWITCH
    (Power Trim) SN# 0C159200 & Up
    RELAY SWITCH
    (Power Trim) SN# 0C159200 & Up
  • 54
    10-20401 SCREW, (.190-24 x .38)
    (Power Trim) SN# 0C159200 & Up
    SCREW, (.190-24 x .38)
    (Power Trim) SN# 0C159200 & Up
  • -
    27-85489A87 GASKET SET
    GASKET SET
