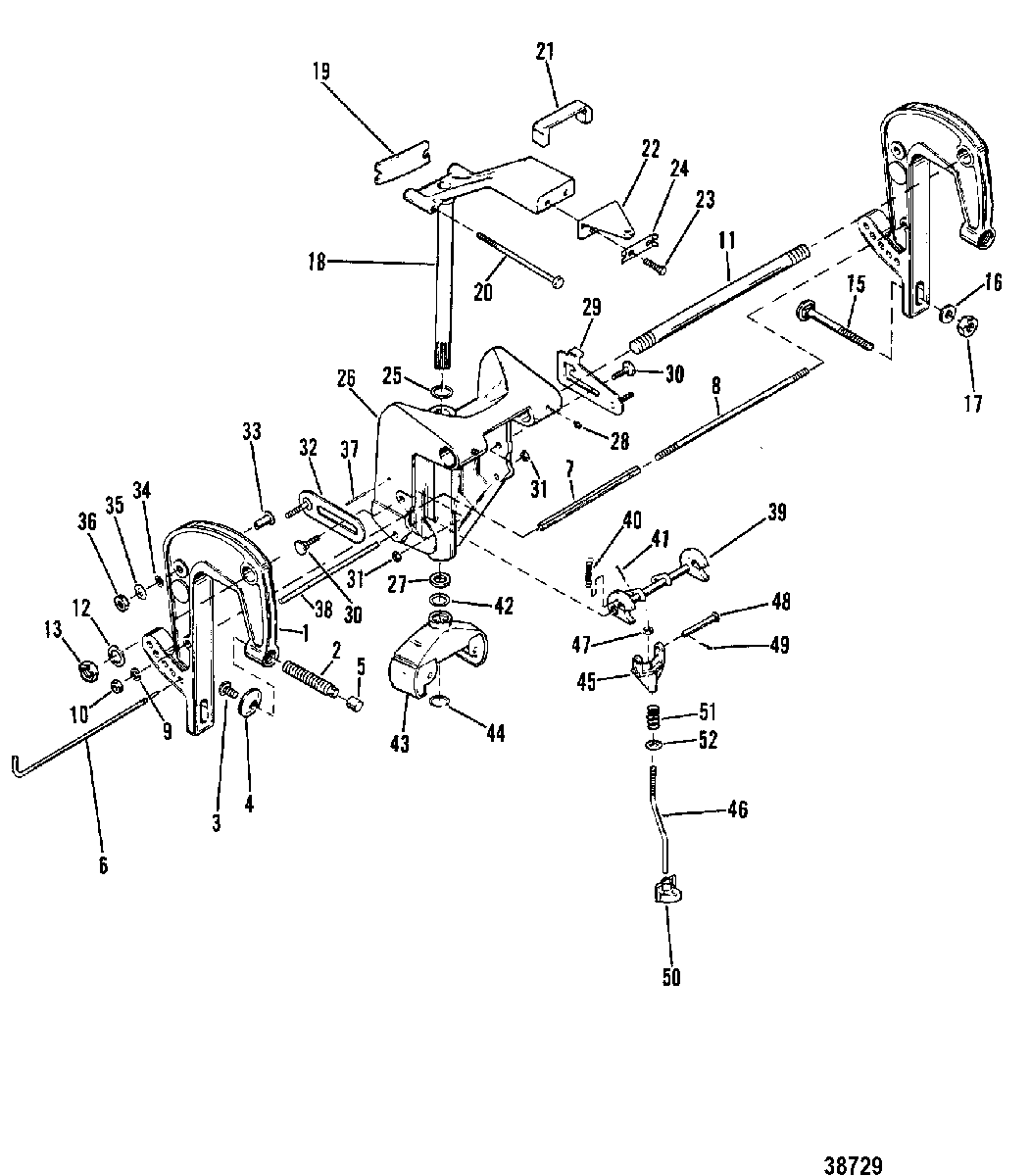

Clamp/Swivel Bracket(Short)(Long-0C159199 and Below(NPT) для Mercury - 35 B110789 & Up

  • №
    Артикул
    Название
  • 1
    1427-5611A5 CLAMP BRACKET ASSEMBLY
    (MANUAL))
    CLAMP BRACKET ASSEMBLY
    (MANUAL))
  • 1
    1427-5611A4 CLAMP BRACKET ASSEMBLY
    (ELECTRIC)
    CLAMP BRACKET ASSEMBLY
    (ELECTRIC)
  • 2
    10-90470A3 THUMB SCREW ASSEMBLY
    (MANUAL)
    THUMB SCREW ASSEMBLY
    (MANUAL)
  • 2
    10-78492A1 THUMB SCREW ASSEMBLY
    (ELECTRIC)
    THUMB SCREW ASSEMBLY
    (ELECTRIC)
  • 3
    10-78495 SCREW, WASHER TO THUMB SCREW
    SCREW, WASHER TO THUMB SCREW
  • 4
    12-78493 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 5
    75043 CAP
    (ELECTRIC)
    CAP
    (ELECTRIC)
  • 6
    17-8M0026068 PIN ASSEMBLY, Tilt Lock
    PIN ASSEMBLY, Tilt Lock
  • 7
    23-59623 SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 8
    16-59625 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 9
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 10
    11-28770 NUT, (.312-24) Stainless Steel
    NUT, (.312-24) Stainless Steel
  • 11
    8M0041936 TILT TUBE
    TILT TUBE
  • 12
    12-52864 WASHER
    WASHER
  • 13
    11-858869 NUT, (.875-14), TILT TUBE
    NUT, (.875-14), TILT TUBE
  • 15
    10-68298 BOLT, (.375-16 x 3.250) (LOWER)
    BOLT, (.375-16 x 3.250) (LOWER)
  • 16
    12-46765 WASHER (LOWER)
    WASHER (LOWER)
  • 17
    11-82671112 NUT
    NUT
  • 18
    88798A23 ARM ASSEMBLY, Steering
    (SHORT SHAFT)
    ARM ASSEMBLY, Steering
    (SHORT SHAFT)
  • 18
    88798A24 ARM ASSEMBLY, Steering
    (LONG SHAFT)
    ARM ASSEMBLY, Steering
    (LONG SHAFT)
  • 19
    30711 BUMPER
    BUMPER
  • 20
    10-66897 BOLT, (.437-20 x 5.250)
    BOLT, (.437-20 x 5.250)
  • 21
    62297 BUMPER
    BUMPER
  • 22
    76535T BRACKET
    W/O TILLER HANDLER
    BRACKET
    W/O TILLER HANDLER
  • 23
    10-34352 SCREW, (.375-24 x .875)
    W/O TILLER HANDLER
    SCREW, (.375-24 x .875)
    W/O TILLER HANDLER
  • 24
    76533 STRAP
    W/O TILLER HANDLER
    STRAP
    W/O TILLER HANDLER
  • 25
    12-52865 WASHER
    WASHER
  • 26
    1481-7656A1 SWIVEL BRACKET
    (SHORT SHAFT)
    SWIVEL BRACKET
    (SHORT SHAFT)
  • 26
    1480-7655A1 SWIVEL BRACKET
    (LONG SHAFT)
    SWIVEL BRACKET
    (LONG SHAFT)
  • 27
    26-32911 SEAL, Oil
    SEAL, Oil
  • 28
    22-74036 FITTING, Grease
    FITTING, Grease
  • 29
    47913A2 LEVER ASSEMBLY (PORT)
    LEVER ASSEMBLY (PORT)
  • 30
    10-69087 SCREW, (.312-24 x .880)
    SCREW, (.312-24 x .880)
  • 31
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 32
    47912A2 LEVER ASSEMBLY (STARBOARD)
    LEVER ASSEMBLY (STARBOARD)
  • 33
    23-47911 BUSHING
    BUSHING
  • 34
    1397-2605 WAVE WASHER
    WAVE WASHER
  • 35
    12-56720 WASHER, (.330 x .750 x .060) Stainless Steel
    WASHER, (.330 x .750 x .060) Stainless Steel
  • 36
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 37
    17-25598 PIN
    PIN
  • 38
    56349 SHAFT
    SHAFT
  • 39
    14664A3 REVERESE LOCK
    REVERESE LOCK
  • 40
    24-29821 SPRING
    SPRING
  • 41
    18-45882 COTTER PIN
    COTTER PIN
  • 42
    12-25176 WASHER (.060)
    WASHER (.060)
  • 43
    77416T1 YOKE, Bottom
    YOKE, Bottom
  • 44
    53-77415 RETAINING RING
    RETAINING RING
  • 45
    89813 ROD END
    ROD END
  • 46
    43412 ROD, PUSH
    (SHORT SHAFT)
    ROD, PUSH
    (SHORT SHAFT)
  • 46
    43413 ROD, PUSH
    (LONG SHAFT)
    ROD, PUSH
    (LONG SHAFT)
  • 47
    11-82670911 NUT, (.312-24) Stainless Steel
    NUT, (.312-24) Stainless Steel
  • 48
    17-72524 PIN
    PIN
  • 49
    18-25191 COTTER PIN
    COTTER PIN
  • 50
    933361 GUIDE
    GUIDE
  • 51
    24-44297 SPRING
    SPRING
  • 52
    12-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel
    WASHER, (.323 x .563 x .063) Stainless Steel
