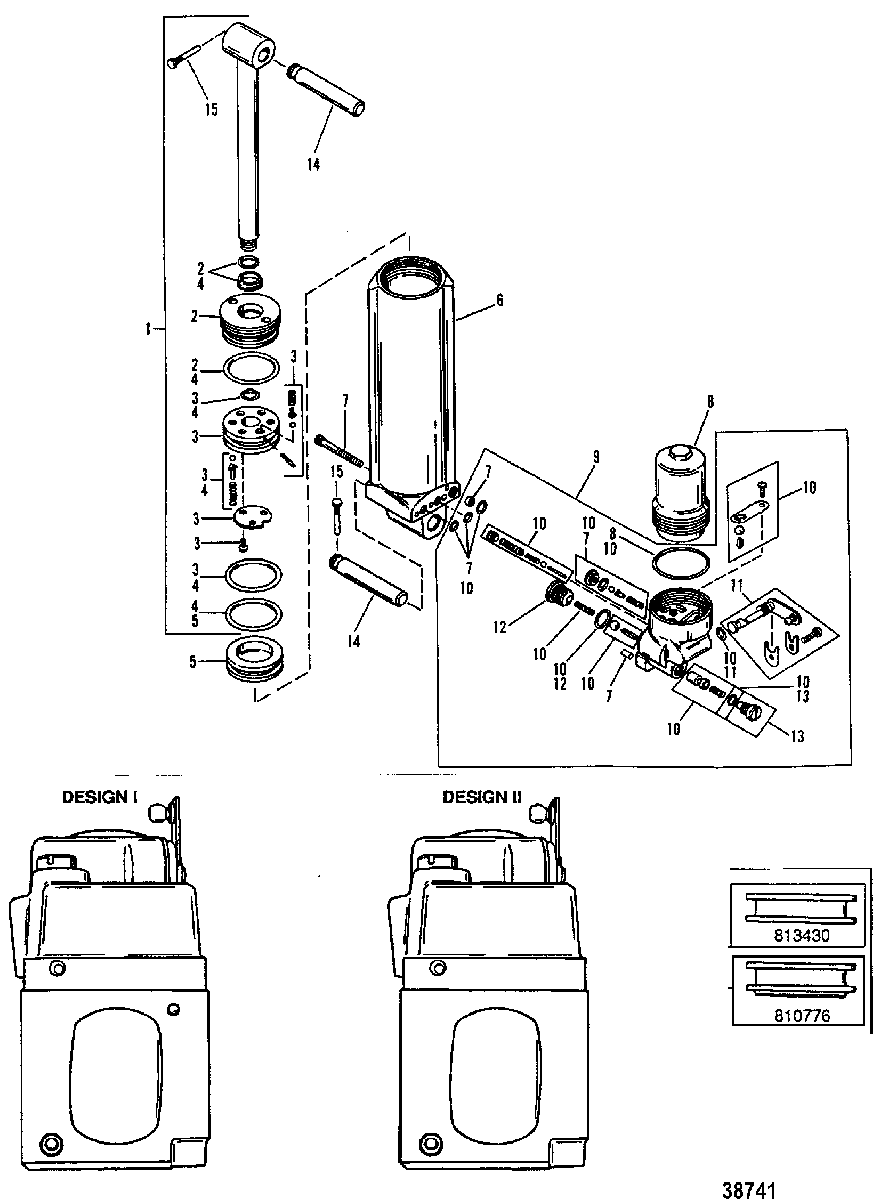

MANUAL TILT COMPONENTS(LONG SHAFT)(0C159200 AND UP) для Mercury - 35 B110789 & Up
-
№АртикулНазвание
-
-8M0118570 PUMP ASSEMBLY, Tilt (Includes all parts listed)PUMP ASSEMBLY, Tilt (Includes all parts listed)
-
1813427 SHOCK ROD ASSEMBLY KITSHOCK ROD ASSEMBLY KIT
-
2813428 END CAP ASSEMBLY, Trim CylinderEND CAP ASSEMBLY, Trim Cylinder
-
3813429 PISTON ASSEMBLY, ShockPISTON ASSEMBLY, Shock
-
4813432A1 CYLINDER REBUILD KITCYLINDER REBUILD KIT
-
5893903A01 PISTON KIT, Trim Memory
(To insure ordering the correct memory piston, check and compare to illustration)PISTON KIT, Trim Memory
(To insure ordering the correct memory piston, check and compare to illustration) -
5810776 PISTON KIT, Memory (To insure ordering the correct memory piston, check and compare to illustration)PISTON KIT, Memory (To insure ordering the correct memory piston, check and compare to illustration)
-
6810777 CYLINDER KIT
(DESIGN I ) SEE ILLUSTRATIONCYLINDER KIT
(DESIGN I ) SEE ILLUSTRATION -
6811224 CYLINDER
(DESIGN II) SEE ILLUSTRATIONCYLINDER
(DESIGN II) SEE ILLUSTRATION -
7893919A01 SCREW AND SEAL KIT, CYLINDERSCREW AND SEAL KIT, CYLINDER
-
8893920A01 ACCUMULATORACCUMULATOR
-
98M0118574 VALVE BLOCK ASSEMBLYVALVE BLOCK ASSEMBLY
-
10813456A4 REPAIR KIT, VALVE BLOCKREPAIR KIT, VALVE BLOCK
-
11813457A1 CAM ASSEMBLY KITCAM ASSEMBLY KIT
-
1222-813458 PLUG KITPLUG KIT
-
1322-813459 PLUG KITPLUG KIT
-
1417-19607 PINPIN
-
1517-821539 PIN, GroovePIN, Groove
