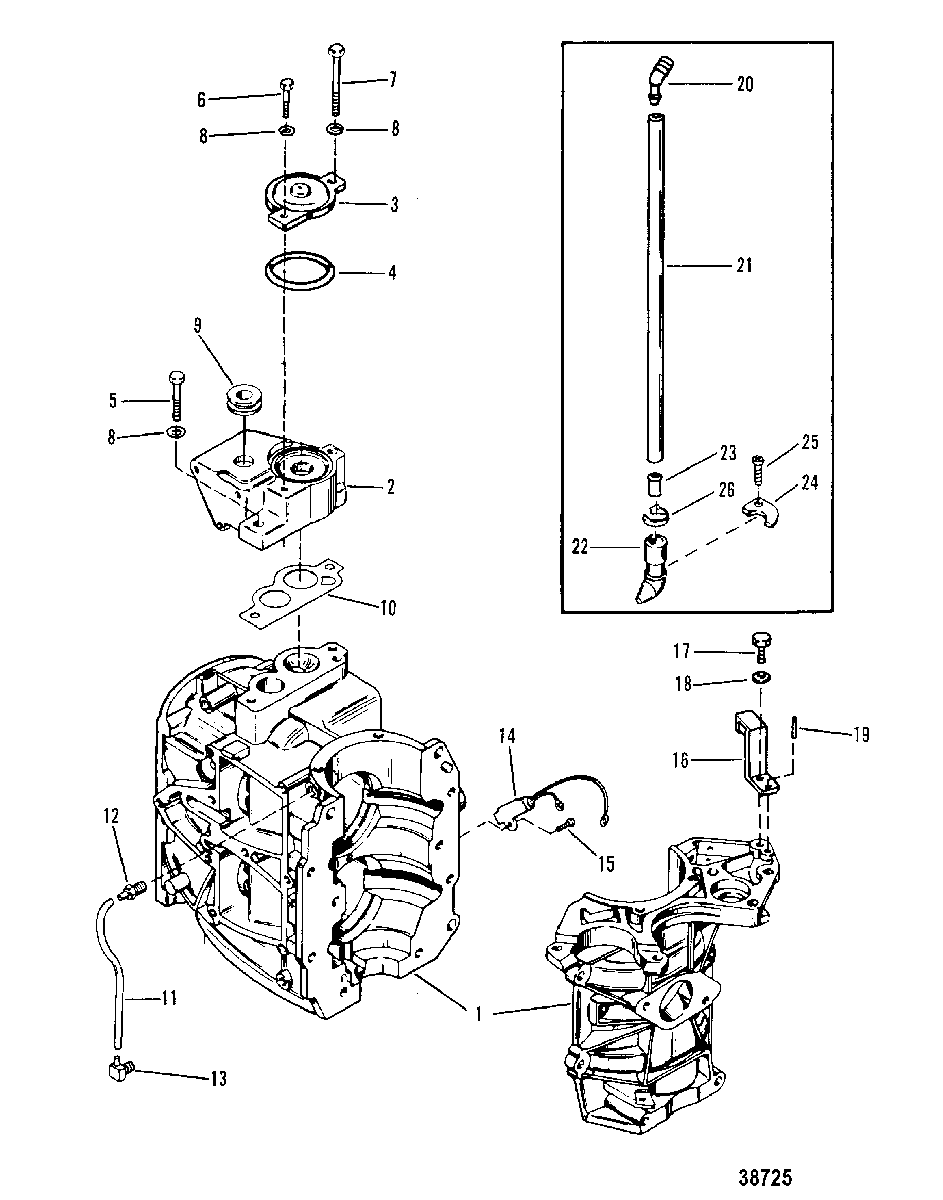

CYLINDER BLOCK AND THERMOSTAT для Mercury - 35 B110789 & Up
-
№АртикулНазвание
-
1851-7940A6 CYLINDER BLOCK/CRANKCASECYLINDER BLOCK/CRANKCASE
-
266843T BRACKET, COIL MOUNTINGBRACKET, COIL MOUNTING
-
399436A1 COVER ASSEMBLY, COIL BRACKETCOVER ASSEMBLY, COIL BRACKET
-
425-823683 O-RING, COVERO-RING, COVER
-
510-31984 SCREW, (.312-18 x 1.375)SCREW, (.312-18 x 1.375)
-
610-30225 SCREW AND LOCKWASHER, (.312-18 x 1.00)SCREW AND LOCKWASHER, (.312-18 x 1.00)
-
710-58414 SCREW (2-1/2")SCREW (2-1/2")
-
813-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
925-39597 GROMMET, COIL MOUNTING BRACKETGROMMET, COIL MOUNTING BRACKET
-
1027-66847 GASKET, COIL MOUNTING BRACKET TO BLOCKGASKET, COIL MOUNTING BRACKET TO BLOCK
-
1132-9938779 HOSE, CYLINDER BLEED (8")HOSE, CYLINDER BLEED (8")
-
1221-42866 CHECK VALVE, CYLINDER BLEED (TOP)CHECK VALVE, CYLINDER BLEED (TOP)
-
1321-42863 CHECK VALVE, CYLINDER BLEED (BOTTOM)CHECK VALVE, CYLINDER BLEED (BOTTOM)
-
1458124A27 SWITCH (BULLET CONNECTORS)SWITCH (BULLET CONNECTORS)
-
1510-62568 SCREW, (#10-16 x .375), MERCURY SWITCH TO EXHAUST COVERSCREW, (#10-16 x .375), MERCURY SWITCH TO EXHAUST COVER
-
1676184 INDICATOR, TIMING
(ELECTRIC)INDICATOR, TIMING
(ELECTRIC) -
1710-25299 SCREW, (.312-18 x .75)
(ELECTRIC)SCREW, (.312-18 x .75)
(ELECTRIC) -
1812-20084 WASHER, (.328 x .562 x .062)
(ELECTRIC)WASHER, (.328 x .562 x .062)
(ELECTRIC) -
1917-29908 PIN
(ELECTRIC)PIN
(ELECTRIC) -
2022-782792 ELBOW, TELL TALE HOSE TO BLOCKELBOW, TELL TALE HOSE TO BLOCK
-
2132-7568058 HOSE, (15.00 Inches), TELL TALE (6")HOSE, (15.00 Inches), TELL TALE (6")
-
2269791 NOZZLE, TELL TALE HOSE TO COWLNOZZLE, TELL TALE HOSE TO COWL
-
2323-90882 SLEEVE, NOZZLESLEEVE, NOZZLE
-
2466849 CLAMP, NOZZLECLAMP, NOZZLE
-
2510-48409 SCREW, (#10-16 x .625) Stainless Steel, CLAMP/SWITCHSCREW, (#10-16 x .625) Stainless Steel, CLAMP/SWITCH
-
2654-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
-27-85489A87 GASKET SETGASKET SET
