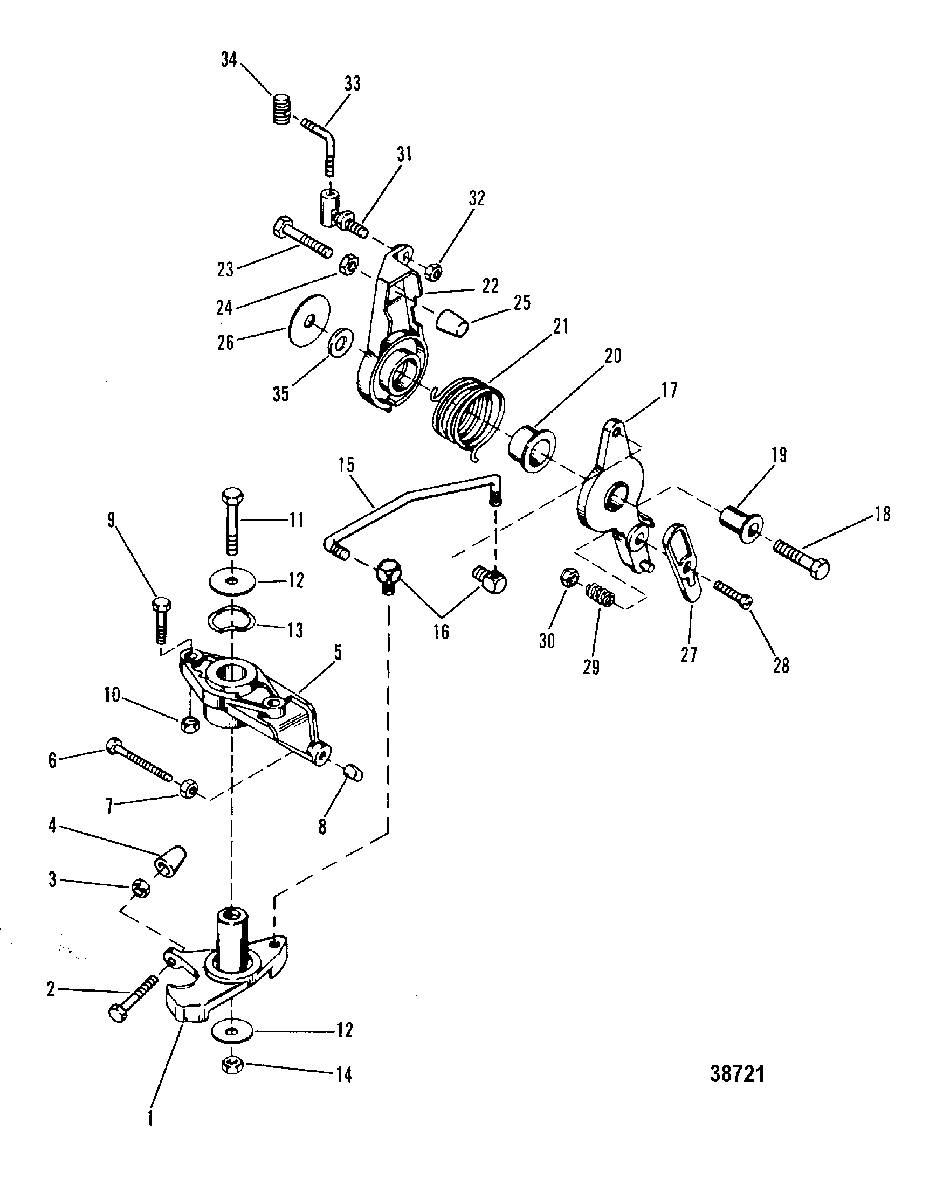

THROTTLE AND SPARK ADVANCE LINKAGE для Mercury - 35 B110789 & Up
-
№АртикулНазвание
-
144405 CAM, Throttle, ACTUATORCAM, Throttle, ACTUATOR
-
210-63102 SCREW, (.250-20 x 1.250), ADJUSITNG-THROTTLE CAMSCREW, (.250-20 x 1.250), ADJUSITNG-THROTTLE CAM
-
311-64015 NUT, (.250-20), JAM-ADJUSTOING SCREWNUT, (.250-20), JAM-ADJUSTOING SCREW
-
426852 CAP, Nylon, NYLON-ADJUSTING SCREWCAP, Nylon, NYLON-ADJUSTING SCREW
-
539522T BRACKET, THROTTLE CONTROL SHAFTBRACKET, THROTTLE CONTROL SHAFT
-
610-64021 SCREW, ADJUSTING (1-7/8")SCREW, ADJUSTING (1-7/8")
-
711-64015 NUT, (.250-20), JAM-ADJUSTING SCREWNUT, (.250-20), JAM-ADJUSTING SCREW
-
826852 CAP, Nylon, ADJUSTING SCREWCAP, Nylon, ADJUSTING SCREW
-
910-20639 SCREW, (.312-24 x 1.12)SCREW, (.312-24 x 1.12)
-
1011-29250 NUT, (.312-24), THROTTLE CONTROL BRACKET SCREWNUT, (.312-24), THROTTLE CONTROL BRACKET SCREW
-
1110-34438 SCREW, (.312-24 x 2.375)SCREW, (.312-24 x 2.375)
-
1212-25893 WASHERWASHER
-
1313-62172 WAVE WASHERWAVE WASHER
-
1411-29250 NUT, (.312-24)NUT, (.312-24)
-
1595044 LINK RODLINK ROD
-
1695045 SWIVEL, LINK RODSWIVEL, LINK ROD
-
1795049 LEVER, THROTTLE CONTROLLEVER, THROTTLE CONTROL
-
1810-818165 SCREW, (.375-16 x 1.75)SCREW, (.375-16 x 1.75)
-
1923-55164 BUSHING, THROTTLE CONTROL LEVER SCREWBUSHING, THROTTLE CONTROL LEVER SCREW
-
2023-55171 BUSHING, THROTTLE CONTROL LEVER SCREWBUSHING, THROTTLE CONTROL LEVER SCREW
-
2124-55162 SPRING, RETURN-SPARK ADVANCE LEVERSPRING, RETURN-SPARK ADVANCE LEVER
-
2295051 LEVER, SPARK ADVANCELEVER, SPARK ADVANCE
-
2310-32627 SCREW, (.190-32 x 1.50), ADJUSTING-ADVANCE LEVERSCREW, (.190-32 x 1.50), ADJUSTING-ADVANCE LEVER
-
2411-68219 NUT, (#10-32) Stainless Steel, JAM-ADJUSTING SCREWNUT, (#10-32) Stainless Steel, JAM-ADJUSTING SCREW
-
2548039 CAP, NYLON-ADJUSTING SCREWCAP, NYLON-ADJUSTING SCREW
-
2612-46765 WASHER, THORTTLE CONTROL LEVER SCREWWASHER, THORTTLE CONTROL LEVER SCREW
-
2739483 LATCHLATCH
-
2810-69026 SCREW, (.250-28 x .880)SCREW, (.250-28 x .880)
-
2924-20099 SPRING, COMPRESSION-LATCH SCREWSPRING, COMPRESSION-LATCH SCREW
-
3011-826709109 NUT, (.250-28), LATCH-SCREWNUT, (.250-28), LATCH-SCREW
-
3162459T BALL JOINT ASSEMBLY, SPARK ADVANCE LEVERBALL JOINT ASSEMBLY, SPARK ADVANCE LEVER
-
3211-46438 NUT, (#10-32), BALL JOINT TO SPARK ADVANCE LEVERNUT, (#10-32), BALL JOINT TO SPARK ADVANCE LEVER
-
3361940 LINK RODLINK ROD
-
3474897T PIVOT, THREADED - TRIGGER PLATE TO LINK RODPIVOT, THREADED - TRIGGER PLATE TO LINK ROD
-
3591963 WASHER, (.390 x .600 x .032)WASHER, (.390 x .600 x .032)
