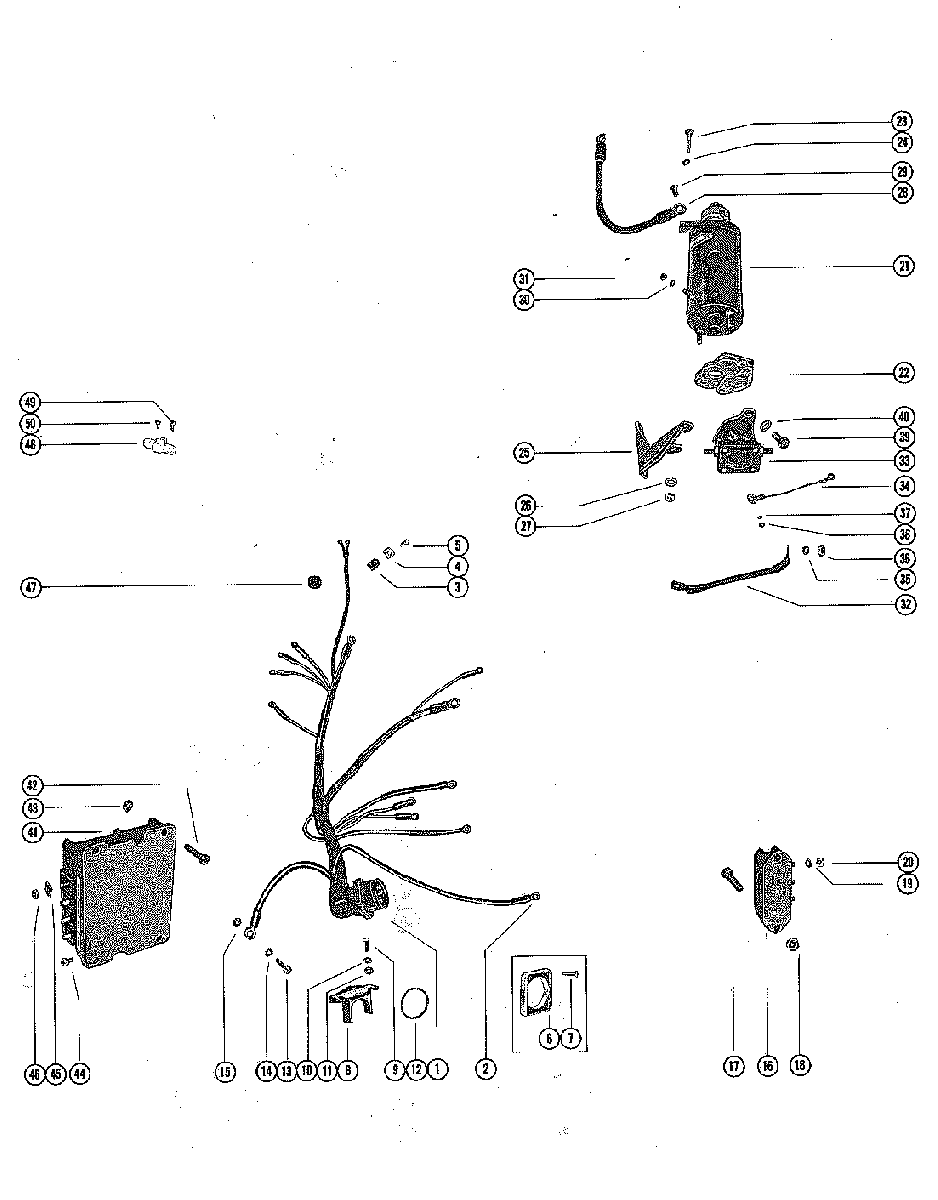

STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES для Mercury - 1000SS 2318586 THRU 2836018

  • №
    Артикул
    Название
  • 1
    48150 WIRING HARNESS, INTERNAL
    WIRING HARNESS, INTERNAL
  • 1
    84-69236A1 WIRING HARNESS, INTERNAL
    WIRING HARNESS, INTERNAL
  • 2
    30050 TERMINAL, HARNESS AND MERCURY SWITCH LEADS
    TERMINAL, HARNESS AND MERCURY SWITCH LEADS
  • 3
    54-648552 CLIP, WIRING HARNESS TO FRONT BRACKET (1/8")
    CLIP, WIRING HARNESS TO FRONT BRACKET (1/8")
  • 4
    8M0084613 "D" WASHER, WIRING HARNESS CLIP SCREW
    "D" WASHER, WIRING HARNESS CLIP SCREW
  • 5
    10-8M0113176 SCREW, WIRING HARNESS CLIP TO FRONT BRACKET (3/8")
    SCREW, WIRING HARNESS CLIP TO FRONT BRACKET (3/8")
  • 6
    26079A2 PLATE, WIRING HARNESS TO BOTTOM COWL
    PLATE, WIRING HARNESS TO BOTTOM COWL
  • 7
    10-45893 SCREW, HARNESS PLATE FASTENING (7/8")
    SCREW, HARNESS PLATE FASTENING (7/8")
  • 8
    54-76368 CLAMP, WIRING HARNESS TO BOTTOM COWL
    CLAMP, WIRING HARNESS TO BOTTOM COWL
  • 9
    10-45862 SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")
    SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")
  • 10
    13-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREW
    LOCKWASHER, WIRING HARNESS CLAMP SCREW
  • 11
    12-847883 WASHER, WIRING HARNESS CLAMP SCREW
    WASHER, WIRING HARNESS CLAMP SCREW
  • 12
    24-28975 SPRING, GARTER - INTERNAL WIRING HARNESS
    SPRING, GARTER - INTERNAL WIRING HARNESS
  • 13
    10-98256 SCREW, GROUND WIRE TO BOTTOM COWL
    SCREW, GROUND WIRE TO BOTTOM COWL
  • 14
    13-25244 LOCKWASHER, GROUND WIRE SCREW
    LOCKWASHER, GROUND WIRE SCREW
  • 15
    13-24669 LOCKWASHER, GROUND WIRE SCREW
    LOCKWASHER, GROUND WIRE SCREW
  • 16
    78614A1 RECTIFIER ASSEMBLY
    RECTIFIER ASSEMBLY
  • 17
    10-64278 SCREW, RECTIFIER TO MOUNTING BRACKET (1")
    SCREW, RECTIFIER TO MOUNTING BRACKET (1")
  • 18
    11-20184 NUT, RECTIFIER MOUNTING SCREW
    NUT, RECTIFIER MOUNTING SCREW
  • 19
    12-45075 WASHER, RECTIFIER STATOR LEAD TERMINAL
    WASHER, RECTIFIER STATOR LEAD TERMINAL
  • 20
    11-45076 NUT, FASTENING - RECTIFIER STATOR LEADS
    NUT, FASTENING - RECTIFIER STATOR LEADS
  • 21
    50-45822A1 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 22
    37331 PLATE, SPACER - STARTER MOTOR
    PLATE, SPACER - STARTER MOTOR
  • 23
    10-22698 SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1-3/4")
    SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1-3/4")
  • 24
    13-26993 LOCKWASHER, STARTER MOTOR FASTENING SCREW
    LOCKWASHER, STARTER MOTOR FASTENING SCREW
  • 25
    38747 BRACKET, SUPPORT - STARTER MOTOR
    BRACKET, SUPPORT - STARTER MOTOR
  • 26
    13-24669 LOCKWASHER, THRU BOLT
    LOCKWASHER, THRU BOLT
  • 27
    11-20088 NUT, BOLT - BRACKET TO STARTER MOTOR
    NUT, BOLT - BRACKET TO STARTER MOTOR
  • 28
    84-93389A12 CABLE, WIRE - STARTER MOTOR TO FRONT SUPPORT BRACKET
    CABLE, WIRE - STARTER MOTOR TO FRONT SUPPORT BRACKET
  • 29
    10-69035 SCREW, HARNESS GROUND LEAD TO STARTER MOTOR (5/8")
    SCREW, HARNESS GROUND LEAD TO STARTER MOTOR (5/8")
  • 30
    13-26992 LOCKWASHER, STARTER MOTOR TERMINAL
    LOCKWASHER, STARTER MOTOR TERMINAL
  • 31
    11-20890 NUT, STARTER MOTOR TERMINAL
    NUT, STARTER MOTOR TERMINAL
  • 32
    48396 CABLE, WIRE - STARTER MOTOR TO SOLENOID
    CABLE, WIRE - STARTER MOTOR TO SOLENOID
  • 33
    25661T1 SOLENOID, STARTER
    SOLENOID, STARTER
  • --
    269011 BUMPER, STARTER SOLENOID (IGNITION COIL BRACKET)
    BUMPER, STARTER SOLENOID (IGNITION COIL BRACKET)
  • 34
    46466 GROUND STRAP ASSEMBLY, STARTER SOLENOID
    GROUND STRAP ASSEMBLY, STARTER SOLENOID
  • 35
    13-26993 LOCKWASHER, SOLENOID TERMINAL (5/16")
    LOCKWASHER, SOLENOID TERMINAL (5/16")
  • 36
    11-22053 NUT, SOLENOID TERMINAL (5/16")
    NUT, SOLENOID TERMINAL (5/16")
  • 37
    13-26996 LOCKWASHER, SOLENOID TERMINAL (#10)
    LOCKWASHER, SOLENOID TERMINAL (#10)
  • 38
    11-68219 NUT, SOLENOID TERMINAL (#10)
    NUT, SOLENOID TERMINAL (#10)
  • 39
    10-69028 SCREW, SOLENOID TO COIL BRACKET
    SCREW, SOLENOID TO COIL BRACKET
  • 40
    13-26992 LOCKWASHER, STARTER SOLENOID FASTENING SCREW
    LOCKWASHER, STARTER SOLENOID FASTENING SCREW
  • 41
    332-2986A21 SWITCH BOX ASSEMBLY
    SWITCH BOX ASSEMBLY
  • 42
    10-64278 SCREW, SWITCH BOX TO FRONT MOUNTING BRACKET (1")
    SCREW, SWITCH BOX TO FRONT MOUNTING BRACKET (1")
  • 42
    10-64279 SCREW, SWITCH BOX TO FRONT MOUNTING BRACKET (1")
    SCREW, SWITCH BOX TO FRONT MOUNTING BRACKET (1")
  • 43
    11-20184 NUT, SWITCH BOX SCREW
    NUT, SWITCH BOX SCREW
  • 44
    10-45218 SCREW< SWITCH BOX (3/8")
    SCREW< SWITCH BOX (3/8")
  • 45
    12-45075 WASHER, SWITCH BOX TERMINAL
    WASHER, SWITCH BOX TERMINAL
  • 46
    11-45076 NUT, SWITCH BOX TERMINAL
    NUT, SWITCH BOX TERMINAL
  • 47
    25-26547 GROMMET, RECTIFIER TO SWITCH BOX WIRE
    GROMMET, RECTIFIER TO SWITCH BOX WIRE
  • 48
    45559 TERMINAL BLOCK, STATOR LEADS
    TERMINAL BLOCK, STATOR LEADS
  • 49
    10-48409 SCREW, TERMINAL BLOCK FASTENING (5/8")
    SCREW, TERMINAL BLOCK FASTENING (5/8")
  • 50
    10-62568 SCREW, STATOR LEADS TO ERMINAL BLOCK (3/8")
    SCREW, STATOR LEADS TO ERMINAL BLOCK (3/8")
