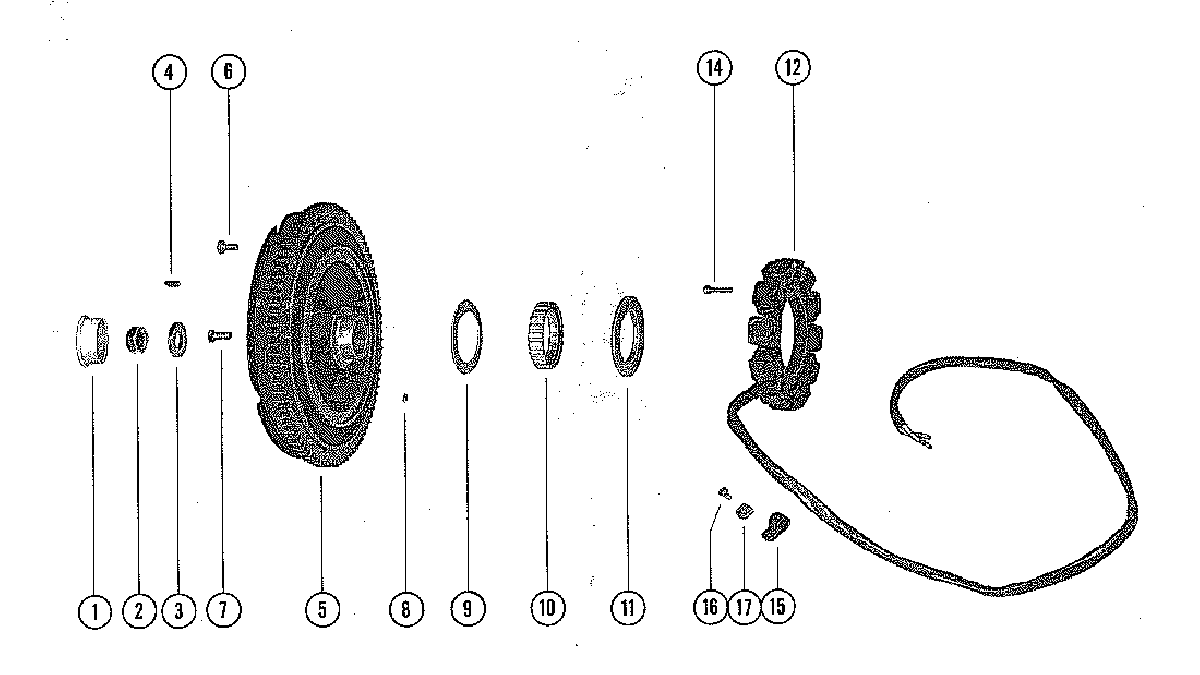

FLYWHEEL ASSEMBLY AND STATOR для Mercury - 1000SS 2318586 THRU 2836018

  • №
    Артикул
    Название
  • 1
    19-45907 PLUB, FLYWHEEL PULLER THREADS
    PLUB, FLYWHEEL PULLER THREADS
  • 2
    11-22339 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 3
    12-33001 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 4
    28-45554 KEY, FLYWHEEL DRIVE
    KEY, FLYWHEEL DRIVE
  • 5
    225-2494A15 FLYWHEEL ASSEMBLY, COMPLETE (USE C-10-32417 SCREW)
    FLYWHEEL ASSEMBLY, COMPLETE (USE C-10-32417 SCREW)
  • 5
    225-2494A15 FLYWHEEL ASSEMBLY, COMPLETE (USE C-10-49009 SCREW)
    FLYWHEEL ASSEMBLY, COMPLETE (USE C-10-49009 SCREW)
  • 6
    10-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL (1/4-28 X 5/8")
    SCREW, FLEXIBLE PLATE TO FLYWHEEL (1/4-28 X 5/8")
  • 6
    10-68997 SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/16-24 X 3/4")
    SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/16-24 X 3/4")
  • 7
    10-32417 SCREW, PLATE AND HUB TO FLEXIBLE PLATE
    SCREW, PLATE AND HUB TO FLEXIBLE PLATE
  • 8
    17-26618 PIN, DOWEL - PULLEY TO FLYWHEEL
    PIN, DOWEL - PULLEY TO FLYWHEEL
  • 9
    29788 FLANGE, FLYWHEEL PULLEY
    FLANGE, FLYWHEEL PULLEY
  • 10
    30306 PULLEY, FLYWHEEL
    PULLEY, FLYWHEEL
  • 11
    29787 HUB, FLYWHEEL PULLEY
    HUB, FLYWHEEL PULLEY
  • 12
    398-3301 STATOR, ALTERNATOR
    SERIAL 00000000-02682097
    STATOR, ALTERNATOR
    SERIAL 00000000-02682097
  • 12
    398-4793 STATOR, ALTERNATOR
    SERIAL 02682098-09999999
    STATOR, ALTERNATOR
    SERIAL 02682098-09999999
  • 14
    10-57021 SCREW, STATOR TO UPPER END CAP (7/8")
    SCREW, STATOR TO UPPER END CAP (7/8")
  • 15
    54-22875 CLIP, STATOR LEAD FASTEING (7/16")
    CLIP, STATOR LEAD FASTEING (7/16")
  • 16
    10-62568 SCREW, STATOR LEAD CLIP (#10 SHEET METAL)
    SCREW, STATOR LEAD CLIP (#10 SHEET METAL)
  • 16
    10-69079 SCREW, STATOR LEAD CLIP (7/16")
    SCREW, STATOR LEAD CLIP (7/16")
  • 15
    54-26550 CLIP, STATOR?WIRING HARNESS LEADS FASTENING (5/16")
    CLIP, STATOR?WIRING HARNESS LEADS FASTENING (5/16")
  • 16
    10-37655 SCREW, STATOR LEAD CLIP FASTENING (10-32 X 1/2")
    SCREW, STATOR LEAD CLIP FASTENING (10-32 X 1/2")
  • 17
    8M0084613 "D" WASHER, CLIP FASTENING SCREW
    "D" WASHER, CLIP FASTENING SCREW
