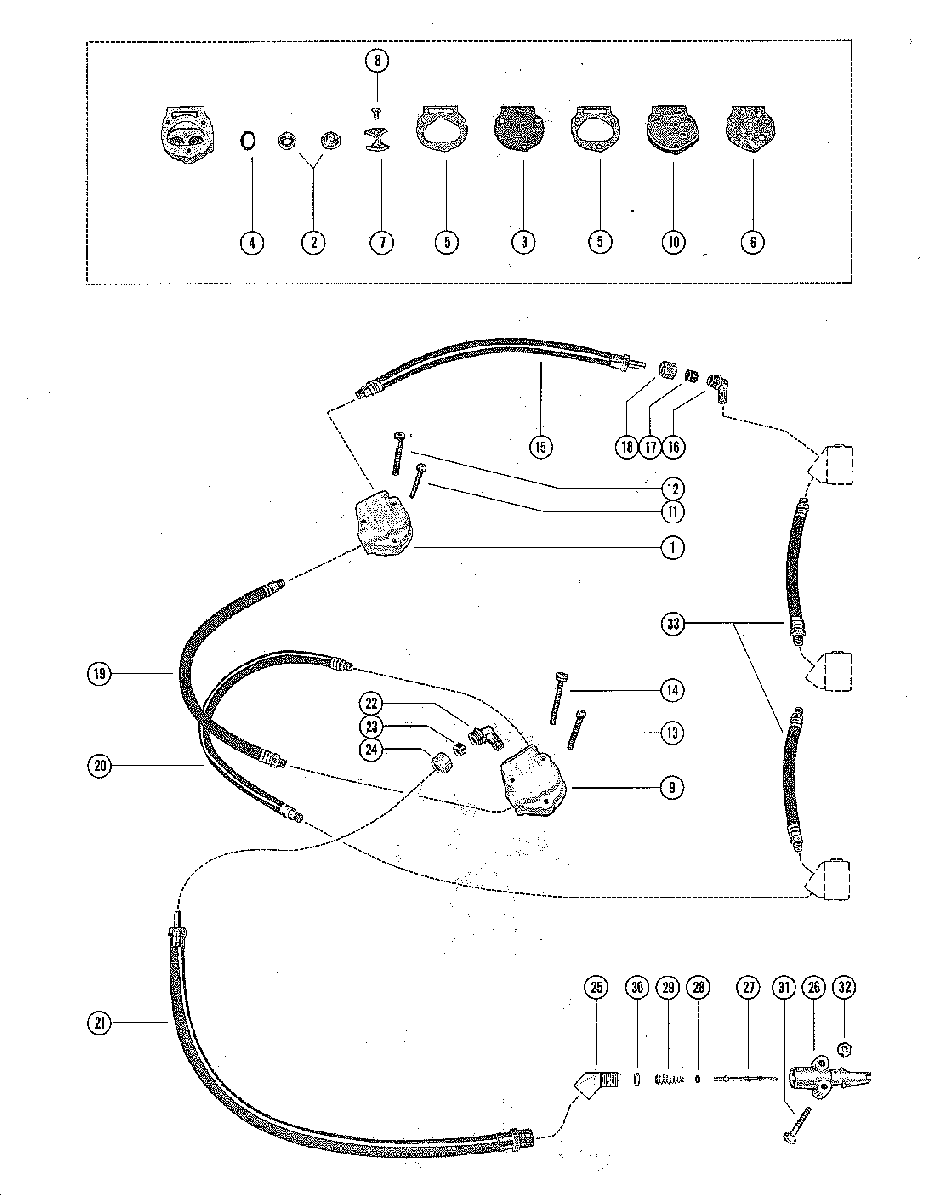

FUEL PUMP AND FUEL LINE ASSEMBLY для Mercury - 1000SS 2318586 THRU 2836018
-
№АртикулНазвание
-
130269A2 FUEL PUMP ASSEMBLY - UPPERFUEL PUMP ASSEMBLY - UPPER
-
156677A6 FUEL PUMP ASSEMBLY - UPPERFUEL PUMP ASSEMBLY - UPPER
-
221-30430A1 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
323014A1 DIAPHRAGM KITDIAPHRAGM KIT
-
490-8M0143356 GASKET, CHECK VALVE TO HOUSINGGASKET, CHECK VALVE TO HOUSING
-
590-8M0143356 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
690-8M0143356 GASKET, FUEL PUMP COVERGASKET, FUEL PUMP COVER
-
723004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
810-43725 SCREW, RETAINER TO HOUSINGSCREW, RETAINER TO HOUSING
-
930461A2 FUEL PUMP ASSEMBLY - LOWERFUEL PUMP ASSEMBLY - LOWER
-
221-30430A1 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
323014A1 DIAPHRAGM KITDIAPHRAGM KIT
-
490-8M0143356 GASKET, CHECK VALVE TTO HOUSINGGASKET, CHECK VALVE TTO HOUSING
-
590-8M0143356 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
690-8M0143356 GASKET, FUEL PUMP COVERGASKET, FUEL PUMP COVER
-
723004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
810-43725 SCREW, RETAINER TO HOUSINGSCREW, RETAINER TO HOUSING
-
1030275 COVER, FUEL PUMPCOVER, FUEL PUMP
-
1110-29878 SCREW, FUEL PUMP MOUNTING (1-1/2") - UPPER PUMPSCREW, FUEL PUMP MOUNTING (1-1/2") - UPPER PUMP
-
1210-30274 SCREW, FUEL PUMP MOUNTING (1-3/4") - UPPER PUMPSCREW, FUEL PUMP MOUNTING (1-3/4") - UPPER PUMP
-
1110-73013 SCREW, FUEL PUMP MOUNTING (1-1/2") - UPPER PUMPSCREW, FUEL PUMP MOUNTING (1-1/2") - UPPER PUMP
-
1210-30273 SCREW, FUEL PUMP MOUNTING (1-7/8") - UPPER PUMPSCREW, FUEL PUMP MOUNTING (1-7/8") - UPPER PUMP
-
1310-73013 SCREW, FUEL PUMP MOUNTING (1-1/2") - LOWER PUMPSCREW, FUEL PUMP MOUNTING (1-1/2") - LOWER PUMP
-
1410-30273 SCREW, FUEL PUMP MOUNTING (1-7/8") - LOWER PUMPSCREW, FUEL PUMP MOUNTING (1-7/8") - LOWER PUMP
-
1532-32256A1 FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (9-7/8")FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (9-7/8")
-
1622-30174 ELBOW, UPPER CARBURETOR STRAINER COVERELBOW, UPPER CARBURETOR STRAINER COVER
-
1722-30175 SLEEVE, CARBURETOR STRAINER COVER ELBOWSLEEVE, CARBURETOR STRAINER COVER ELBOW
-
1822-30177 NUT, UPPER CARBURETOR STRAINER COVER ELBOWNUT, UPPER CARBURETOR STRAINER COVER ELBOW
-
1932-31552A1 FUEL LINE ASSEMBLY, PUMP TO PUMP (12-3/8")FUEL LINE ASSEMBLY, PUMP TO PUMP (12-3/8")
-
2032-31553A1 FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (19-3/4")FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (19-3/4")
-
2132-30176 FUEL LINE, ADAPTOR TO LOWER FUEL PUMP (18")FUEL LINE, ADAPTOR TO LOWER FUEL PUMP (18")
-
2222-30174 ELBOW, LOWER FUEL PUMP INLETELBOW, LOWER FUEL PUMP INLET
-
2322-30175 SLEEVE, FUEL PUMP INLET ELBOWSLEEVE, FUEL PUMP INLET ELBOW
-
2422-30177 NUT, FUEL PUMP INLET ELBOWNUT, FUEL PUMP INLET ELBOW
-
2522-37682 ELBOW, FUEL LINE TO ADAPTORELBOW, FUEL LINE TO ADAPTOR
-
2630186 ADAPTOR, CHECK UNIT (FUEL LINE)ADAPTOR, CHECK UNIT (FUEL LINE)
-
2730185Q3 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
2825-16524 "O" RING, ADAPTOR STEM"O" RING, ADAPTOR STEM
-
2924-30189 SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
3030188 CUP WASHER, ADAPTORCUP WASHER, ADAPTOR
-
3110-69029 SCREW, ADAPTOR TO BOTTOM COWL (1-3/4")SCREW, ADAPTOR TO BOTTOM COWL (1-3/4")
-
3110-69029 SCREW, ADAPTOR TO BOTTOM COWL (1-3/4")SCREW, ADAPTOR TO BOTTOM COWL (1-3/4")
-
3110-37561 SCREW, ADAPTOR TO BOTTOM COWL (2-1/2")SCREW, ADAPTOR TO BOTTOM COWL (2-1/2")
-
3211-20184 NUT, ADAPTOR FASTENING SCREWNUT, ADAPTOR FASTENING SCREW
-
3332-31550A1 FUEL LINE ASSEMBLY, CARBURETOR (6")FUEL LINE ASSEMBLY, CARBURETOR (6")
