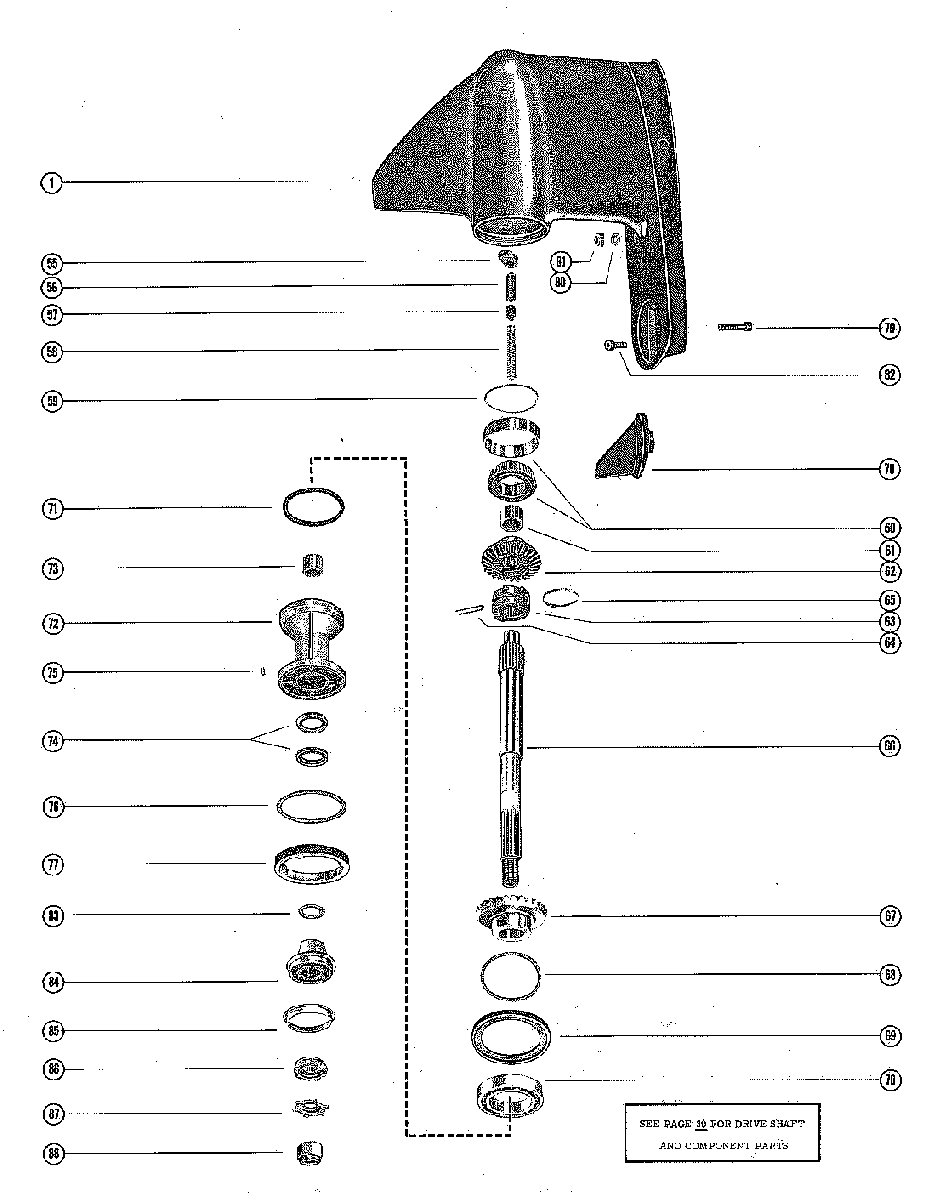

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercury - 1000SS 2318586 THRU 2836018
-
№АртикулНазвание
-
-1623-3912A8 GEAR HOUSING ASSEMBLY, COMPLETE (SHOFT SHAFT)-(SEE NOTE BELOW)GEAR HOUSING ASSEMBLY, COMPLETE (SHOFT SHAFT)-(SEE NOTE BELOW)
-
11623-3912A9 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)-(SEE NOTE BELOW)GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)-(SEE NOTE BELOW)
-
-1623-3912A8 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)-(SEE NOTE BELOW)GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)-(SEE NOTE BELOW)
-
-1623-3912A9 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)-(SEE NOTE BELOW)GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)-(SEE NOTE BELOW)
-
11623-5244A14 GEAR HOUSING ASSEMBLY SEE PAGE 30 FOR PARTS BREAKDOWNGEAR HOUSING ASSEMBLY SEE PAGE 30 FOR PARTS BREAKDOWN
-
11623-5244A14 GEAR HOUSING ASSEMBLY SEE PAGE 30 FOR PARTS BREAKDOWNGEAR HOUSING ASSEMBLY SEE PAGE 30 FOR PARTS BREAKDOWN
-
55760394 CAM, SHIFT
SERIAL 00000000-02573511CAM, SHIFT
SERIAL 00000000-02573511 -
55760394 CAM, SHIFT
SERIAL 02573512-09999999CAM, SHIFT
SERIAL 02573512-09999999 -
5630625 FOLLOWER, CAMFOLLOWER, CAM
-
5730624 SLIDE, CROSS PINSLIDE, CROSS PIN
-
5824-30622 SPRING, COMPRESSION - CAM FOLLOWERSPRING, COMPRESSION - CAM FOLLOWER
-
5915-30923A1 SHIM, BEARING OUTER RACE TO GEAR HOUSING (.002-3-5-10)SHIM, BEARING OUTER RACE TO GEAR HOUSING (.002-3-5-10)
-
6031-30894A1 TAPERED ROLLWER BEARING ASSEMBLYTAPERED ROLLWER BEARING ASSEMBLY
-
6131-30895T BEARING, ROLLER - FORWARD GEARBEARING, ROLLER - FORWARD GEAR
-
6243-53100A3 FORWARD GEAR ASSEMBLYFORWARD GEAR ASSEMBLY
-
6243-53100A3 FORWARD GEAR ASSEMBLYFORWARD GEAR ASSEMBLY
-
6352-822539T RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
6417-8M0100263 PIN, CROSS - RATCHET TO PROPELLER SHAFTPIN, CROSS - RATCHET TO PROPELLER SHAFT
-
6524-30893 SPRING, RETAINING - CROSS PINSPRING, RETAINING - CROSS PIN
-
6644-47900A2 SHAFT, PROPELLER (COARSE THREAD)SHAFT, PROPELLER (COARSE THREAD)
-
6644-93003 SHAFT, PROPELLER (FINE THREAD)SHAFT, PROPELLER (FINE THREAD)
-
6743-31887 REVERSE GEAR ASSEMBLYREVERSE GEAR ASSEMBLY
-
6815-29955A1 SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)
-
6912-71143A1 WASHER, THRUST - BEARING CARRIER TO GEAR HOUSINGWASHER, THRUST - BEARING CARRIER TO GEAR HOUSING
-
7030-31265 BEARING, BALL - REVERSE GEARBEARING, BALL - REVERSE GEAR
-
7125-29976 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
7231284T1 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
7252132T1 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
7331-30956T BEARING, ROLLER - BEARING CARRIERBEARING, ROLLER - BEARING CARRIER
-
7426-76868 OIL SEAL, BEARING CARRIEROIL SEAL, BEARING CARRIER
-
7528-30281 KEY, LOCATING - BEARING CARRIERKEY, LOCATING - BEARING CARRIER
-
7612-29957 WASHER, GEAR HOUSING COVERWASHER, GEAR HOUSING COVER
-
7752699 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
7614-52700 TAB WASHER, GEAR HOUSING COVERTAB WASHER, GEAR HOUSING COVER
-
7752699 COVER, GEART HOUSINGCOVER, GEART HOUSING
-
7897-31640Q4 TRIM TAB, GEAR HOUSINGTRIM TAB, GEAR HOUSING
-
7910-32470 SCREW, TRIM TAB TO GEAR HOUSING (1-3/4")SCREW, TRIM TAB TO GEAR HOUSING (1-3/4")
-
8012-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
8111-34933 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
8210-34353 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
-
8312-31013 WASHER, THRUST - BEARING CARRIERWASHER, THRUST - BEARING CARRIER
-
8465091Q01 THRUST HUB AND WASHER ASSEMBLY
PART OF A-1623-3486A8 AND A9 GEAR HOUSING ASSEMBLY, COMPLETETHRUST HUB AND WASHER ASSEMBLY
PART OF A-1623-3486A8 AND A9 GEAR HOUSING ASSEMBLY, COMPLETE -
8512-29590 WASHER, CUPPED - THRUST HUB
PART OF A-1623-3486A8 AND A9 GEAR HOUSING ASSEMBLY, COMPLETEWASHER, CUPPED - THRUST HUB
PART OF A-1623-3486A8 AND A9 GEAR HOUSING ASSEMBLY, COMPLETE -
8612-31211Q03 WASHER, SPLINED - PROPELLER NUTWASHER, SPLINED - PROPELLER NUT
-
8714-816629Q TAB WASHER, PROPELLER NUTTAB WASHER, PROPELLER NUT
-
8811-29594 NUT, PROPELLER (COARSE THREAD)NUT, PROPELLER (COARSE THREAD)
-
8811-52707Q1 NUT, PROPELLER (FINE THREAD)NUT, PROPELLER (FINE THREAD)
