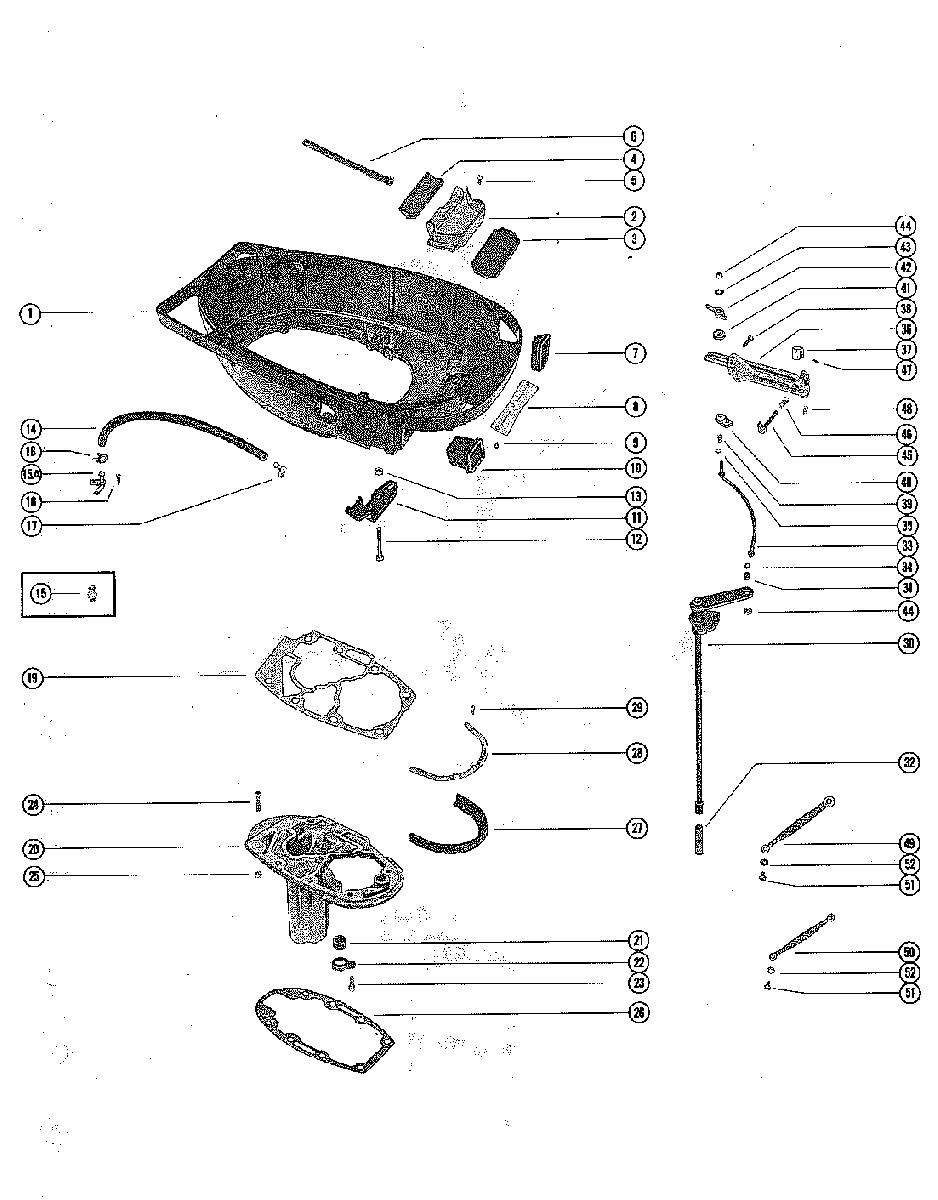

BOTTOM COWL AND SHIFT LINKAGE для Mercury - 1000SS 2318586 THRU 2836018
-
№АртикулНазвание
-
12115-3807 COWL, BOTTOMCOWL, BOTTOM
-
12115-3807 COWL, BOTTOMCOWL, BOTTOM
-
252862A2 DRIP TRAY ASSEMBLY, BOTTOM COWLDRIP TRAY ASSEMBLY, BOTTOM COWL
-
252862A2 DRIP TRAY ASSEMBLY, BOTTOM COWLDRIP TRAY ASSEMBLY, BOTTOM COWL
-
337940 PAD, SOUND - DRIP TRAYPAD, SOUND - DRIP TRAY
-
437903 FLANGE, RUBBER - DRIP TRAYFLANGE, RUBBER - DRIP TRAY
-
510-41228 SCREW, DRIP TRAY TO BOTTOM COWL (1/2")SCREW, DRIP TRAY TO BOTTOM COWL (1/2")
-
632-8M0108355 HOSE, DRIP TRAY TO BOTTOM COWL (8")HOSE, DRIP TRAY TO BOTTOM COWL (8")
-
737638 BOOT, CONTROL CABLES - BOTTOM COWLBOOT, CONTROL CABLES - BOTTOM COWL
-
823760 BAFFLE, BOTTOM COWLBAFFLE, BOTTOM COWL
-
910-21106 SCREW, BAFFLE TO BOTTOM COWL (1/4")SCREW, BAFFLE TO BOTTOM COWL (1/4")
-
910-52867 SCREW, BAFFLE TO BOTTOM COWL (1/4")SCREW, BAFFLE TO BOTTOM COWL (1/4")
-
1037637 BOOT, FUEL CONNECTOR - BOTTOM COWLBOOT, FUEL CONNECTOR - BOTTOM COWL
-
1137445 SUPPORT, WIRING HARNESS - BOTTOM COWLSUPPORT, WIRING HARNESS - BOTTOM COWL
-
1210-69029 SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWLSCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL
-
1210-69029 SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWLSCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL
-
1311-20184 NUT, WIRING HARNESS SUPPORT SCREWNUT, WIRING HARNESS SUPPORT SCREW
-
1311-20184 NUT, WIRING HARNESS SUPPORT SCREWNUT, WIRING HARNESS SUPPORT SCREW
-
1432-8M0108355 HOSE, TELL TTALE - EXHAUST COVER TO BOTTOM COWL (16")HOSE, TELL TTALE - EXHAUST COVER TO BOTTOM COWL (16")
-
1522-291112 CONNECTOR, TELL TALE HOSE TO BOTTOM COWLCONNECTOR, TELL TALE HOSE TO BOTTOM COWL
-
15A52889 NOZZLE, TELL TALE HOSE TO BOTTOM COWLNOZZLE, TELL TALE HOSE TO BOTTOM COWL
-
1610-41228 SCREW, TELL TALE NOZZLE TO BOTTOM COWLSCREW, TELL TALE NOZZLE TO BOTTOM COWL
-
1722-996642 ELLBOW, TELL TALE HOSE TO EXHAUST COVERELLBOW, TELL TALE HOSE TO EXHAUST COVER
-
1854-48123 CLAMP, TELL TALE HOSE TO CONNECTOR AND ELBOWCLAMP, TELL TALE HOSE TO CONNECTOR AND ELBOW
-
1927-47257 GASKET, POWERHEAD TO EXHAUST EXTENSION PLATEGASKET, POWERHEAD TO EXHAUST EXTENSION PLATE
-
2056306A2 PLATE ASSEMBLY, EXHAUST EXTENSION
SERIAL 00000000-02409053PLATE ASSEMBLY, EXHAUST EXTENSION
SERIAL 00000000-02409053 -
2056306A2 PLATE ASSEMBLY, EXHAUST EXTENSION
SERIAL 02409054-09999999PLATE ASSEMBLY, EXHAUST EXTENSION
SERIAL 02409054-09999999 -
2056306A2 PLATE ASSEMBLY, EXHAUST EXTENSIONPLATE ASSEMBLY, EXHAUST EXTENSION
-
2126-38970 SEAL, RUBBER - WATER INLET TUBESEAL, RUBBER - WATER INLET TUBE
-
2238448 RETAINER, WATER TUBE SEALRETAINER, WATER TUBE SEAL
-
2310-69069 SCREW, RETAINER TO EXHAUST EXTENSION PLATE (3/4")SCREW, RETAINER TO EXHAUST EXTENSION PLATE (3/4")
-
2410-56500 SCREW, EXHAUST EXTNSN PLATE TO DRIV SHAFT HOUS (1-1/4")SCREW, EXHAUST EXTNSN PLATE TO DRIV SHAFT HOUS (1-1/4")
-
2410-24226 SCREW, EXHAUST EXTNSN PLATE TO DRIV SHAFT HOUS (1-1/4")SCREW, EXHAUST EXTNSN PLATE TO DRIV SHAFT HOUS (1-1/4")
-
2511-20184 NUT, EXHAUST EXTENSION PLATE SCREWNUT, EXHAUST EXTENSION PLATE SCREW
-
2627-38471 GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSINGGASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
-
2737918 SEAL, EXHAUST EXTENSION PLATESEAL, EXHAUST EXTENSION PLATE
-
2899358 STRIP, RETAINING - EXHAUST EXTENSION PLATE SEALSTRIP, RETAINING - EXHAUST EXTENSION PLATE SEAL
-
2910-37571 SCREW, SEAL AND RETAINING STRIP TO EXTENSION PLATESCREW, SEAL AND RETAINING STRIP TO EXTENSION PLATE
-
3049904A2 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
-
3049905A2 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
-
3049904A2 SHIFT SHAFT ASSEMBLY, UPPER (SHOFT SHAFT)
SERIAL 00000000-02681191SHIFT SHAFT ASSEMBLY, UPPER (SHOFT SHAFT)
SERIAL 00000000-02681191 -
3049905A2 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
SERIAL 00000000-02681191SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
SERIAL 00000000-02681191 -
3060304A55 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
SERIAL 02681192-09999999SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
SERIAL 02681192-09999999 -
3060304A54 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
SERIAL 02681192-09999999SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
SERIAL 02681192-09999999 -
3123-26600 BUSHING, SHIFT SHAFT
SERIAL 02681192-09999999BUSHING, SHIFT SHAFT
SERIAL 02681192-09999999 -
3293960A1 COUPLING, SHIFT SHAFT
SERIAL 02681192-09999999COUPLING, SHIFT SHAFT
SERIAL 02681192-09999999 -
3373402 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
3412-24664 WASHER, LINK RODWASHER, LINK ROD
-
3513-29720 WASHER, WAVE - LINK RODWASHER, WAVE - LINK ROD
-
3652732A6 BRACKET ASSEMBLY, ANCHOR CONTROL CABLESBRACKET ASSEMBLY, ANCHOR CONTROL CABLES
-
3738802 CAP, BRASS BARREL TO THROTTLE CABLECAP, BRASS BARREL TO THROTTLE CABLE
-
3749935 CAP, BRASS BARREL TO THROTTLE CABLECAP, BRASS BARREL TO THROTTLE CABLE
-
3810-35386 SCREW, ANCHOR BRACKET TO CYLINDRE BLOCKSCREW, ANCHOR BRACKET TO CYLINDRE BLOCK
-
3924-20099 SPRING, LINK ROD TO GUIDE BLOCKSPRING, LINK ROD TO GUIDE BLOCK
-
4037896 GUIDE BLOCK, LINK RODGUIDE BLOCK, LINK ROD
-
4112-37905 WASHER, NYLON - LINK RODWASHER, NYLON - LINK ROD
-
4152100 WARE PLATE, LINK ROD (NOT AS SHOWN)WARE PLATE, LINK ROD (NOT AS SHOWN)
-
428M0036768 LATCH, CONTROL CABLE FASTENING - ANCHOR BRACKETLATCH, CONTROL CABLE FASTENING - ANCHOR BRACKET
-
4312-69056 WASHER, PLAIN - LINK RODWASHER, PLAIN - LINK ROD
-
4411-826709109 NUT, LINK RODNUT, LINK ROD
-
4549932A1 LEVER, CONTROL CABLE LOCKING - ANCHOR BRACKET
EARLY STYLELEVER, CONTROL CABLE LOCKING - ANCHOR BRACKET
EARLY STYLE -
4549932A1 LEVER ASSEMBLY, CONTROL CABLE LOCKING - ANCHOR BRACKET
LATE STYLELEVER ASSEMBLY, CONTROL CABLE LOCKING - ANCHOR BRACKET
LATE STYLE -
4624-37911 SPRING, CONTROL CABLE LOCKING LEVERSPRING, CONTROL CABLE LOCKING LEVER
-
4717-239281 PIN, ROLL - CONTROL CABLE LOCKING LEVERPIN, ROLL - CONTROL CABLE LOCKING LEVER
-
4824-38472 SPRING, CONTROL CABLE TENSION - ANCHOR BRACKETSPRING, CONTROL CABLE TENSION - ANCHOR BRACKET
-
4946933A1 GROUND STRAP ASSY, CRANKCASE TO BOTTOM COWL (3-5/8")GROUND STRAP ASSY, CRANKCASE TO BOTTOM COWL (3-5/8")
-
5046933A2 GRAND STRAP ASSY, DRIV SHAFT HOUS-BOTTOM COWL (3-3/8")GRAND STRAP ASSY, DRIV SHAFT HOUS-BOTTOM COWL (3-3/8")
-
5110-62568 SCREW, GROUND STRAP FASTENINGSCREW, GROUND STRAP FASTENING
-
5213-69432 LOCKWASHER, GROUND STRAP SCREWLOCKWASHER, GROUND STRAP SCREW
