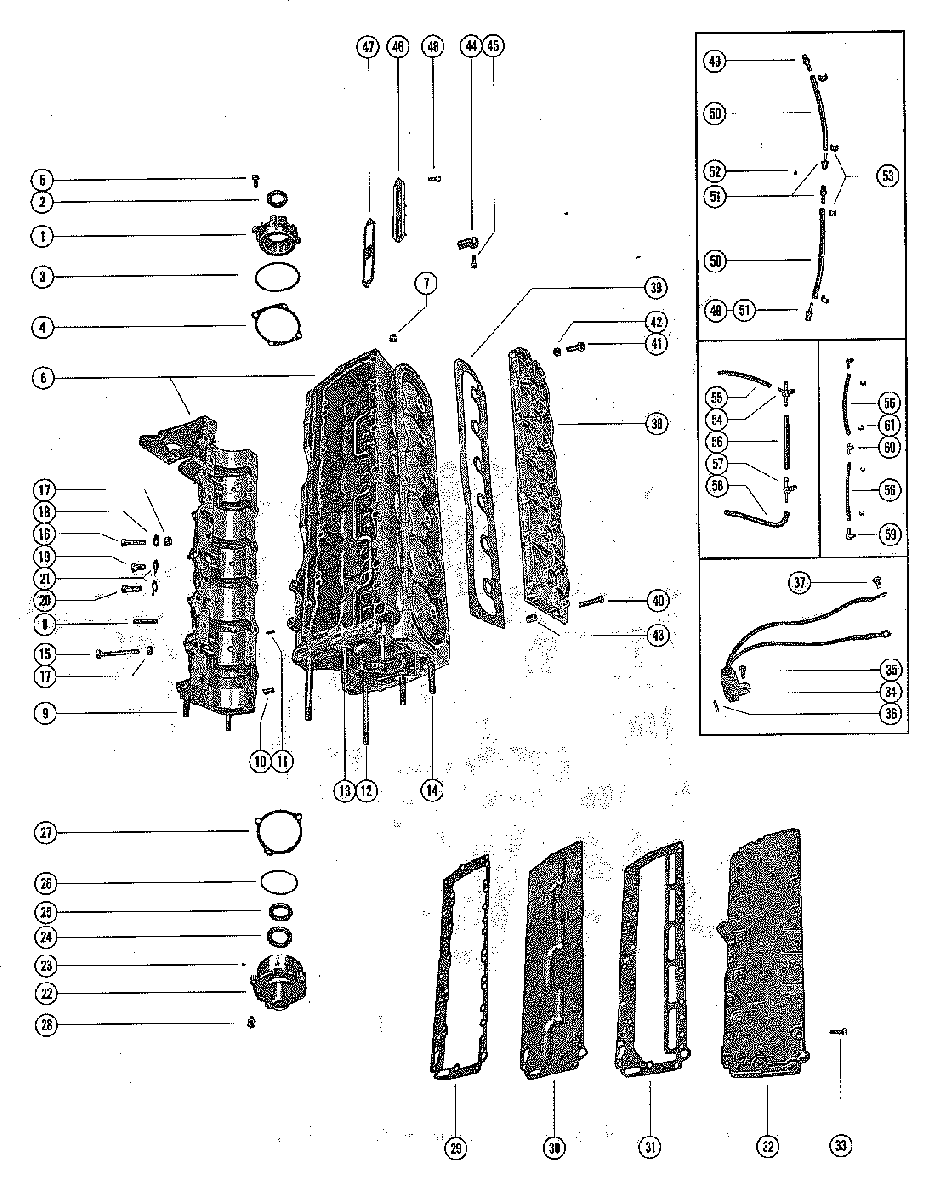

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 1000SS 2318586 THRU 2836018

  • №
    Артикул
    Название
  • 1
    1128-3367A1 END CAP ASSEMBLY, UPPER
    END CAP ASSEMBLY, UPPER
  • 2
    26-41953 OIL SEAL
    OIL SEAL
  • 3
    25-31305 "O" RING
    "O" RING
  • 4
    15-31283A1 SHIM, END CAP TO CRANKCASE (.002-3-5-10)
    SHIM, END CAP TO CRANKCASE (.002-3-5-10)
  • 5
    10-30225 SCREW, END CAP MOUNTING (1")
    SCREW, END CAP MOUNTING (1")
  • 6
    836-3260A3 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 7
    22-328022 PLUG, PIPE - WATER PRESSURE HOSE
    PLUG, PIPE - WATER PRESSURE HOSE
  • 8
    16-64936 STUD, CARBURETOR MOUNTING
    STUD, CARBURETOR MOUNTING
  • 9
    16-64281 STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1-7/8")
    STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1-7/8")
  • 10
    17-43044 PIN, DOWEL - CRANKCASE TO CYLINDER BLOCK
    PIN, DOWEL - CRANKCASE TO CYLINDER BLOCK
  • 11
    17-20032 PIN, DOWEL - CYLINDER BLOCK TO MAIN BEARING
    PIN, DOWEL - CYLINDER BLOCK TO MAIN BEARING
  • 12
    16-26134 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (4-1/16")
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (4-1/16")
  • 13
    16-376531 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2-11/16")
    SERIAL 02409053-09999999
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2-11/16")
    SERIAL 02409053-09999999
  • 14
    16-26135 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2-5/16")
    SERIAL 02409053-09999999
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2-5/16")
    SERIAL 02409053-09999999
  • 14
    16-48770 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (3-9/16") 2409054
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (3-9/16") 2409054
  • 15
    10-29877 SCREW, CRANKCASE TO CYLINDER BLOCK (3-1/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK (3-1/4")
  • 15
    10-26132 SCREW, CRANKCASE TO CYLINDER BLOCK (2-1/2")
    SCREW, CRANKCASE TO CYLINDER BLOCK (2-1/2")
  • 16
    10-69091 SCREW, CRANKCASE TO CYLINDER BLOCK (1-5/8")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1-5/8")
  • 16
    10-32293 SCREW, CRANKCASE TO CYLINDER BLOCK (1-3/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1-3/4")
  • --
    12-26825 WASHER, CRANKCASE TO CYLINDER BLOCK SCREW
    WASHER, CRANKCASE TO CYLINDER BLOCK SCREW
  • 16
    10-78841 SCREW, CRANKCASE TO CYLINDER BLOCK (1-1/2")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1-1/2")
  • 16
    10-21449 SCREW, CRANKCASE TO CYLINDER BLOCK (2")
    SCREW, CRANKCASE TO CYLINDER BLOCK (2")
  • 17
    11-29250 NUT, CRANKCASE FASTENING SCREW
    NUT, CRANKCASE FASTENING SCREW
  • 18
    53-78201 BRACKET, CLAMP EXTENSION
    BRACKET, CLAMP EXTENSION
  • 19
    10-36351 SCREW, MAIN BEARING LOCKING (5/8")
    SCREW, MAIN BEARING LOCKING (5/8")
  • 20
    10-20359 SCREW, CENTER MAIN BEARING LOCKING (1")
    SCREW, CENTER MAIN BEARING LOCKING (1")
  • 21
    14-20091 TAB WASHER, BEARING LOCKING SCREW
    TAB WASHER, BEARING LOCKING SCREW
  • 22
    1126-3369A1 END CAP ASSEMBLY, LOWER
    END CAP ASSEMBLY, LOWER
  • 22
    1126-3369A2 END CAP ASSEMBLY, LOWER
    END CAP ASSEMBLY, LOWER
  • 23
    21-28481A1 CHECK VALVE ASSEMBLY, END CAP
    CHECK VALVE ASSEMBLY, END CAP
  • 24
    26-29478 OIL SEAL, LOWER
    OIL SEAL, LOWER
  • 25
    26-41953 OIL SEAL, UPPER
    OIL SEAL, UPPER
  • 25
    26-41953 OIL SEAL, UPPER
    OIL SEAL, UPPER
  • 26
    25-20081 "O" RING
    "O" RING
  • 27
    15-20085A1 SHIM, END CAP TO CRANKCASE (.002-3-5-10)
    SHIM, END CAP TO CRANKCASE (.002-3-5-10)
  • 28
    10-30225 SCREW, END CAP MOUNTING (1")
    SCREW, END CAP MOUNTING (1")
  • 29
    27-37740 GASKET, CYLINDER BLOCK TO BAFFLE PLATE
    GASKET, CYLINDER BLOCK TO BAFFLE PLATE
  • 30
    47660 PLATE, BAFFLE - EXHAUST MANIFOLD
    PLATE, BAFFLE - EXHAUST MANIFOLD
  • 31
    27-37741 GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVER
    GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVER
  • 32
    37674 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 33
    10-38837 SCREW, MANIFOLD COVER MOUNTING
    SCREW, MANIFOLD COVER MOUNTING
  • 34
    58124A4 SWITCH, MERCURY
    SWITCH, MERCURY
  • 35
    10-28708 SCREW, MERCURY SWITCH LEAD (3/8")
    SCREW, MERCURY SWITCH LEAD (3/8")
  • 36
    17-30496 PIN, ROLL - MERCURY SWITCH
    PIN, ROLL - MERCURY SWITCH
  • 37
    10-8M0113176 SCREW, MERCURY SWITCH LEAND (3/8")
    SCREW, MERCURY SWITCH LEAND (3/8")
  • 38
    1011-2484 COVER, CYLINDER BLOCK
    COVER, CYLINDER BLOCK
  • 39
    27-31798 GASKET, CYLINDER BLOCK COVER
    GASKET, CYLINDER BLOCK COVER
  • 40
    10-24644 SCREW, CYLINDER BLOCK COVER MOUNTING (1-3/8")
    SCREW, CYLINDER BLOCK COVER MOUNTING (1-3/8")
  • 41
    10-21091 SCREW, CYLINDER BLOCK COVER MOUNTING (1-1/8")
    SCREW, CYLINDER BLOCK COVER MOUNTING (1-1/8")
  • 42
    11-20184 NUT, COVER MOUNTING SCREW
    NUT, COVER MOUNTING SCREW
  • 43
    32-8M0108355 TUBE, RUBBER SPACER - LOWER PORT NUT
    TUBE, RUBBER SPACER - LOWER PORT NUT
  • 44
    37440 BRACKET, MOUNT SUPPORT - CYLINDER BLOCK
    BRACKET, MOUNT SUPPORT - CYLINDER BLOCK
  • 45
    10-35386 SCREW, BRACKET TO CYLINDER BLOCK (1")
    SCREW, BRACKET TO CYLINDER BLOCK (1")
  • 46
    31288 COVER, TRANSFER PORT
    COVER, TRANSFER PORT
  • 47
    27-31304 GASKET, TRANSFER PORT COVER
    GASKET, TRANSFER PORT COVER
  • 48
    10-20540 SCREW, TRANSFER PORT COVER MOUNTING (5/8")
    SCREW, TRANSFER PORT COVER MOUNTING (5/8")
  • 48
    10-28635 SCREW, TRANSFER PORT COVER MOUNTING (5/8")
    SCREW, TRANSFER PORT COVER MOUNTING (5/8")
  • 49
    22-67902 CONNECTOR, CYLINDER BLEED HOSE - LOWER AND UPPER
    CONNECTOR, CYLINDER BLEED HOSE - LOWER AND UPPER
  • 49
    22-67902 CONNECTOR, CYLINDER BLEED HOSE - LOWER AND UPPER
    CONNECTOR, CYLINDER BLEED HOSE - LOWER AND UPPER
  • 50
    32-9912688 HOSE, UPPER AND LOWER CYLINDER BLEED (9-1/2")
    HOSE, UPPER AND LOWER CYLINDER BLEED (9-1/2")
  • 50
    32-9912688 HOSE, UPPER AND LOWER CYLINDER BLEED (9-1/2")
    HOSE, UPPER AND LOWER CYLINDER BLEED (9-1/2")
  • 51
    22-62365A1 CHECK VALVE ASSEMBLY, BLEED HOSE
    CHECK VALVE ASSEMBLY, BLEED HOSE
  • 51
    22-62365A1 CHECK VALVE ASSEMBLY, BLEED HOSE
    CHECK VALVE ASSEMBLY, BLEED HOSE
  • 52
    21-28481A1 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 52
    21-28481A1 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 53
    54-20387 CLAMP, BLEED HOSE TO CONNECTOR
    CLAMP, BLEED HOSE TO CONNECTOR
  • 53
    54-20387 CLAMP, BLEED HOSE TO CONNECTOR
    CLAMP, BLEED HOSE TO CONNECTOR
  • 54
    22-432881 TEE, BLEED HOSE TO CYLINDER BLOCK - CENTER
    TEE, BLEED HOSE TO CYLINDER BLOCK - CENTER
  • 55
    32-9912688 HOSE ASSEMBLY, CENTER CYLINDER BLEED (7")
    HOSE ASSEMBLY, CENTER CYLINDER BLEED (7")
  • 56
    32-8M0108355 TUBE, BALANCE - MAIN BEARING
    TUBE, BALANCE - MAIN BEARING
  • 57
    22-53491 TEE, BLEED HOSE TO CYLINDER BLOCK - LOWER
    TEE, BLEED HOSE TO CYLINDER BLOCK - LOWER
  • 58
    32-9912688 HOSE ASSEMBLY, LOWER CYLINDER BLEED (6-1/2")
    HOSE ASSEMBLY, LOWER CYLINDER BLEED (6-1/2")
  • 59
    22-20781 ELBOW, BALANCE TUBE TO MAIN BEARING SCREW
    ELBOW, BALANCE TUBE TO MAIN BEARING SCREW
  • 59
    22-20781 ELBOW, BALANCE TUBE TO MAIN BEARING SCREW
    ELBOW, BALANCE TUBE TO MAIN BEARING SCREW
  • 60
    22-8585531 TEE, BALANCE TUBE TO MAIN BEARING SCREW
    TEE, BALANCE TUBE TO MAIN BEARING SCREW
  • 61
    54-20386 CLAMP, BALANCE TUBE TO ELBOW AND TEE
    CLAMP, BALANCE TUBE TO ELBOW AND TEE
