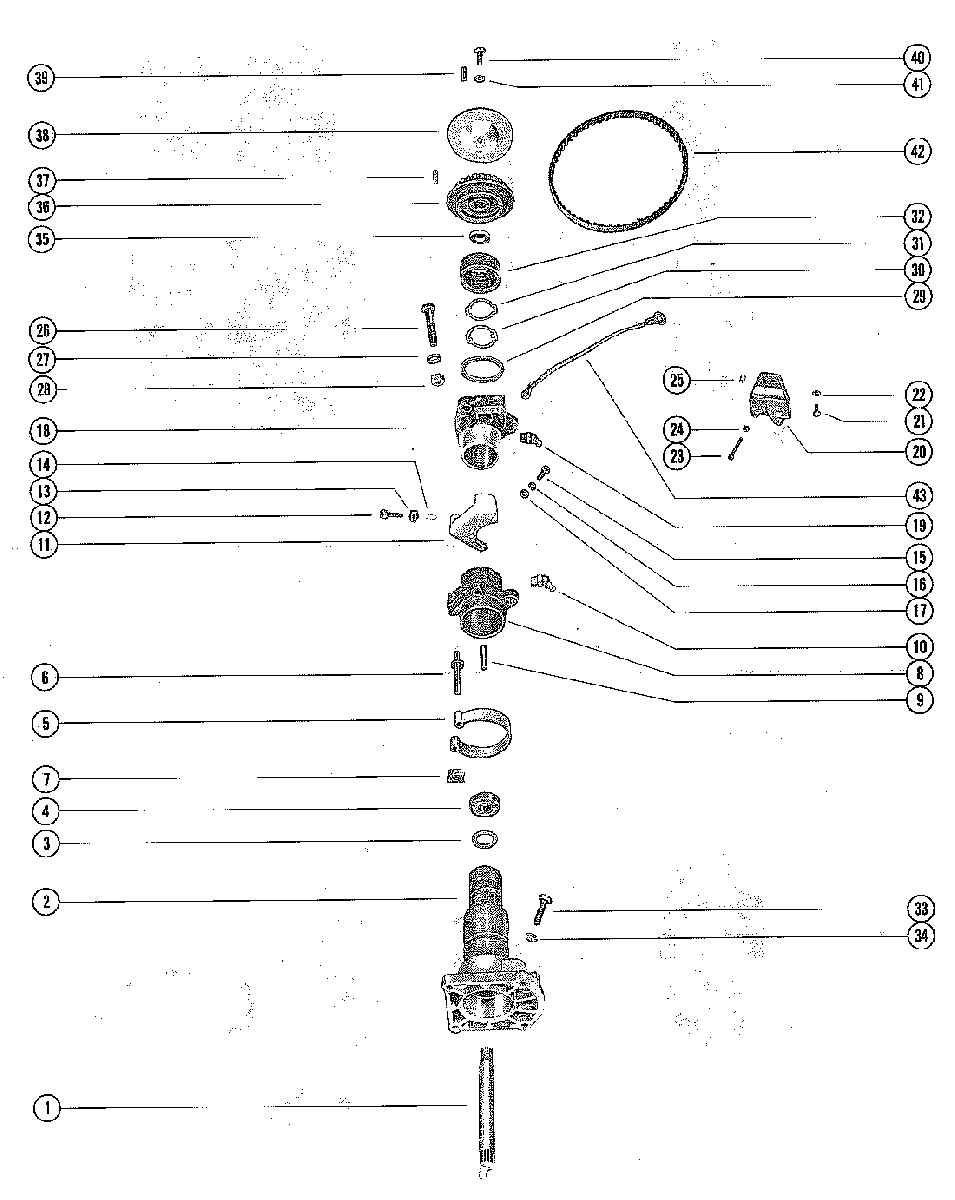

DISTRIBUTOR ADAPTOR AND PILOT ASSEMBLY для Mercury - 1000SS 2318586 THRU 2836018
-
№АртикулНазвание
-
145-47950 DRIVE SHAFT, DISTRIBUTORDRIVE SHAFT, DISTRIBUTOR
-
245960A1 PILOT ASSEMBLY, DISTRIBUTORPILOT ASSEMBLY, DISTRIBUTOR
-
312-46246 WASHER, DISTRIBUTOR TO PILOTWASHER, DISTRIBUTOR TO PILOT
-
430-20066 BEARING, BALL - DISTRIBUTOR PILOTBEARING, BALL - DISTRIBUTOR PILOT
-
524-29275 SPRING, HORSESHOESPRING, HORSESHOE
-
617-27962 PIN, SPRING TERMINALPIN, SPRING TERMINAL
-
732197 STOP, SPRING TERMINAL PINSTOP, SPRING TERMINAL PIN
-
855804A1 ECONOMIZER COLLAR AND PIN ASSEMBLYECONOMIZER COLLAR AND PIN ASSEMBLY
-
917-27961 PIN, SPRING RETAINERPIN, SPRING RETAINER
-
1022-25094 FITTING, GREASE - ECONOMIZER COLLARFITTING, GREASE - ECONOMIZER COLLAR
-
1148321 ACTUATOR, THROTTLEACTUATOR, THROTTLE
-
1210-23015 SCREW, ADJUSTING - THROTTLE ACTUATOR (1")SCREW, ADJUSTING - THROTTLE ACTUATOR (1")
-
1311-68219 NUT< THROTTLE ACTUATOR ADJUSTING SCREWNUT< THROTTLE ACTUATOR ADJUSTING SCREW
-
1448039 CAP, THROTTLE ACTUATOR ADJUSTING SCREWCAP, THROTTLE ACTUATOR ADJUSTING SCREW
-
1510-69022 SCREW, THROTTLE ACTUATOR TO SECTOR GEAR (1/2")SCREW, THROTTLE ACTUATOR TO SECTOR GEAR (1/2")
-
1613-26996 LOCKWASHER, THROTTLE ACTUATOR FASTENING SCREWLOCKWASHER, THROTTLE ACTUATOR FASTENING SCREW
-
1712-847883 WASHER, THROTTLE ACTUATOR FASTENING SCREWWASHER, THROTTLE ACTUATOR FASTENING SCREW
-
1830645 ADAPTOR, DISTRIBUTORADAPTOR, DISTRIBUTOR
-
1922-25094 FITTING, GREASE - ADAPTORFITTING, GREASE - ADAPTOR
-
2055805 BRACKET, STOPBRACKET, STOP
-
2110-28636 SCREW< STOP BRACKET TO DISTRIBUTOR ADAPTOR (2")SCREW< STOP BRACKET TO DISTRIBUTOR ADAPTOR (2")
-
2212-20533 WASHER, STOP BRACKET FASTENING SCREWWASHER, STOP BRACKET FASTENING SCREW
-
2310-24228 SCREW, STOP BRACKET ADJUSTING (1-7/8')SCREW, STOP BRACKET ADJUSTING (1-7/8')
-
2411-20890 NUT, STOP BRACKET ADJUSTING SCREWNUT, STOP BRACKET ADJUSTING SCREW
-
2526852 CAP, NYLON - ADJUSTING SCREWCAP, NYLON - ADJUSTING SCREW
-
2610-78841 SCREW, ADAPTOR AND PILOT TO CRANKCASE FLANGE (1 1/2")SCREW, ADAPTOR AND PILOT TO CRANKCASE FLANGE (1 1/2")
-
2712-20084 WASHER, ADAPTOR AND PILOT FASTENING SCREWWASHER, ADAPTOR AND PILOT FASTENING SCREW
-
2811-22053 NUT, ADAPTOR AND PILOT FASTENING SCREWNUT, ADAPTOR AND PILOT FASTENING SCREW
-
2912-27939 WASHER, THRUST - DISTRIBUTOR PILOTWASHER, THRUST - DISTRIBUTOR PILOT
-
3014-27960 TAB WASHER, CAP LOCKINGTAB WASHER, CAP LOCKING
-
3113-27959 WASHER, WAVE - TAB WASHER TENSIONWASHER, WAVE - TAB WASHER TENSION
-
3227955 CAP, ADAPTOR AND PILOT FASTENINGCAP, ADAPTOR AND PILOT FASTENING
-
3310-28667 SCREW, ADAPTOR AND PILOT TO DISTRIBUTOR (1-1/8")SCREW, ADAPTOR AND PILOT TO DISTRIBUTOR (1-1/8")
-
3413-26992 LOCKWASHER, ADAPTOR AND PILOT TO DISTRIBUTOR SCREWLOCKWASHER, ADAPTOR AND PILOT TO DISTRIBUTOR SCREW
-
3523-29909 SPACER. DRIVEN PULLEYSPACER. DRIVEN PULLEY
-
3629906A1 DRIVEN PULLEY ASSEMBLYDRIVEN PULLEY ASSEMBLY
-
3717-29908 PIN, DRIVEN PULLEYPIN, DRIVEN PULLEY
-
3829907 FLANGE, DRIVE PULLEYFLANGE, DRIVE PULLEY
-
3928-29910 KEY, DISTRIBUTOR DRIVINGKEY, DISTRIBUTOR DRIVING
-
4010-32228 SCREW, PULLEY CLAMPING (5/8")SCREW, PULLEY CLAMPING (5/8")
-
4113-26996 LOCKWASHER, PULLEY CLAMPING SCREWLOCKWASHER, PULLEY CLAMPING SCREW
-
4010-64652 SCREW, PULLEY CLAMPING (5/8")SCREW, PULLEY CLAMPING (5/8")
-
4112-38832 WASHER, PULLEY CLAMPING SCREWWASHER, PULLEY CLAMPING SCREW
-
4220140 BELT, TIMINGBELT, TIMING
-
4330109 GROUND STRAP ASSEMBLY, ADAPTOR TO CRANKCASEGROUND STRAP ASSEMBLY, ADAPTOR TO CRANKCASE
