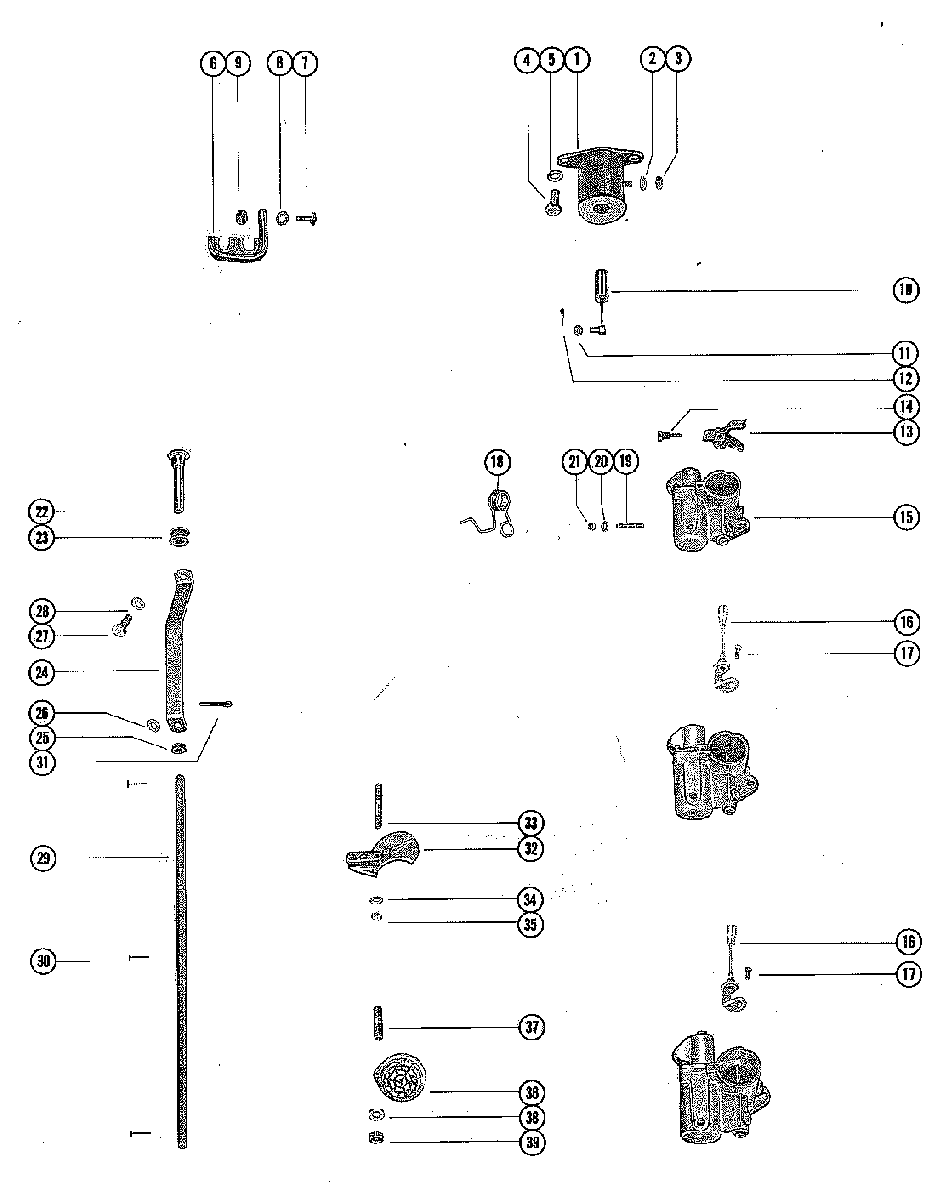

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 1000SS 2318586 THRU 2836018

  • №
    Артикул
    Название
  • 1
    45068 CHOKE SOLENOID
    CHOKE SOLENOID
  • 2
    13-26996 LOCKWASHER, SOLENOID TERMINAL
    LOCKWASHER, SOLENOID TERMINAL
  • 3
    11-68219 NUT, SOLENOID TERMINAL
    NUT, SOLENOID TERMINAL
  • 4
    10-25299 SCREW, CHOKE SOLENOID
    SCREW, CHOKE SOLENOID
  • 5
    13-26993 LOCKWASHER, CHOKE SOLENOID SCREW
    LOCKWASHER, CHOKE SOLENOID SCREW
  • 6
    59757 BRACKET, COIL LEAD RETAINER
    BRACKET, COIL LEAD RETAINER
  • 7
    10-64278 SCREW, COIL BRACKET (1")
    SCREW, COIL BRACKET (1")
  • 8
    12-29245 WASHER, COIL BRACKET SCREW
    WASHER, COIL BRACKET SCREW
  • 9
    11-20184 NUT, COIL BRACKET SCREW
    NUT, COIL BRACKET SCREW
  • 10
    48315A4 PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID
    PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID
  • 11
    12-30164 WASHER, PLUNGER AND LINK
    WASHER, PLUNGER AND LINK
  • 12
    18-26953 COTTER PIN, LINK TO UPPER CHOKE LEVER
    COTTER PIN, LINK TO UPPER CHOKE LEVER
  • 13
    27977 CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)
    CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)
  • 14
    1395-6027 SCREW, CLUSTER TO THROTTLE LEVER
    SCREW, CLUSTER TO THROTTLE LEVER
  • 15
    1335-3359 CARBURETOR ASSEMBLY, COMPLETE
    CARBURETOR ASSEMBLY, COMPLETE
  • 15
    1335-3640 CARBURETOR ASSEMBLY, COMPLETE
    CARBURETOR ASSEMBLY, COMPLETE
  • 16
    53649A2 THROTTLE PICK-UP BRACKET ASSEMBLY
    SERIAL 00000000-02573511
    THROTTLE PICK-UP BRACKET ASSEMBLY
    SERIAL 00000000-02573511
  • 17
    10-29239 SCREW, THROTTLE BRACKET MOUNTING
    SERIAL 00000000-02573511
    SCREW, THROTTLE BRACKET MOUNTING
    SERIAL 00000000-02573511
  • 16
    53649A2 THROTTLE PICKUP BRACKETE ASSEMBLY
    SERIAL 02573512-09999999
    THROTTLE PICKUP BRACKETE ASSEMBLY
    SERIAL 02573512-09999999
  • 17
    10-53651 SCREW, THROTTLE BRACKET MOUNTING
    SERIAL 02573512-09999999
    SCREW, THROTTLE BRACKET MOUNTING
    SERIAL 02573512-09999999
  • --
    28-89694 INSERT, THROTTLE BRACKET
    SERIAL 02573512-09999999
    INSERT, THROTTLE BRACKET
    SERIAL 02573512-09999999
  • 18
    24-37678 SPRING, CHOKE ROD TENSION
    SPRING, CHOKE ROD TENSION
  • 19
    10-657461 STUD, CHOKE ROD SPRING TO CARBURETOR
    STUD, CHOKE ROD SPRING TO CARBURETOR
  • 20
    23-32427 SPACER, CHOKE ROD SPRING STUD
    SPACER, CHOKE ROD SPRING STUD
  • 21
    11-20184 NUT, CHOKE ROD SPRING TO CARBURETOR STUD
    NUT, CHOKE ROD SPRING TO CARBURETOR STUD
  • 22
    90242A1 KNOB, CHOKE ROD
    KNOB, CHOKE ROD
  • 23
    25-20116 GROMMET, CHOKE ROD
    GROMMET, CHOKE ROD
  • 24
    45458 "U" LINK, CHOKE KNOB
    "U" LINK, CHOKE KNOB
  • 25
    23-45457 BUSING, NYLINER - "U" LINK
    BUSING, NYLINER - "U" LINK
  • 26
    12-37998 WASHER, CHOKE ROD
    WASHER, CHOKE ROD
  • 27
    10-69022 SCREW, "U" LINK TO CHOKE KNOB
    SCREW, "U" LINK TO CHOKE KNOB
  • 28
    13-26996 LOCKWASHER, "U" LINK SCREW
    LOCKWASHER, "U" LINK SCREW
  • 29
    45456 ROD, CHOKE
    ROD, CHOKE
  • 30
    17-25391 RIVET, CHOKE SHUTTER TO CHOKE ROD
    RIVET, CHOKE SHUTTER TO CHOKE ROD
  • 31
    18-26953 COTTER PIN, CHOKE ROD
    COTTER PIN, CHOKE ROD
  • 32
    47804 SHUTTER, CHOKE - CARBURETOR
    SHUTTER, CHOKE - CARBURETOR
  • 33
    16-30172 STUD, CARBURETOR - CHOKE SHUTTER PIVOT (1-1/4")
    STUD, CARBURETOR - CHOKE SHUTTER PIVOT (1-1/4")
  • 33
    16-69036 STUD, CARBURETOR - CHOKE SHUTTER PIVOT (1-3/8")
    STUD, CARBURETOR - CHOKE SHUTTER PIVOT (1-3/8")
  • 34
    12-30164 WASHER, CHOKE SHUTTER CARBURETOR STUD
    WASHER, CHOKE SHUTTER CARBURETOR STUD
  • 35
    11-20110 NUT, CHOKE SHUTTER TO CARBURETOR STUD
    NUT, CHOKE SHUTTER TO CARBURETOR STUD
  • 36
    35-56197 SCREEN, FILTER - CARBURETOR
    SCREEN, FILTER - CARBURETOR
  • 37
    16-69037 STUD, FILTER SCREEN TO CARBURETOR
    STUD, FILTER SCREEN TO CARBURETOR
  • 38
    12-30164 WASHER, FILTER SCREEN STUD
    WASHER, FILTER SCREEN STUD
  • 39
    11-20110 NUT, FILTER SCREEN STUD
    NUT, FILTER SCREEN STUD
