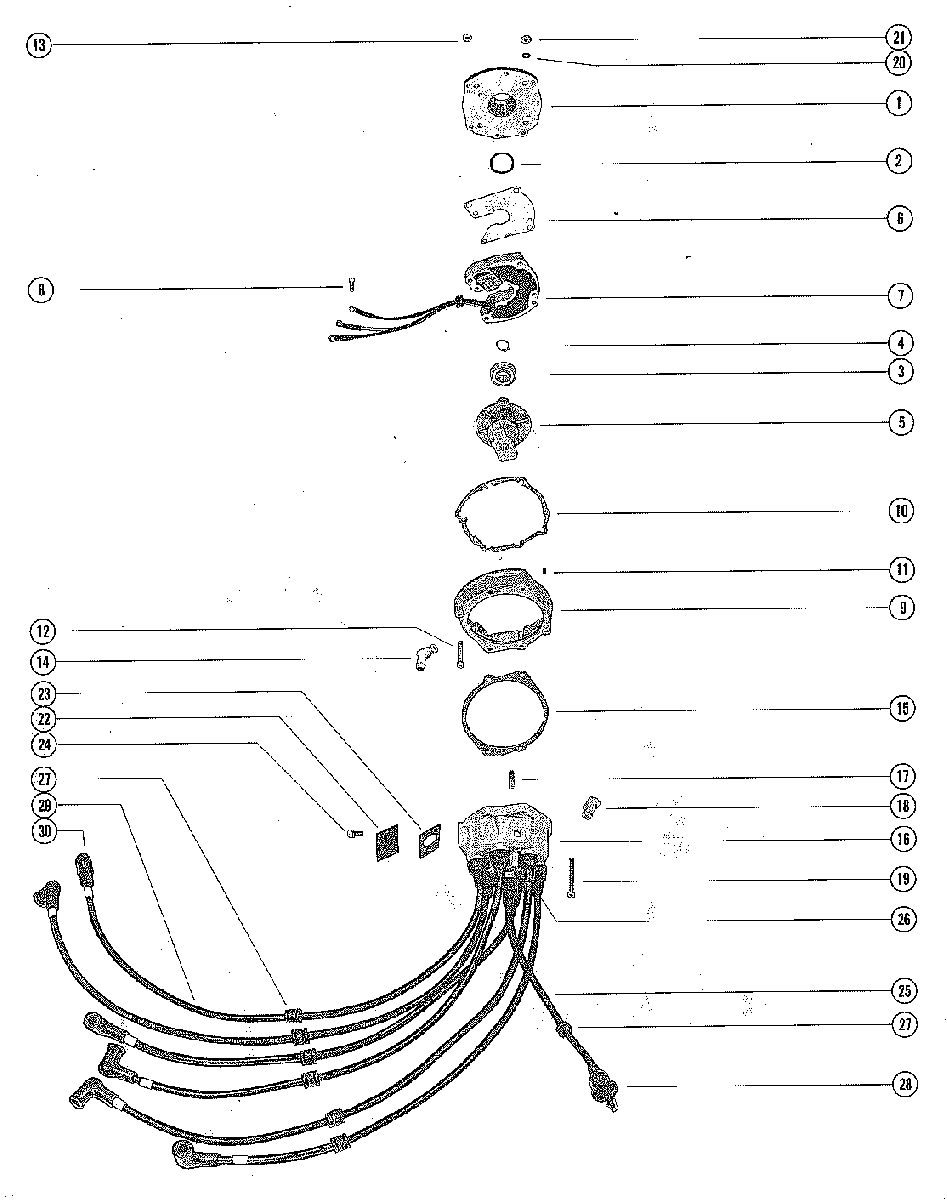

DISTRIBUTOR ASSEMBLY, COMPLETE для Mercury - 1000SS 2318586 THRU 2836018
-
№АртикулНазвание
-
-393-2799A11 DISTRIBUTOR ASSEMBLY, COMPLETEDISTRIBUTOR ASSEMBLY, COMPLETE
-
1393-2799A21 HOUSING ASSEMBLY, PRIMARYHOUSING ASSEMBLY, PRIMARY
-
213-26917 WASHER, WAVE - PRIMARY HOUSINGWASHER, WAVE - PRIMARY HOUSING
-
330-26379 BEARING, BALL - ROTOR SHAFTBEARING, BALL - ROTOR SHAFT
-
453-45906 RING, RETAINER - ROTOR SHAFT BALL BEARINGRING, RETAINER - ROTOR SHAFT BALL BEARING
-
5393-3269A6 ROTOR SHAFT ASSEMBLYROTOR SHAFT ASSEMBLY
-
6393-2795 SHIM, TRIGGER HOUSING TO PRIMARY HOUSINGSHIM, TRIGGER HOUSING TO PRIMARY HOUSING
-
7393-2918A6 TRIGGER HOUSING ASSEMBLYTRIGGER HOUSING ASSEMBLY
-
810-38055 SCREW, SHIM/TRIGGER HOUSING TO PRIMARY HOUSING (5/8")SCREW, SHIM/TRIGGER HOUSING TO PRIMARY HOUSING (5/8")
-
810-45218 SCREW, SHIM/TRIGGER HOUSING TO PRIMARY HOUSING (3/8")SCREW, SHIM/TRIGGER HOUSING TO PRIMARY HOUSING (3/8")
-
9393-3014A2 ADAPTOR ASSEMBLY, HOUSING TO DISTRIBUTOR CAPADAPTOR ASSEMBLY, HOUSING TO DISTRIBUTOR CAP
-
1027-46351 GASKET, ADAPTOR TO PRIMARY HOUSINGGASKET, ADAPTOR TO PRIMARY HOUSING
-
1117-20032 DOWEL PIN, ADAPTOR TO PRIMARY HOUSINGDOWEL PIN, ADAPTOR TO PRIMARY HOUSING
-
1210-32627 SCREW, ADAPTOR TO HOUSINGSCREW, ADAPTOR TO HOUSING
-
1311-46438 NUT, ADAPTOR TO HOUSING SCREWNUT, ADAPTOR TO HOUSING SCREW
-
1422-31521A1 ELBOW ASSEMBLY, VENT HOSE - ADAPTOR HOUSINGELBOW ASSEMBLY, VENT HOSE - ADAPTOR HOUSING
-
1527-36268 GASKET, DISTRIBUTOR TO ADAPTORGASKET, DISTRIBUTOR TO ADAPTOR
-
16393-1927A9 DISTRIBUTOR CAP ASSEMBLYDISTRIBUTOR CAP ASSEMBLY
-
17393-1293A1 BRUSH AND SPRING ASSEMBLYBRUSH AND SPRING ASSEMBLY
-
1822-31521 ELBOW, VEN HOSE - DISTRIBUTOR CAPELBOW, VEN HOSE - DISTRIBUTOR CAP
-
1910-60464 SCREW, DISTRIBUTOR CAP TO ADAPTOR TO HOUSING (2")SCREW, DISTRIBUTOR CAP TO ADAPTOR TO HOUSING (2")
-
2012-89302 WASHER, DISTRIBUTOR CAP FASTENING SCREWWASHER, DISTRIBUTOR CAP FASTENING SCREW
-
2111-46438 NUT, DISTRIBUTOR CAP FASTENING SCREWNUT, DISTRIBUTOR CAP FASTENING SCREW
-
22393-2725 COVER, SIDE INLET - DISTRIBUTORCOVER, SIDE INLET - DISTRIBUTOR
-
2327-26447 GASKET, SIDE INLET COVER TO DISTRIBUTOR CAPGASKET, SIDE INLET COVER TO DISTRIBUTOR CAP
-
2410-35400 SCREW, SIDE INLET COVER TO DISTRIBUTOR CAP (7/16")SCREW, SIDE INLET COVER TO DISTRIBUTOR CAP (7/16")
-
2584-821945A8 HIGH TENSION CABLE ASSEMBLY - DISTRIBUTOR TO COILHIGH TENSION CABLE ASSEMBLY - DISTRIBUTOR TO COIL
-
--8M0084600 CONNECTOR, HIGH TENSION CABLE (CAP END)CONNECTOR, HIGH TENSION CABLE (CAP END)
-
2685-94589 SLEEVE, TERMINAL COVERSLEEVE, TERMINAL COVER
-
2725-26547 GROMMET, HIGH TENSION CABLEGROMMET, HIGH TENSION CABLE
-
28332-2854T01 BOOT, HIGH TENSION CABLE TO COILBOOT, HIGH TENSION CABLE TO COIL
-
2685-94589 SLEVE, TERMINAL END COVERSLEVE, TERMINAL END COVER
-
2725-26547 GROMMET, SPARK PLUB LEADGROMMET, SPARK PLUB LEAD
-
2984-813715A1 SPARK PLUG LEAD ASSEMBLYSPARK PLUG LEAD ASSEMBLY
-
--8M0084600 CONNECTOR, SPARK PLUG LEADCONNECTOR, SPARK PLUG LEAD
-
3085-63709A1 PROTECTOR, SPARK PLUGG LEADPROTECTOR, SPARK PLUGG LEAD
Все узлы модели:
- BOTTOM COWL AND SHIFT LINKAGE
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE AND CHOKE SOLENOID
- CLAMP AND SWIVEL BRACKET ASSEMBLY
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DISTRIBUTOR ADAPTOR AND PILOT ASSEMBLY
- • DISTRIBUTOR ASSEMBLY, COMPLETE
- DISTRIBUTOR VERTICAL LINKAGE AND IGNITION COILS
- DRIVE SHAFT HOUSING ASSEMBLY
- FLYWHEEL ASSEMBLY AND STATOR
- FUEL PUMP AND FUEL LINE ASSEMBLY
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)
- MISCELLANEOUS PARTS/ACCESSORIES
- STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES
- TOP COWL AND SUPPORT BRACKETS
