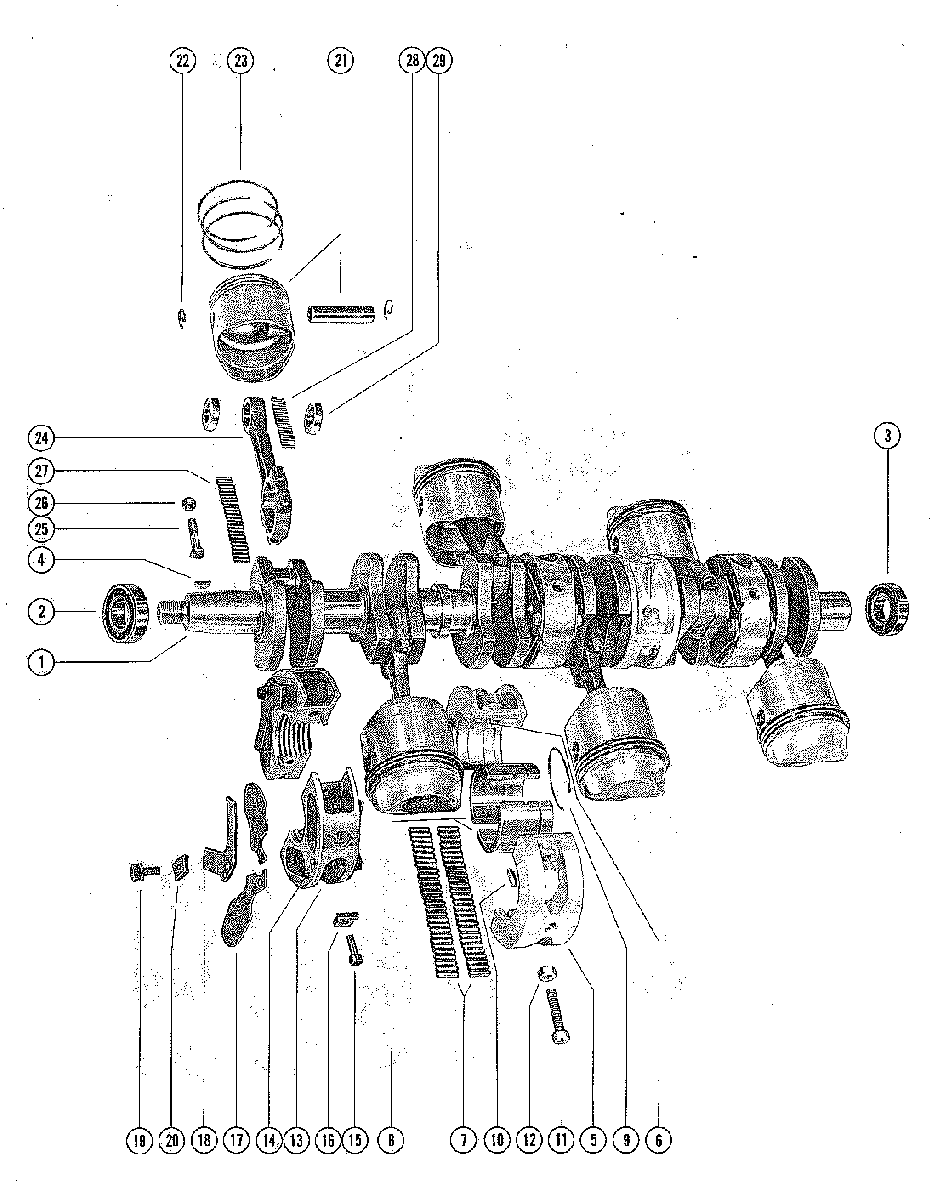

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 1000SS 2318586 THRU 2836018

  • №
    Артикул
    Название
  • 1
    420-3351A3 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    30-62567T BEARING, BALL - UPPER
    BEARING, BALL - UPPER
  • 3
    30-63742T BEARING, BALL - LOWER
    BEARING, BALL - LOWER
  • 3
    30-63742T BEARING, BALL - LOWER
    BEARING, BALL - LOWER
  • 4
    28-45554 KEY, FLYWHEEL DRIVE
    KEY, FLYWHEEL DRIVE
  • 5
    531-1884A3 CENTER MAIN BEARING ASSEMBLY
    CENTER MAIN BEARING ASSEMBLY
  • 6
    17-20032 DOWEL PIN, CENTER MAIN BEARING
    DOWEL PIN, CENTER MAIN BEARING
  • 7
    29-714221 BEARING, NEEDLE - OUTER RACE
    BEARING, NEEDLE - OUTER RACE
  • 8
    26113T RACE, OUTER (PAIR)
    RACE, OUTER (PAIR)
  • 9
    53-26933 RING, SNAP - OUTER RACE
    RING, SNAP - OUTER RACE
  • 10
    17-31245 DOWEL PIN, STEPPED
    DOWEL PIN, STEPPED
  • 11
    10-22968 SCREW, CENTER MAIN BEARING CLAMPING
    SCREW, CENTER MAIN BEARING CLAMPING
  • 12
    11-20184 NUT, BEARING CLAMPING SCREW
    NUT, BEARING CLAMPING SCREW
  • 13
    533-2761A5 MAIN BEARING ASSEMBLY, VALVE TYPE
    MAIN BEARING ASSEMBLY, VALVE TYPE
  • 14
    17-20032 DOWEL PIN, MAIN BEARING
    DOWEL PIN, MAIN BEARING
  • 15
    10-45775 SCREW, MAIN BEARING CLAMPING
    SCREW, MAIN BEARING CLAMPING
  • 16
    11-45774 NUT, MAIN BEARING CLAMPING SCREW
    NUT, MAIN BEARING CLAMPING SCREW
  • 17
    34-45506A1 REED SET, MATCHED - MAIN BEARING
    REED SET, MATCHED - MAIN BEARING
  • 18
    34-64632 REED STOP, MAIN BEARING REED VALVES
    REED STOP, MAIN BEARING REED VALVES
  • 19
    10-77280 SCREW, REED STOP MOUNTING
    SCREW, REED STOP MOUNTING
  • 20
    11-29469 NUT, REED STOP MOUNTING SCREW
    NUT, REED STOP MOUNTING SCREW
  • 21
    732-3270A2 PISTON AND PISTON PIN ASSEMBLY
    PISTON AND PISTON PIN ASSEMBLY
  • 22
    40-45740 LOCK RING, PISTON PIN
    LOCK RING, PISTON PIN
  • 23
    39-78816A12 RING ASSEMBLY, PISTON (1/16" THICK)
    RING ASSEMBLY, PISTON (1/16" THICK)
  • 24
    617-2768A3 CONNECTING ROD AND CAP ASSEMBLY
    CONNECTING ROD AND CAP ASSEMBLY
  • 25
    10-54803 SCREW, CONNECTING ROD
    SCREW, CONNECTING ROD
  • 26
    11-20061 NUT, CONNECTING ROD SCREW
    NUT, CONNECTING ROD SCREW
  • 27
    29-47897 BEARING, NEEDLE - CRANKPIN
    BEARING, NEEDLE - CRANKPIN
  • 28
    29-39656 BEARING, NEEDLE - PISTON PIN
    BEARING, NEEDLE - PISTON PIN
  • 29
    12-45741 WASHER, NEEDLE LOCATING
    WASHER, NEEDLE LOCATING
  • --
    732-3449A2 PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)
    PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)
  • --
    39-78811A12 RING ASS'Y, PISTON (.015 OVERSIZE) - 1/16" THICK (#39-78811A12)
    RING ASS'Y, PISTON (.015 OVERSIZE) - 1/16" THICK (#39-78811A12)
