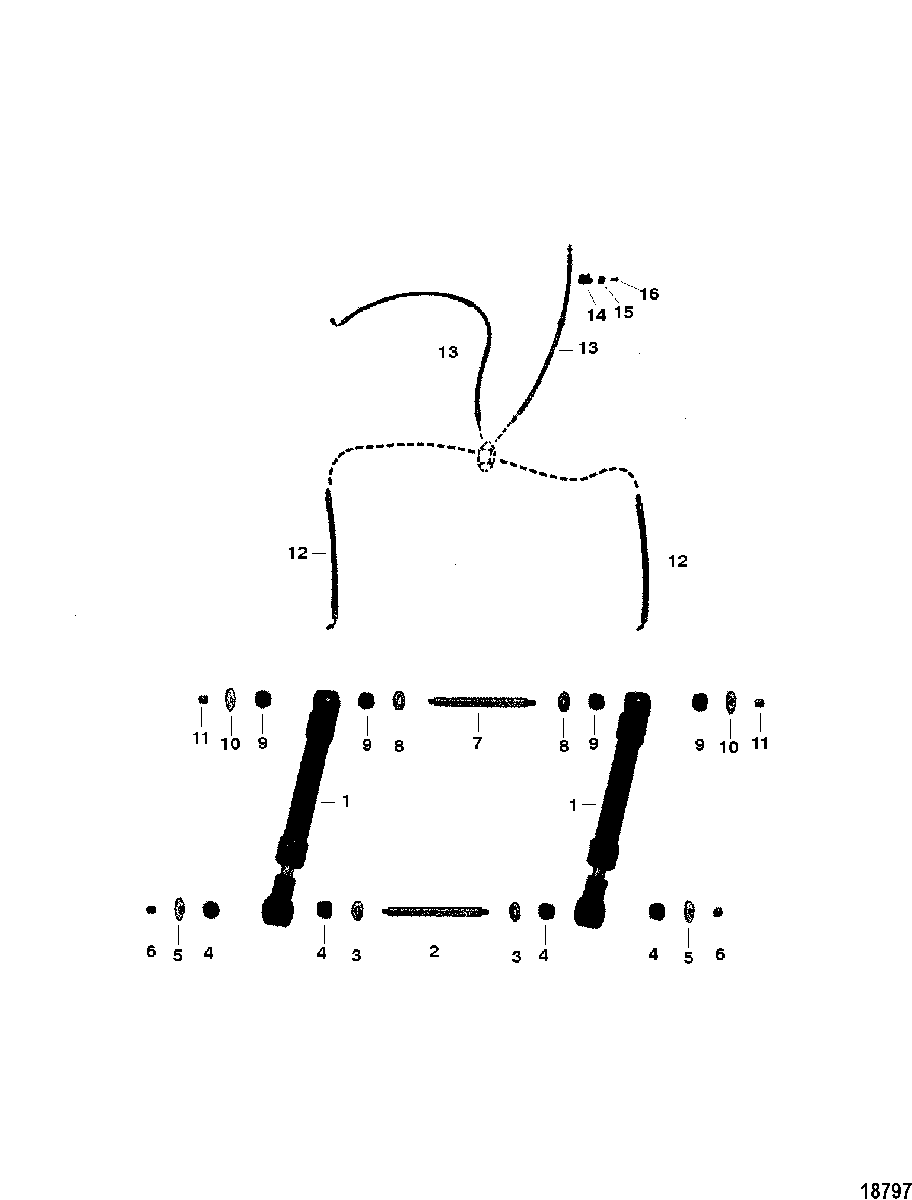

TRIM CYLINDERS AND HOSES(III-IV-V) для Mercruiser - SSM II/III/IV/V 1982-1995 ALL THRU none
-
№АртикулНазвание
-
147342A23 CYLINDER ASSEMBLY, Hyd
(REGULAR SHOCK) (.875 DIA ANCHOR PINS)CYLINDER ASSEMBLY, Hyd
(REGULAR SHOCK) (.875 DIA ANCHOR PINS) -
147342A23 CYLINDER ASSEMBLY, Hyd
(SOLID SHOCK) (.875 DIA ANCHOR PINS)CYLINDER ASSEMBLY, Hyd
(SOLID SHOCK) (.875 DIA ANCHOR PINS) -
1816420A3 CYLINDER ASSEMBLY, Hyd
(REGULAR SHOCK) (1.00 DIA ANCHOR PINS)CYLINDER ASSEMBLY, Hyd
(REGULAR SHOCK) (1.00 DIA ANCHOR PINS) -
1816420A3 CYLINDER ASSEMBLY, Hyd
(SOLID SHOCK) (1.00 DIA ANCHOR PINS)CYLINDER ASSEMBLY, Hyd
(SOLID SHOCK) (1.00 DIA ANCHOR PINS) -
217-47375 PIN, Anchor
(.875 DIA ANCHOR PINS)PIN, Anchor
(.875 DIA ANCHOR PINS) -
217-814643 PIN, Anchor
(1.00 DIA ANCHOR PINS)PIN, Anchor
(1.00 DIA ANCHOR PINS) -
312-89664 WASHER, (.920 x 1.750 x .060)
(.875 DIA ANCHOR PINS)WASHER, (.920 x 1.750 x .060)
(.875 DIA ANCHOR PINS) -
312-814729 WASHER
(1.00 DIA ANCHOR PINS)WASHER
(1.00 DIA ANCHOR PINS) -
423-90203 BUSHING
(.875 DIA ANCHOR PINS)BUSHING
(.875 DIA ANCHOR PINS) -
423-816424 BUSHING
(1.00 DIA ANCHOR PINS)BUSHING
(1.00 DIA ANCHOR PINS) -
512-89665 WASHER, Stainless Steel
(.875 DIA ANCHOR PINS)WASHER, Stainless Steel
(.875 DIA ANCHOR PINS) -
512-816483 WASHER
(1.00 DIA ANCHOR PINS)WASHER
(1.00 DIA ANCHOR PINS) -
611-35000 NUT, (.500-20) Stainless Steel
(.875 DIA ANCHOR PINS)NUT, (.500-20) Stainless Steel
(.875 DIA ANCHOR PINS) -
611-35000 NUT, (.500-20)
(1.00 DIA ANCHOR PINS)NUT, (.500-20)
(1.00 DIA ANCHOR PINS) -
717-14875A1 PIN KIT, Pivot
(.875 DIA ANCHOR PINS)PIN KIT, Pivot
(.875 DIA ANCHOR PINS) -
717-814642 PIN, Pivot
(1.00 DIA ANCHOR PINS)PIN, Pivot
(1.00 DIA ANCHOR PINS) -
812-89664 WASHER, (.920 x 1.750 x .060)
(.875 DIA ANCHOR PINS)WASHER, (.920 x 1.750 x .060)
(.875 DIA ANCHOR PINS) -
812-814729 WASHER
(1.00 DIA ANCHOR PINS)WASHER
(1.00 DIA ANCHOR PINS) -
923-90203 BUSHING
(.875 DIA ANCHOR PINS)BUSHING
(.875 DIA ANCHOR PINS) -
923-816424 BUSHING
(1.00 DIA ANCHOR PINS)BUSHING
(1.00 DIA ANCHOR PINS) -
1012-89665 WASHER, Stainless Steel
(.875 DIA ANCHOR PINS)WASHER, Stainless Steel
(.875 DIA ANCHOR PINS) -
1012-816483 WASHER
(1.00 DIA ANCHOR PINS)WASHER
(1.00 DIA ANCHOR PINS) -
1111-35000 NUT, (.500-20) Stainless Steel
(.875 DIA ANCHOR PINS)NUT, (.500-20) Stainless Steel
(.875 DIA ANCHOR PINS) -
1111-35000 NUT, (.500-20)
(1.00 DIA ANCHOR PINS)NUT, (.500-20)
(1.00 DIA ANCHOR PINS) -
1232-86036Q HOSE, HydraulicHOSE, Hydraulic
-
1332-47399 HOSE, HydraulicHOSE, Hydraulic
-
1454-22740 CLIP (.375)CLIP (.375)
-
1454-45806 CLAMPCLAMP
-
1510-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
168M0084613 C WASHERC WASHER
