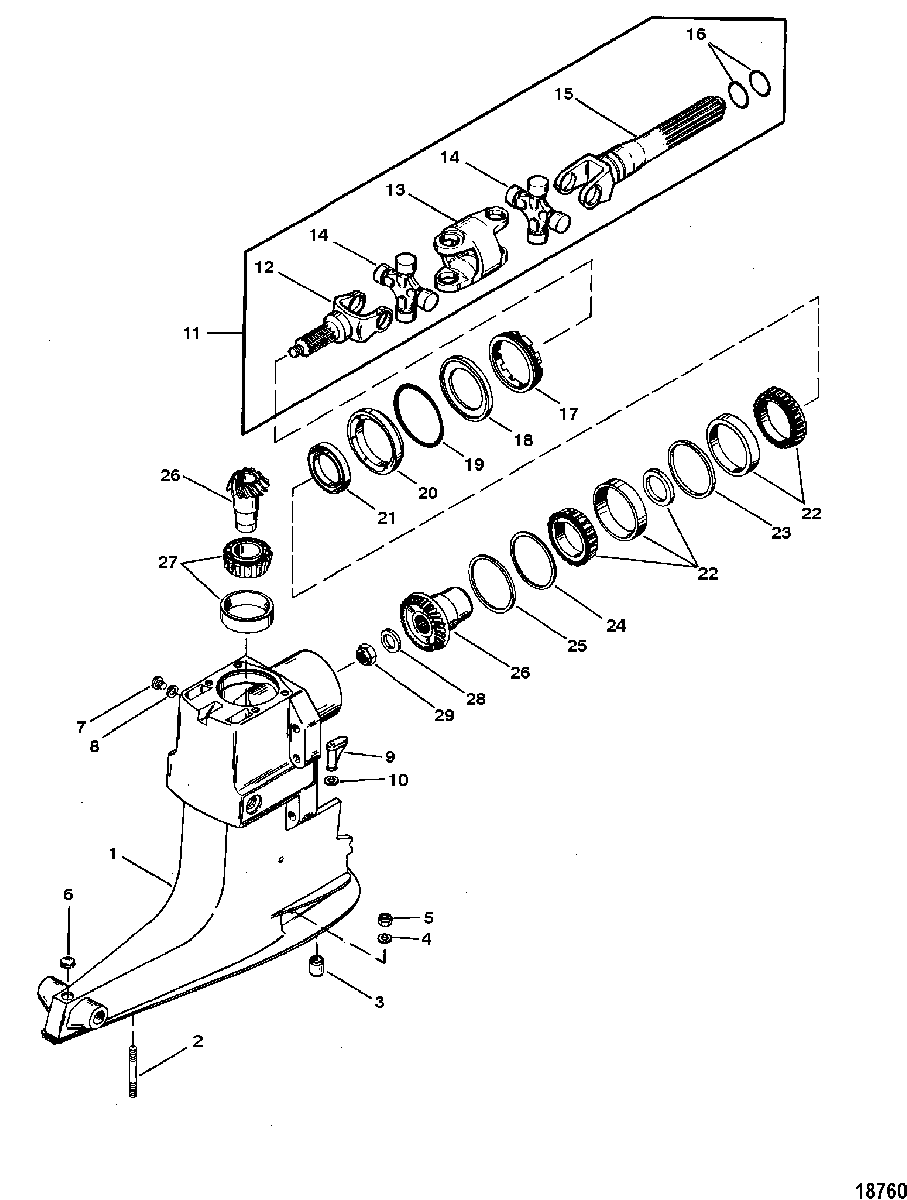

DRIVESHAFT HOUSING AND GEAR ASSY(ALPHA ONE-SS) для Mercruiser - SSM II/III/IV/V 1982-1995 ALL THRU none

№

Артикул

Название
1

3500-9552A5 HOUSING ASSEMBLY, Driveshaft

HOUSING ASSEMBLY, Driveshaft

0 ₽
2

16-56295 STUD, (.437 x 2.69)

STUD, (.437 x 2.69)

420 ₽
3

23-812846 BUSHING

BUSHING

0 ₽
4

12-45176 WASHER, (.453 x .812 x .105) Stainless Steel

WASHER, (.453 x .812 x .105) Stainless Steel

130 ₽
5

11-859116 NUT, (.4375-20)

NUT, (.4375-20)

320 ₽
6

19-47579 PLUG

PLUG

190 ₽
7

10-79953Q04 SCREW, (.375-16 x .250)

SCREW, (.375-16 x .250)

1 000 ₽
8

12-191833 WASHER, Fiber

WASHER, Fiber

60 ₽
9

12625 SHIFTER

SHIFTER

43 220 ₽
10

53-12626 RING, Retaining

RING, Retaining

600 ₽
11

814819A2 UNIVERSAL JOINT

UNIVERSAL JOINT

79 870 ₽
12

46020T02 YOKE, Gear End

YOKE, Gear End

17 540 ₽
13

393831 SOCKET, Center

SOCKET, Center

9 760 ₽
14

75832T1 CROSS AND BEARING

CROSS AND BEARING

8 250 ₽
15

59830A7 YOKE ASSEMBLY (Coupling End)

YOKE ASSEMBLY (Coupling End)

26 810 ₽
16

25-25439 O-RING, (.862 x .103)

O-RING, (.862 x .103)

190 ₽
17

8168112 RETAINER

RETAINER

3 290 ₽
18

35983 RING

RING

1 420 ₽
19

25-70937 O-RING

O-RING

460 ₽
20

66081A2 CARRIER ASSEMBLY

CARRIER ASSEMBLY

6 040 ₽
21

26-823894 SEAL, Oil

SEAL, Oil

3 220 ₽
22

31-35988A9 BEARING ASSEMBLY
(1.50:1 RATIO)(STEP SHOULDER GEAR)

BEARING ASSEMBLY
(1.50:1 RATIO)(STEP SHOULDER GEAR)

39 290 ₽
22

31-35988A12 BEARING ASSEMBLY, Tapered Roller
(1.50:1 RATIO)(STRAIGHT SHOULDER GEAR)

BEARING ASSEMBLY, Tapered Roller
(1.50:1 RATIO)(STRAIGHT SHOULDER GEAR)

29 530 ₽
22

31-35988A3 BEARING ASSEMBLY, Tapered Roller
(1.32:1 RATIO)

BEARING ASSEMBLY, Tapered Roller
(1.32:1 RATIO)

33 410 ₽
23

23-66824 SPACER
(1.50:1 RATIO)(STEP SHOULDER GEAR)

SPACER
(1.50:1 RATIO)(STEP SHOULDER GEAR)

5 790 ₽
23

23-35985 SPACER
(1.50:1 RATIO)(STRAIGHT SHOULDER GEAR)

SPACER
(1.50:1 RATIO)(STRAIGHT SHOULDER GEAR)

1 340 ₽
23

23-66824 SPACER
(1.32:1 RATIO)

SPACER
(1.32:1 RATIO)

5 790 ₽
24

15-35980A1 SHIM SET

SHIM SET

1 180 ₽
25

23-8M0124132 SHIM, Spacer

SHIM, Spacer

490 ₽
26

43-18411A4 GEAR SET (Pinion and Drive)
(1.50:1 RATIO) (20-22 GEAR RATIO)

GEAR SET (Pinion and Drive)
(1.50:1 RATIO) (20-22 GEAR RATIO)

91 950 ₽
26

43-8M0080756 GEAR SET (Pinion and Drive)
(1.32:1 RATIO) (16-20 GEAR RATIO)

GEAR SET (Pinion and Drive)
(1.32:1 RATIO) (16-20 GEAR RATIO)

89 050 ₽
27

31-32573A1 BEARING ASSEMBLY, Roller
(1.50:1 RATIO)

BEARING ASSEMBLY, Roller
(1.50:1 RATIO)

6 550 ₽
27

31-66818A1 BEARING ASSEMBLY, Tapered Roller
(1.32:1 RATIO)

BEARING ASSEMBLY, Tapered Roller
(1.32:1 RATIO)

12 880 ₽
28

12-45810 WASHER

WASHER

110 ₽
29

11-22339 NUT, (.625-18)

NUT, (.625-18)

570 ₽
-

26-32511A1 SEAL KIT

SEAL KIT

8 110 ₽
