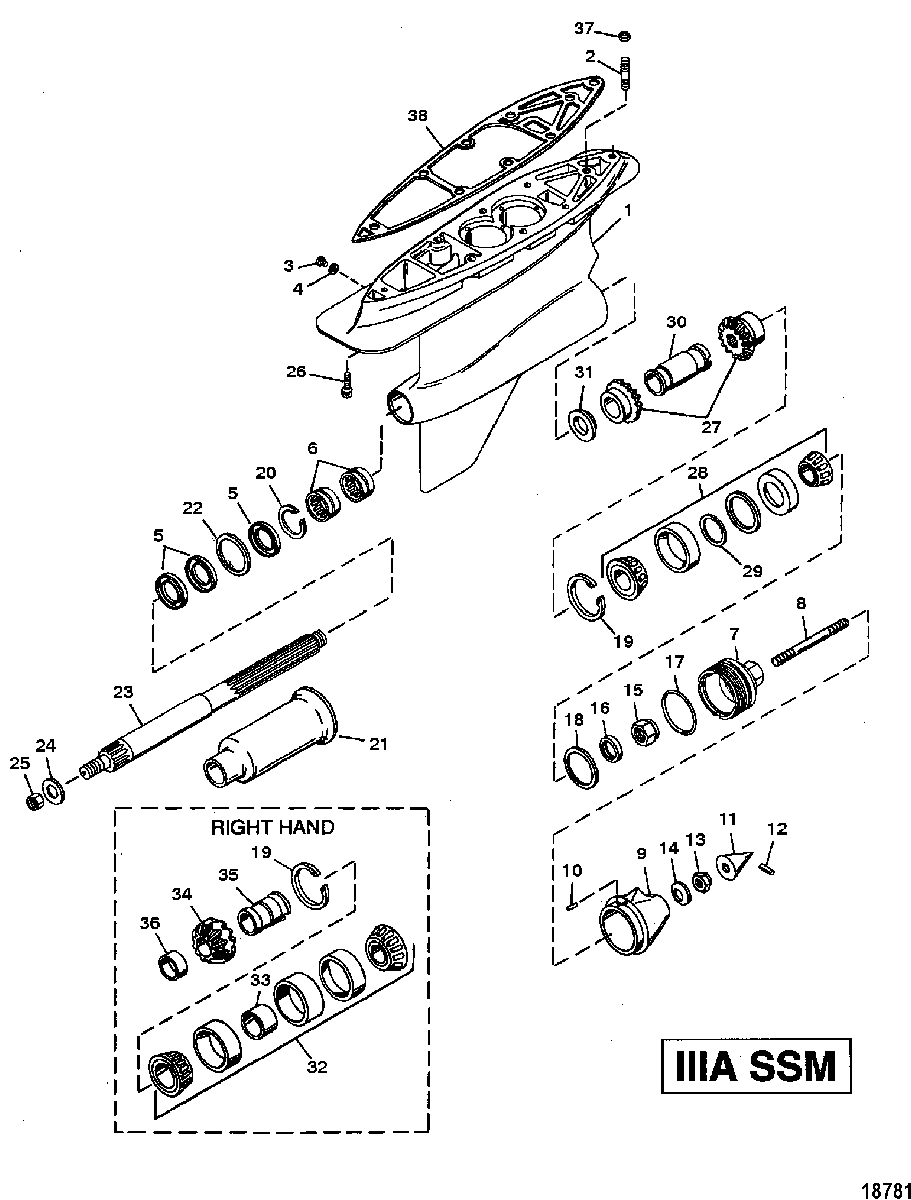

GEAR HOUSING ASSEMBLY(PROPSHAFT) (IIIA SSM) для Mercruiser - SSM II/III/IV/V 1982-1995 ALL THRU none
-
№АртикулНазвание
-
11677-817090A13 GEAR HOUSING ASSEMBLY
(BASIC)GEAR HOUSING ASSEMBLY
(BASIC) -
216-57985 STUD (2.810)STUD (2.810)
-
322-8M0058389 SCREW, Magnetic (.375-16)SCREW, Magnetic (.375-16)
-
412-191833 WASHER, FiberWASHER, Fiber
-
526-19473 SEAL, OilSEAL, Oil
-
631-39832T BEARING, RollerBEARING, Roller
-
718991 ANCHOR, StudANCHOR, Stud
-
816-530642 STUD, Nose ConeSTUD, Nose Cone
-
911353 NOSE CONENOSE CONE
-
1017-30282 PINPIN
-
1198036 CAP, Nose ConeCAP, Nose Cone
-
1265700 PLUGPLUG
-
1311-47379 NUT (.625-18)NUT (.625-18)
-
1412-34961 WASHERWASHER
-
1511-39825 NUT (1.250-12)NUT (1.250-12)
-
1623-846409 WASHERWASHER
-
1725-32507 O-RING, (3.359 x .139)O-RING, (3.359 x .139)
-
1823-18995 SPACERSPACER
-
1953-18994099 RING, Snap (.099 Thick)RING, Snap (.099 Thick)
-
1953-18994100 RING, Snap (.100 Thick)RING, Snap (.100 Thick)
-
1953-18994101 RING, Snap (.101 Thick)RING, Snap (.101 Thick)
-
1953-18994102 RING, Snap (.102 Thick)RING, Snap (.102 Thick)
-
1953-18994103 RING, Snap (.103 Thick)RING, Snap (.103 Thick)
-
1953-18994104 RING, Snap (.104 Thick)RING, Snap (.104 Thick)
-
1953-18994105 RING, Snap (.105 Thick)RING, Snap (.105 Thick)
-
1953-18994106 RING, Snap (.106 Thick)RING, Snap (.106 Thick)
-
1953-18994107 RING, Snap (.107 Thick)RING, Snap (.107 Thick)
-
1953-18994108 RING, Snap (.108 Thick)RING, Snap (.108 Thick)
-
1953-18994109 RING, Snap (.109 Thick)RING, Snap (.109 Thick)
-
1953-18994110 RING, Snap (.110 Thick)RING, Snap (.110 Thick)
-
1953-18994111 RING, Snap (.111 Thick)RING, Snap (.111 Thick)
-
1953-18994112 RING, Snap (.112 Thick)RING, Snap (.112 Thick)
-
2053-815353 RING, RetainingRING, Retaining
-
21848061 COVER, Propshaft GuardCOVER, Propshaft Guard
-
2215-66672010 SHIMSHIM
-
2344-18989T PROPELLER SHAFT (RH)PROPELLER SHAFT (RH)
-
2344-18988T PROPELLER SHAFT (LH)PROPELLER SHAFT (LH)
-
2412-39817 WASHER, Special - Stainless SteelWASHER, Special - Stainless Steel
-
2511-82671127 NUT, (1.0-14)NUT, (1.0-14)
-
2610-873702 SCREW, (.500-13 x 3.00)SCREW, (.500-13 x 3.00)
-
2743-19330A1 GEAR SET (Pinion and Drive)
(LH - 1.00:1 RATIO)GEAR SET (Pinion and Drive)
(LH - 1.00:1 RATIO) -
2743-816227A1 GEAR SET (Pinion and Drive)
(LH - 1.125:1 RATIO)GEAR SET (Pinion and Drive)
(LH - 1.125:1 RATIO) -
2831-39772A2 BEARING ASSEMBLY, Roller
(LH GEAR SET)BEARING ASSEMBLY, Roller
(LH GEAR SET) -
2923-18993 SPACER
(LH GEAR SET)SPACER
(LH GEAR SET) -
3023-53070 SPACER
(LH GEAR SET)SPACER
(LH GEAR SET) -
3112-39818 WASHER
(LH GEAR SET)WASHER
(LH GEAR SET) -
3231-39772A3 BEARING ASSEMBLY, Roller
(RH GEAR SET)BEARING ASSEMBLY, Roller
(RH GEAR SET) -
3323-19296 SPACER
(RH GEAR SET)SPACER
(RH GEAR SET) -
3443-19329A1 GEAR SET (Pinion and Drive)
(RH - 1.00:1 RATIO)GEAR SET (Pinion and Drive)
(RH - 1.00:1 RATIO) -
3443-816226A1 GEAR SET (Pinion and Drive)
(RH - 1.125:1 RATIO)GEAR SET (Pinion and Drive)
(RH - 1.125:1 RATIO) -
3523-8M0050942 SPACER
(RH GEAR SET)SPACER
(RH GEAR SET) -
3612-19180 WASHER
(RH GEAR SET)WASHER
(RH GEAR SET) -
3711-47302 NUT, (.562-18) Stainless SteelNUT, (.562-18) Stainless Steel
-
3827-47317 GASKETGASKET
