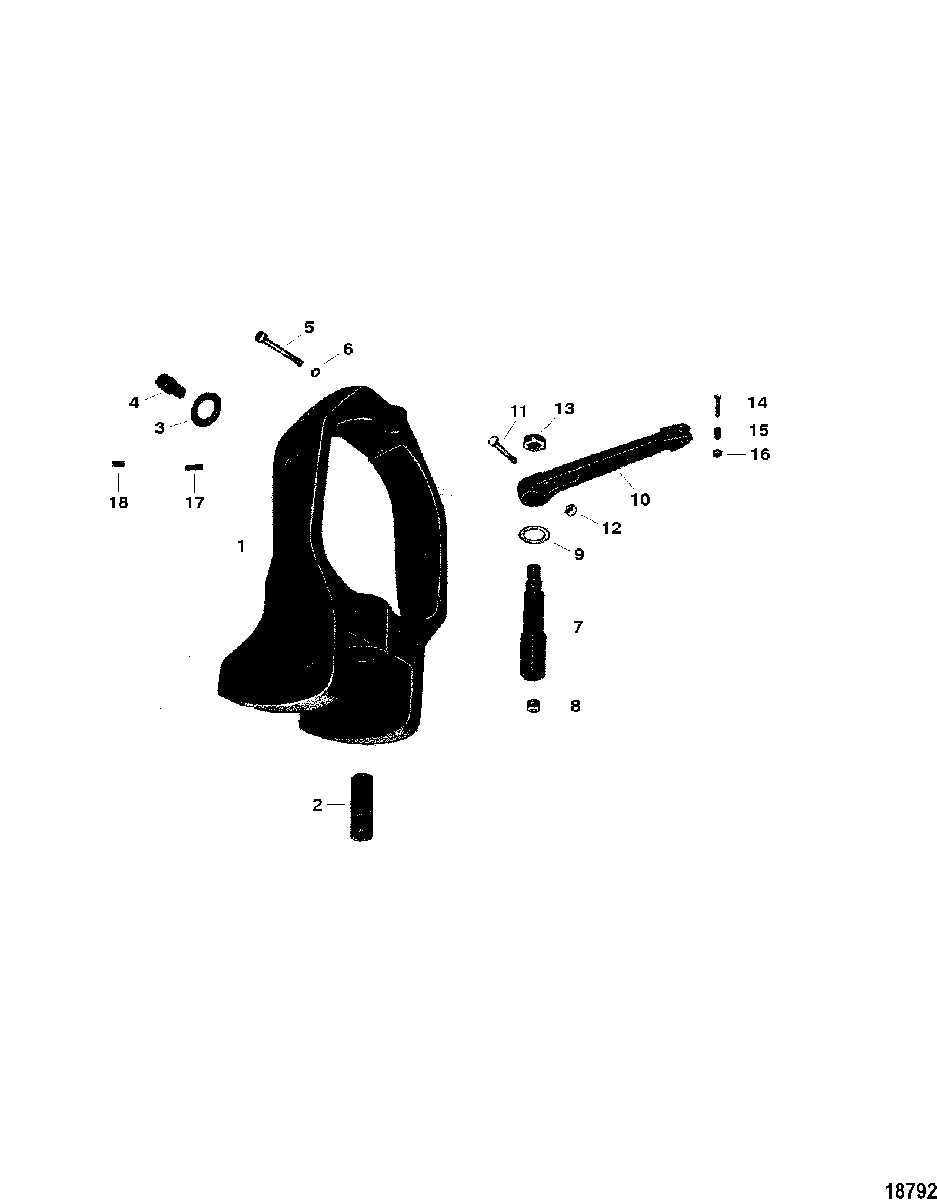

GIMBAL RING AND STEERING LEVER(III-IV-V) (1ST DESIGN) для Mercruiser - SSM II/III/IV/V 1982-1995 ALL THRU none

  • №
    Артикул
    Название
  • 1
    69111A1 GIMBAL RING ASSEMBLY
    (III & IV) (.875 DIA ANCHOR PINS)
    GIMBAL RING ASSEMBLY
    (III & IV) (.875 DIA ANCHOR PINS)
  • 1
    69111T4 GIMBAL RING ASSEMBLY
    (V) (1.00 DIA ANCHOR PINS)
    GIMBAL RING ASSEMBLY
    (V) (1.00 DIA ANCHOR PINS)
  • 2
    23-814645 BUSHING
    BUSHING
  • 3
    12-69109 WASHER
    WASHER
  • 4
    69114T PIN, Hinge
    PIN, Hinge
  • 5
    10-47450 SCREW, (.375-16 x 4.00)
    SCREW, (.375-16 x 4.00)
  • 6
    12-47538 WASHER
    WASHER
  • 7
    47645 SHAFT
    SHAFT
  • 8
    22-47540 PLUG, Pipe - Allen Head (.375-18)
    PLUG, Pipe - Allen Head (.375-18)
  • 9
    12-34858 WASHER
    WASHER
  • 10
    74163A1 LEVER ASSEMBLY, Steering
    LEVER ASSEMBLY, Steering
  • 11
    10-8M2021674 SCREW, (.437-20 x 2.50)
    SCREW, (.437-20 x 2.50)
  • 12
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • 13
    11-858869 NUT, (.875-14)
    NUT, (.875-14)
  • 14
    10-24644 SCREW, (.250-28 x 1.38)
    SCREW, (.250-28 x 1.38)
  • 15
    23-47643 BUSHING
    BUSHING
  • 16
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 17
    10-69110 SCREW, (.375-16 x .500), Set
    SCREW, (.375-16 x .500), Set
  • 18
    17-69113 PIN, Locking
    PIN, Locking
