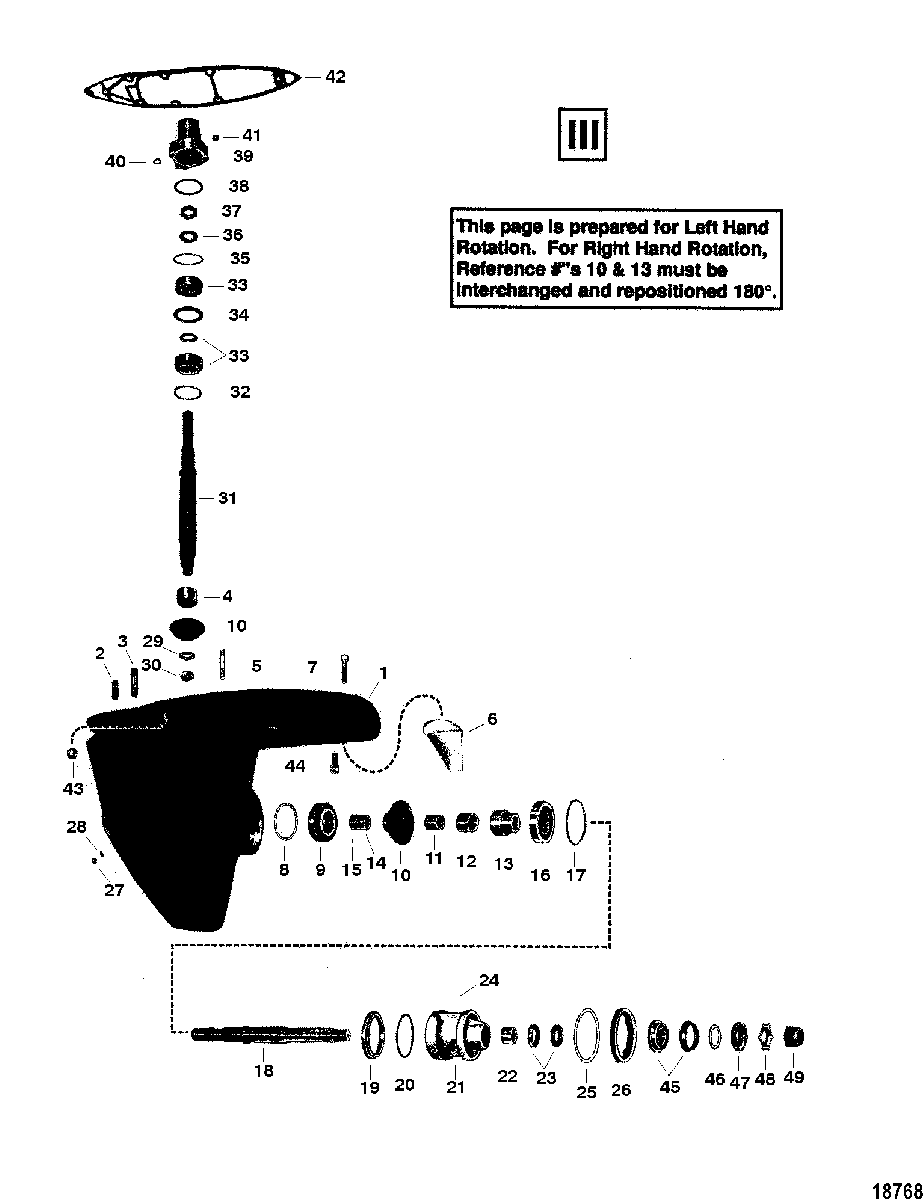

GEAR HOUSING ASSY(DRIVESHAFT & PROPSHAFT) (III) для Mercruiser - SSM II/III/IV/V 1982-1995 ALL THRU none

  • №
    Артикул
    Название
  • 1
    1636-4354A3 GEAR HOUSING ASSEMBLY (BASIC)
    GEAR HOUSING ASSEMBLY (BASIC)
  • 2
    16-8M0041668 STUD, (.437-14/.437-20 x 1.875)
    STUD, (.437-14/.437-20 x 1.875)
  • 3
    16-57985 STUD (2.810)
    STUD (2.810)
  • 4
    31-35246 BEARING, Roller
    BEARING, Roller
  • 5
    16-57981 STUD (.375-16 x 3.00)
    STUD (.375-16 x 3.00)
  • 6
    97-31640Q4 TRIM TAB ASSEMBLY
    TRIM TAB ASSEMBLY
  • 7
    10-41350 SCREW, (.437-14 x 2.50) Stainless Steel
    SCREW, (.437-14 x 2.50) Stainless Steel
  • 8
    15-47295A1 SHIM ASSEMBLY
    SHIM ASSEMBLY
  • 9
    31-47484A1 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 10
    43-53572A2 GEAR ASSEMBLY (Pinion and Drive)
    GEAR ASSEMBLY (Pinion and Drive)
  • 11
    23-48016 SPACER
    SPACER
  • 12
    23-48015 SPACER
    SPACER
  • 13
    53516 ADAPTOR
    ADAPTOR
  • 14
    23-48011 SLEEVE
    SLEEVE
  • 15
    17-53308 PIN, Dowel
    PIN, Dowel
  • 16
    31-47484A1 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 17
    15-47297A1 SHIM ASSEMBLY
    SHIM ASSEMBLY
  • 18
    44-53185A1 PROPELLER SHAFT ASSEMBLY (1.250-12)
    PROPELLER SHAFT ASSEMBLY (1.250-12)
  • 19
    47307 RING, Thrust
    RING, Thrust
  • 20
    25-47298 O-RING
    O-RING
  • 21
    52623A2 CARRIER ASSEMBLY, Bearing, Bearing
    CARRIER ASSEMBLY, Bearing, Bearing
  • 22
    31-47946 BEARING, Roller
    BEARING, Roller
  • 23
    26-19473 SEAL, Oil
    SEAL, Oil
  • 24
    28-30281 KEY
    KEY
  • 25
    14-52553 TAB WASHER
    TAB WASHER
  • 26
    52622 COVER
    COVER
  • 27
    10-79953Q04 SCREW, (.375-16 x .250)
    SCREW, (.375-16 x .250)
  • 28
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 29
    12-32073 WASHER
    WASHER
  • 30
    11-858869 NUT, (.875-14)
    NUT, (.875-14)
  • 31
    45-47323 DRIVESHAFT
    DRIVESHAFT
  • 32
    15-39808A1 SHIM ASSEMBLY
    SHIM ASSEMBLY
  • 33
    31-47669A2 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 34
    23-47603 ELBOW
    ELBOW
  • 35
    15-39808A1 SHIM ASSEMBLY
    SHIM ASSEMBLY
  • 36
    12-56042 WASHER
    WASHER
  • 37
    11-34826 NUT (1.250-16)
    NUT (1.250-16)
  • 38
    25-20081 O-RING (Large)
    O-RING (Large)
  • 39
    47315 RETAINER
    RETAINER
  • 40
    25-45711 O-RING, (.612 x .103) (Small)
    O-RING, (.612 x .103) (Small)
  • 41
    11-82671013 NUT, (.375-24)
    NUT, (.375-24)
  • 42
    27-47317 GASKET
    GASKET
  • 43
    11-47302 NUT, (.562-18) Stainless Steel
    NUT, (.562-18) Stainless Steel
  • 44
    10-47557 SCREW, (.500-13 x 1.500)
    SCREW, (.500-13 x 1.500)
  • 45
    48018A1 THRUST HUB AND WASHER ASSEMBLY
    THRUST HUB AND WASHER ASSEMBLY
  • 46
    12-37763 WASHER, Thrust
    WASHER, Thrust
  • 47
    12-48014 WASHER
    WASHER
  • 48
    14-48012 TAB WASHER
    TAB WASHER
  • 49
    11-17844 NUT (1.250-12)
    NUT (1.250-12)
