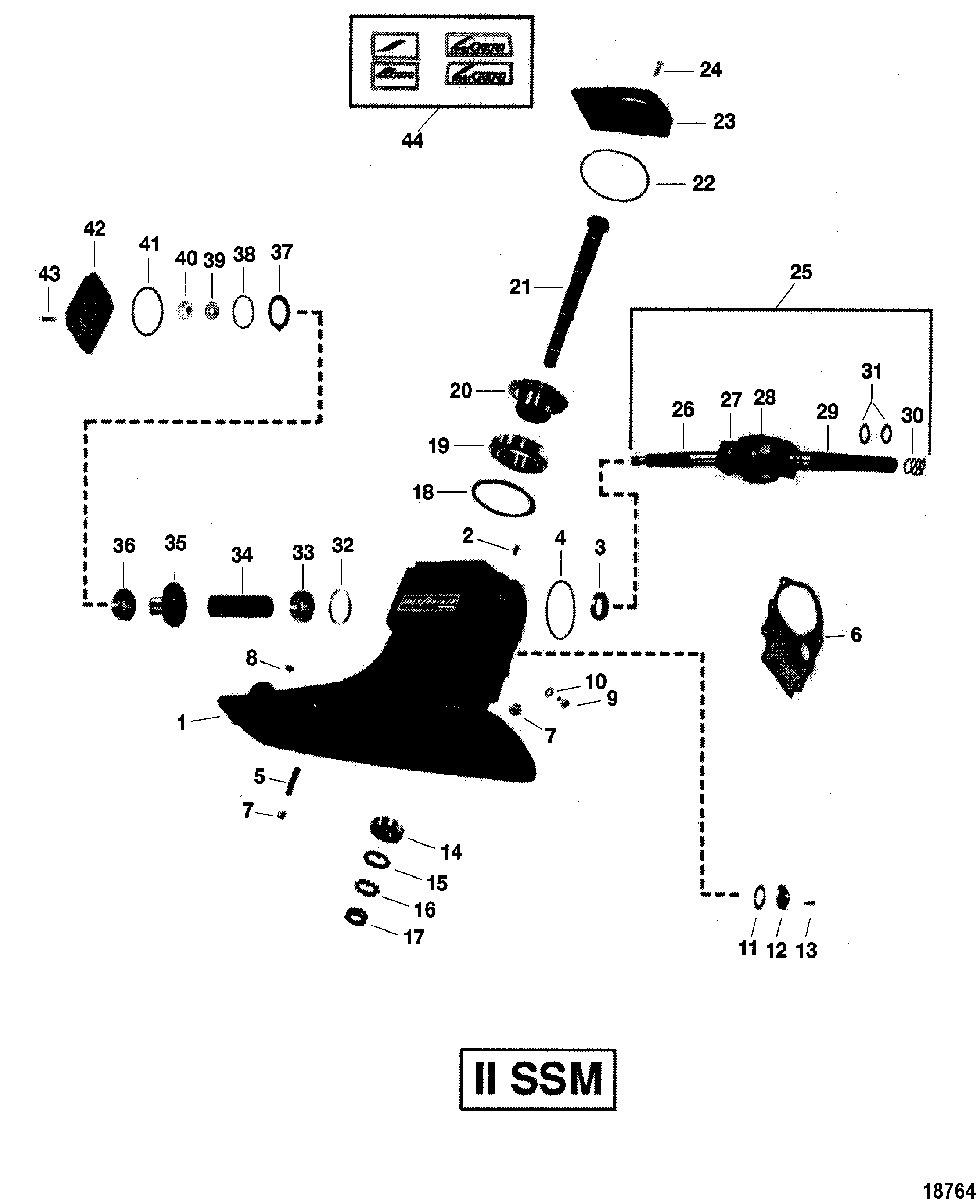

DRIVESHAFT HOUSING AND GEAR ASSEMBLY(II SSM) для Mercruiser - SSM II/III/IV/V 1982-1995 ALL THRU none

  • №
    Артикул
    Название
  • 1
    1571-4847A5 HOUSING ASSEMBLY, Driveshaft
    HOUSING ASSEMBLY, Driveshaft
  • 2
    10-21934 SCREW, (.375-16 x .500)
    SCREW, (.375-16 x .500)
  • 3
    26-62818 SEAL, Oil
    SEAL, Oil
  • 4
    25-62817 O-RING
    O-RING
  • 5
    16-57984 STUD (.437-20 x 2.500)
    STUD (.437-20 x 2.500)
  • 5
    16-57921 STUD, (.437-14/.437-20 x 4.00)
    STUD, (.437-14/.437-20 x 4.00)
  • 6
    71945 PLATE, Bell Housing To Driveshaft Housing
    PLATE, Bell Housing To Driveshaft Housing
  • 7
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • 8
    19-47579 PLUG
    PLUG
  • 9
    10-79953Q04 SCREW, (.375-16 x .250)
    SCREW, (.375-16 x .250)
  • 10
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 11
    27-669251 GASKET
    GASKET
  • 12
    89818 COVER
    COVER
  • 13
    10-55515 SCREW, (#10-32 x .750)
    SCREW, (#10-32 x .750)
  • 14
    31-38356A1 BEARING SET, Driveshaft
    BEARING SET, Driveshaft
  • 15
    12-62795 WASHER, Tab
    WASHER, Tab
  • 16
    13-62788 LOCKWASHER
    LOCKWASHER
  • 17
    11-41527T NUT
    NUT
  • 18
    15-846353A1 SHIM SET
    SHIM SET
  • 19
    31-62799A1 BEARING SET, Drive Gear
    BEARING SET, Drive Gear
  • 20
    43-62879T1 GEAR, Driven, Driven (2:1 Ratio)
    GEAR, Driven, Driven (2:1 Ratio)
  • 21
    45-62793T DRIVESHAFT
    DRIVESHAFT
  • 22
    25-67202 O-RING
    O-RING
  • 23
    62911T COVER
    COVER
  • 24
    10-35047 SCREW, (.375-16 x 1.250) Stainless Steel
    SCREW, (.375-16 x 1.250) Stainless Steel
  • 25
    62782A8 UNIVERSAL JOINT ASSEMBLY
    (FEMALE YOKE)
    UNIVERSAL JOINT ASSEMBLY
    (FEMALE YOKE)
  • 25
    62782A4 UNIVERSAL JOINT ASSEMBLY
    (MALE YOKE)
    UNIVERSAL JOINT ASSEMBLY
    (MALE YOKE)
  • 26
    62782A6 STUB ASSEMBLY (Gear End)
    STUB ASSEMBLY (Gear End)
  • 27
    75832T1 CROSS AND BEARING
    CROSS AND BEARING
  • 28
    393831 SOCKET, Center, Double
    SOCKET, Center, Double
  • 29
    62784A1 STUB ASSEMBLY
    (COUPLING END-FEMALE YOKE)
    STUB ASSEMBLY
    (COUPLING END-FEMALE YOKE)
  • 29
    57749A1 YOKE ASSEMBLY
    (COUPLING END-MALE YOKE)
    YOKE ASSEMBLY
    (COUPLING END-MALE YOKE)
  • 30
    24-62727 SPRING
    (COUPLING END-FEMALE YOKE)
    SPRING
    (COUPLING END-FEMALE YOKE)
  • 31
    25-25439 O-RING, (.862 x .103)
    (COUPLING END-MALE YOKE)
    O-RING, (.862 x .103)
    (COUPLING END-MALE YOKE)
  • 32
    15-62833A1 SHIM SET
    SHIM SET
  • 33
    31-38356A1 BEARING SET, Universal Joint
    BEARING SET, Universal Joint
  • 34
    23-62789 SPACER
    SPACER
  • 35
    43-62878 GEAR, Pinion (2:1 Ratio)
    GEAR, Pinion (2:1 Ratio)
  • 36
    31-8M0103475 BEARING ASSEMBLY, Tapered Roller, Pinion Gear
    BEARING ASSEMBLY, Tapered Roller, Pinion Gear
  • 37
    12-62786 WASHER, Thrust
    WASHER, Thrust
  • 38
    15-55499A1 SHIM ASSEMBLY
    SHIM ASSEMBLY
  • 39
    12-48912 WASHER
    WASHER
  • 40
    11-82671327 NUT (1.00-14)
    NUT (1.00-14)
  • 41
    25-39695 O-RING
    O-RING
  • 42
    62785T COVER
    COVER
  • 43
    10-35047 SCREW, (.375-16 x 1.250) Stainless Steel
    SCREW, (.375-16 x 1.250) Stainless Steel
  • 44
    37-14489A90 DECAL SET
    DECAL SET
  • -
    1571-8945A2 REBUILD KIT
    REBUILD KIT
