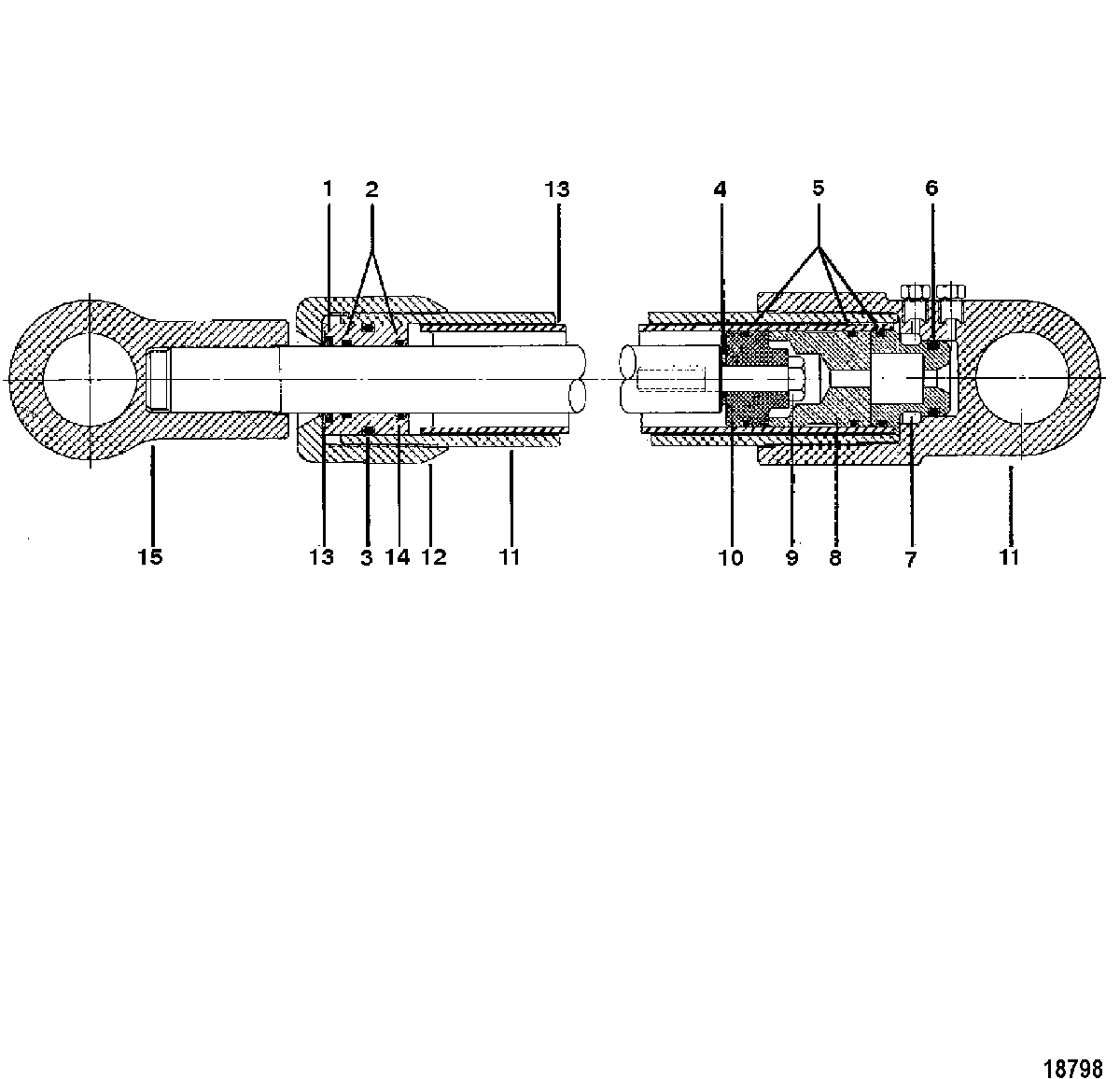

TRIM CYLINDER AND REPAIR KITS(III-IV-V) (1ST DESIGN) для Mercruiser - SSM II/III/IV/V 1982-1995 ALL THRU none

  • №
    Артикул
    Название
  • -
    25-47389A2 O-RING KIT
    O-RING KIT
  • 1
    NSS NOT SOLD SEPARATE, Rod Scraper
    NOT SOLD SEPARATE, Rod Scraper
  • 2
    NSS NOT SOLD SEPARATE, O-Ring (1.00 x 1.187 x .093)
    NOT SOLD SEPARATE, O-Ring (1.00 x 1.187 x .093)
  • 3
    NSS NOT SOLD SEPARATE, O-Ring(1.375 x 1.625 x .125)
    NOT SOLD SEPARATE, O-Ring(1.375 x 1.625 x .125)
  • 4
    NSS NOT SOLD SEPARATE, Sealing Washer
    NOT SOLD SEPARATE, Sealing Washer
  • 5
    NSS NOT SOLD SEPARATE, O-Ring(1.250 x 1.437 x .093)
    NOT SOLD SEPARATE, O-Ring(1.250 x 1.437 x .093)
  • 6
    NSS NOT SOLD SEPARATE, O-Ring(.875 x .125 x .125)
    NOT SOLD SEPARATE, O-Ring(.875 x .125 x .125)
  • 7
    47344 GUIDE, Inner Support
    GUIDE, Inner Support
  • 8
    88365 PISTON, Trim
    PISTON, Trim
  • 9
    10-35787 SCREW, (.375-16 x 2.250)
    SCREW, (.375-16 x 2.250)
  • 10
    86483T1 PISTON, Shock
    PISTON, Shock
  • 11
    47342A22 OUTER CYLINDER ASSEMBLY
    (USE WITH .875 DIA. ANCHOR PINS)
    OUTER CYLINDER ASSEMBLY
    (USE WITH .875 DIA. ANCHOR PINS)
  • 11
    816420A4 CYLINDER ASSEMBLY
    (USE WITH 1.00 DIA. ANCHOR PINS)
    CYLINDER ASSEMBLY
    (USE WITH 1.00 DIA. ANCHOR PINS)
  • 12
    55825A1 END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 13
    32-47387 TUBE ASSEMBLY, Inner Cylinder, Inner Cylinder (12.500 In.)
    TUBE ASSEMBLY, Inner Cylinder, Inner Cylinder (12.500 In.)
  • 14
    55824 BEARING, Piston Rod
    BEARING, Piston Rod
  • 15
    47376A2 PISTON/ROD ASSEMBLY, Power Trim
    (USE WITH .875 DIA. ANCHOR PINS)
    PISTON/ROD ASSEMBLY, Power Trim
    (USE WITH .875 DIA. ANCHOR PINS)
  • 15
    816421A2 ROD ASSEMBLY, Trim Piston
    (USE WITH 1.00 DIA. ANCHOR PINS)
    ROD ASSEMBLY, Trim Piston
    (USE WITH 1.00 DIA. ANCHOR PINS)
