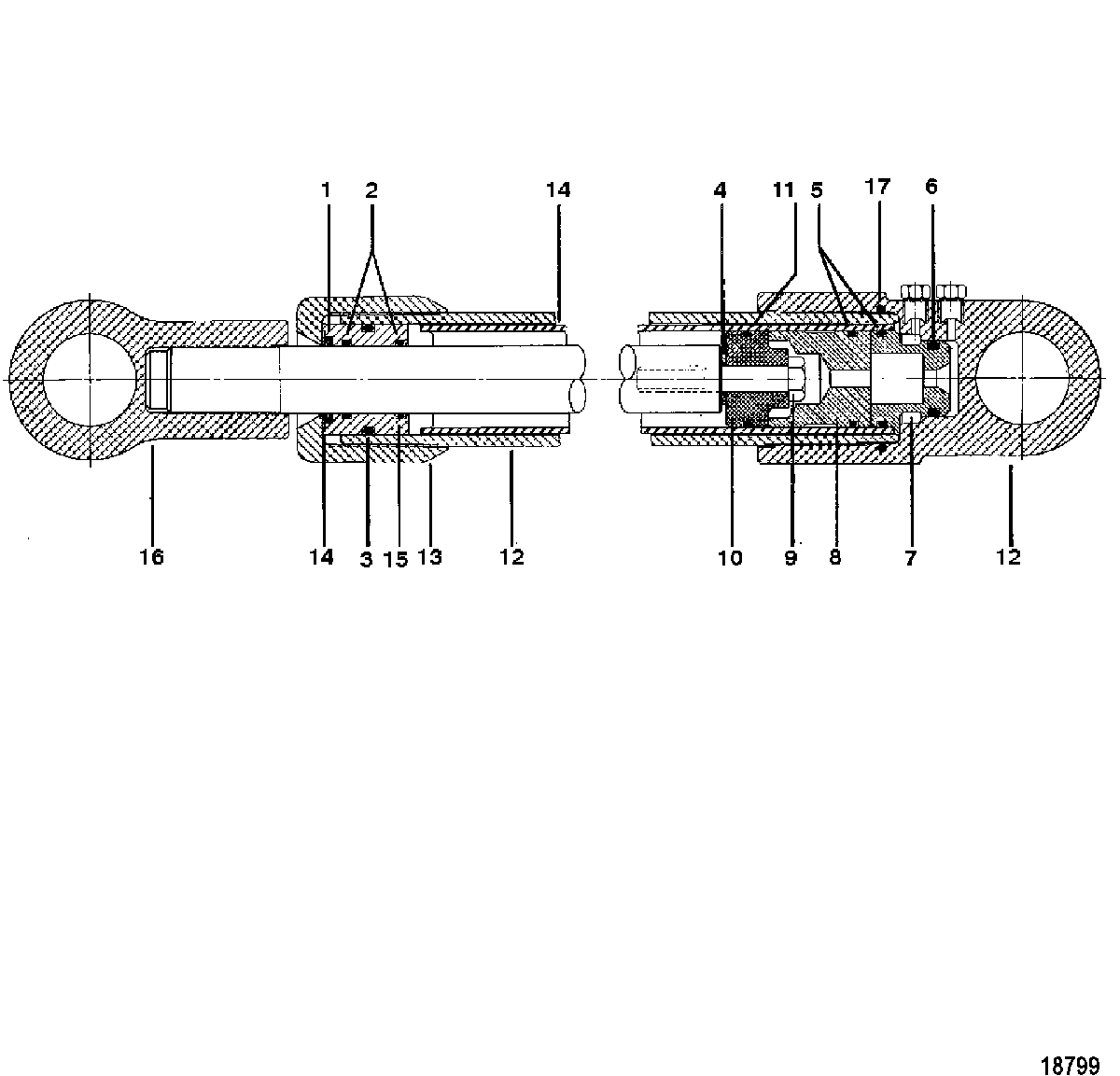

TRIM CYLINDER AND REPAIR KITS(III-IV-V) (2ND DESIGN) для Mercruiser - SSM II/III/IV/V 1982-1995 ALL THRU none

  • №
    Артикул
    Название
  • -
    25-47389A2 O-RING KIT
    O-RING KIT
  • 1
    NSS NOT SOLD SEPARATE, Rod Scrapper
    NOT SOLD SEPARATE, Rod Scrapper
  • 2
    NSS NOT SOLD SEPARATE, O-Ring (1.00 x 1.187 x .093)
    NOT SOLD SEPARATE, O-Ring (1.00 x 1.187 x .093)
  • 3
    NSS NOT SOLD SEPARATE, O-Ring (1.375 x 1.625 x .125)
    NOT SOLD SEPARATE, O-Ring (1.375 x 1.625 x .125)
  • 4
    NSS NOT SOLD SEPARATE, Sealing Washer
    NOT SOLD SEPARATE, Sealing Washer
  • 5
    NSS NOT SOLD SEPARATE, O-Ring (1.250 x 1.437 x .093)
    NOT SOLD SEPARATE, O-Ring (1.250 x 1.437 x .093)
  • 6
    NSS NOT SOLD SEPARATE, O-Ring (.875 x .125 x .125)
    NOT SOLD SEPARATE, O-Ring (.875 x .125 x .125)
  • 7
    47344 GUIDE, Inner Support
    GUIDE, Inner Support
  • 8
    88365 PISTON, Trim
    PISTON, Trim
  • 9
    10-35787 SCREW, (.375-16 x 2.250)
    SCREW, (.375-16 x 2.250)
  • 10
    86483T1 PISTON (Nonshock)
    PISTON (Nonshock)
  • 11
    25-813920 T RING, Piston
    T RING, Piston
  • 12
    47342A22 CYLINDER ASSEMBLY
    (USE WITH .875 DIA. ANCHOR PINS)
    CYLINDER ASSEMBLY
    (USE WITH .875 DIA. ANCHOR PINS)
  • 12
    816420A4 CYLINDER ASSEMBLY
    (USE WITH 1.00 DIA. ANCHOR PINS)
    CYLINDER ASSEMBLY
    (USE WITH 1.00 DIA. ANCHOR PINS)
  • 13
    55825A1 END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 14
    32-47387 TUBE, Inner Cylinder
    TUBE, Inner Cylinder
  • 15
    55824 BEARING, Piston Rod
    BEARING, Piston Rod
  • 16
    47376A2 PISTON/ROD ASSEMBLY, Power Trim
    (USE WITH .875 DIA. ANCHOR PINS)
    PISTON/ROD ASSEMBLY, Power Trim
    (USE WITH .875 DIA. ANCHOR PINS)
  • 16
    816421A2 ROD ASSEMBLY, Trim Piston
    (USE WITH 1.00 DIA. ANCHOR PINS)
    ROD ASSEMBLY, Trim Piston
    (USE WITH 1.00 DIA. ANCHOR PINS)
  • 17
    25-69387 O-RING
    O-RING
