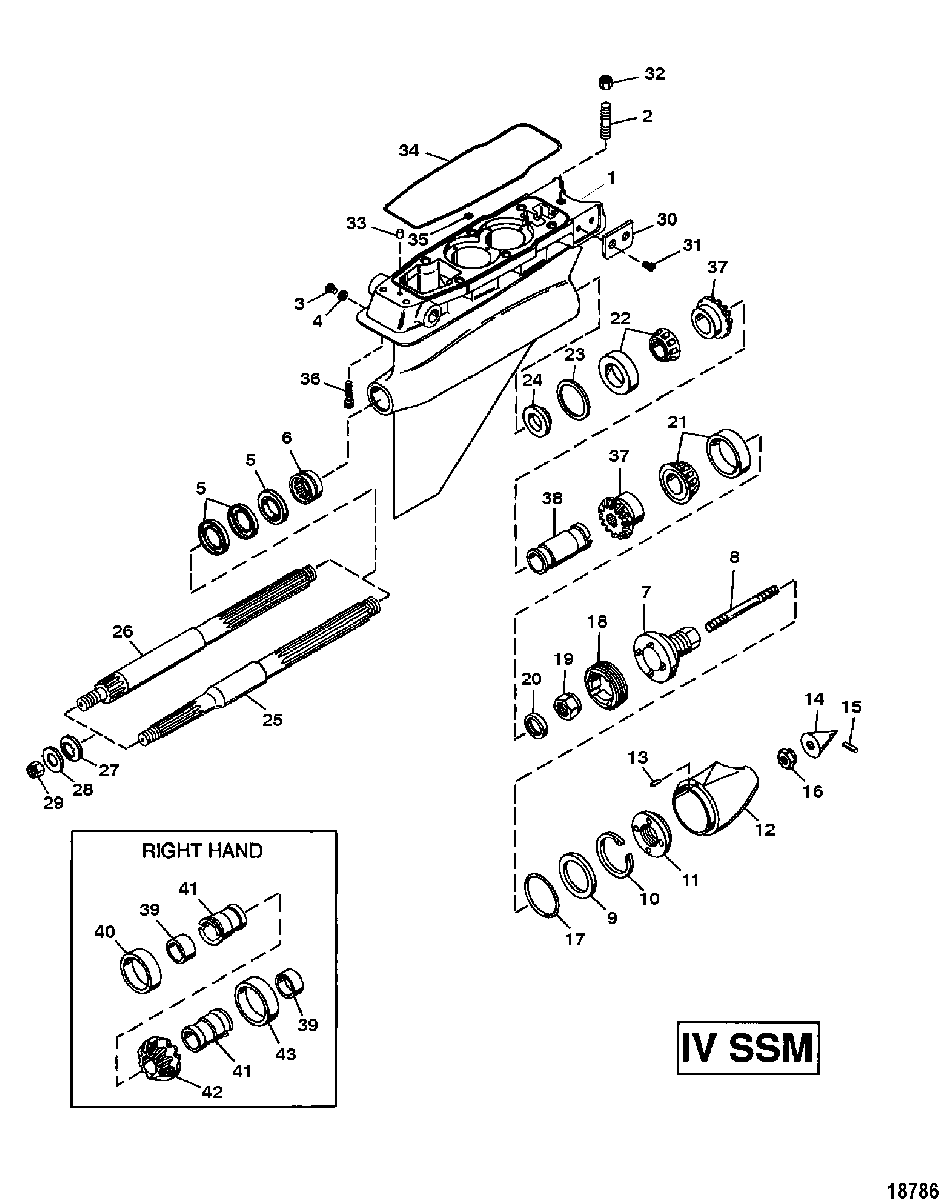

GEAR HOUSING ASSEMBLY(PROPSHAFT) (IV SSM) для Mercruiser - SSM II/III/IV/V 1982-1995 ALL THRU none

  • №
    Артикул
    Название
  • 1
    1673-812422A4 GEAR HOUSING ASSEMBLY
    (BASIC)
    GEAR HOUSING ASSEMBLY
    (BASIC)
  • 2
    16-57985 STUD (2.810)
    STUD (2.810)
  • 3
    10-79953Q04 SCREW, (.375-16 x .250), Vent
    SCREW, (.375-16 x .250), Vent
  • 4
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 5
    26-19473 SEAL, Oil
    SEAL, Oil
  • 6
    31-39832T BEARING, Roller
    BEARING, Roller
  • 7
    53061 ANCHOR, Stud
    ANCHOR, Stud
  • 8
    16-530641 STUD (7.280)
    STUD (7.280)
  • 9
    12-39821 WASHER
    WASHER
  • 10
    53-35128 RING, Retaining
    RING, Retaining
  • 11
    39803 COVER
    COVER
  • 12
    11353 NOSE CONE
    NOSE CONE
  • 13
    17-30282 PIN
    PIN
  • 14
    98036 CAP, Nose Cone
    CAP, Nose Cone
  • 15
    65700 PLUG
    PLUG
  • 16
    11-22339 NUT, (.625-18)
    NUT, (.625-18)
  • 17
    25-39828 O-RING
    O-RING
  • 18
    11-53060 NUT
    NUT
  • 19
    11-39825 NUT (1.250-12)
    NUT (1.250-12)
  • 20
    23-846409 WASHER
    WASHER
  • 21
    31-39772T1 BEARING, Roller
    BEARING, Roller
  • 22
    31-39770T1 BEARING, Roller
    BEARING, Roller
  • 23
    15-39809A1 SHIM SET
    SHIM SET
  • 24
    12-39818 WASHER
    WASHER
  • 25
    44-85187T PROPELLER SHAFT (1.370 OD)
    PROPELLER SHAFT (1.370 OD)
  • 26
    44-12049 PROPELLER SHAFT (1.750 OD)
    PROPELLER SHAFT (1.750 OD)
  • 27
    12-39820 WASHER
    WASHER
  • 28
    12-39817 WASHER, Special - Stainless Steel
    WASHER, Special - Stainless Steel
  • 29
    11-82671127 NUT (1.00-14)
    NUT (1.00-14)
  • 30
    113931 WEAR PAD
    WEAR PAD
  • 31
    10-11601 SCREW, (.312-18 x .750) Stainless Steel
    SCREW, (.312-18 x .750) Stainless Steel
  • 32
    11-47302 NUT, (.562-18) Stainless Steel
    NUT, (.562-18) Stainless Steel
  • 33
    17-43044 PIN, Dowel, Locating
    PIN, Dowel, Locating
  • 34
    25-120001 O-RING
    O-RING
  • 35
    25-36390 O-RING
    O-RING
  • 36
    10-873702 SCREW, (.500-13 x 3.00)
    SCREW, (.500-13 x 3.00)
  • 37
    43-16768A1 GEAR SET (Pinion and Drive)
    (LH - 1.00:1 RATIO)
    GEAR SET (Pinion and Drive)
    (LH - 1.00:1 RATIO)
  • 37
    43-78095A1 GEAR SET (Pinion and Drive)
    (LH - 1.125:1 RATIO)
    GEAR SET (Pinion and Drive)
    (LH - 1.125:1 RATIO)
  • 38
    23-53070 SPACER
    (LH GEAR SET)
    SPACER
    (LH GEAR SET)
  • 39
    23-53067 SPACER
    (RH GEAR SET)
    SPACER
    (RH GEAR SET)
  • 40
    23-53068 SPACER
    (RH GEAR SET)
    SPACER
    (RH GEAR SET)
  • 41
    91846 SPACER
    (RH GEAR SET)
    SPACER
    (RH GEAR SET)
  • 42
    43-16769A1 GEAR SET (Pinion and Drive)
    (RH - 1.00:1 RATIO)
    GEAR SET (Pinion and Drive)
    (RH - 1.00:1 RATIO)
  • 42
    43-78096A1 GEAR SET (Pinion and Drive)
    (RH - 1.125:1 RATIO)
    GEAR SET (Pinion and Drive)
    (RH - 1.125:1 RATIO)
  • 43
    23-53066 SPACER
    (RH GEAR SET)
    SPACER
    (RH GEAR SET)
  • -
    1664-8509A13 REBUILD KIT
    REBUILD KIT
