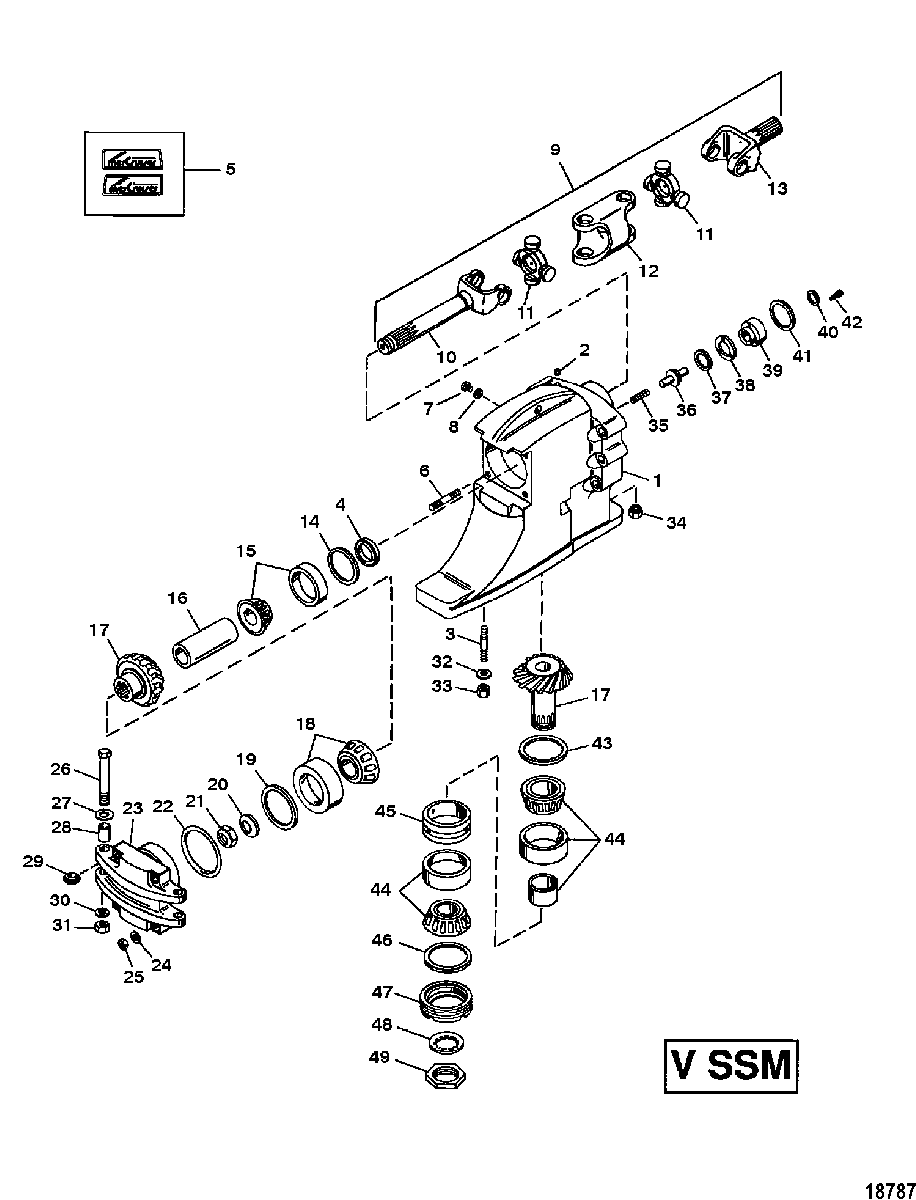

DRIVESHAFT HOUSING AND GEAR ASSY(V SSM) для Mercruiser - SSM II/III/IV/V 1982-1995 ALL THRU none

  • №
    Артикул
    Название
  • 1
    3509-9806A2 HOUSING ASSEMBLY, Driveshaft
    HOUSING ASSEMBLY, Driveshaft
  • 2
    22-56800 PLUG, Pipe (.0625-27)
    PLUG, Pipe (.0625-27)
  • 3
    16-57985 STUD (2.810)
    STUD (2.810)
  • 4
    26-38105 SEAL, Oil
    SEAL, Oil
  • 5
    37-14489A90 DECAL SET
    DECAL SET
  • 6
    16-13208 STUD
    STUD
  • 7
    22-8M0058389 SCREW, (.735-16), Vent (Magnetic)
    SCREW, (.735-16), Vent (Magnetic)
  • 8
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 9
    44253T1 UNIVERSAL JOINT ASSEMBLY
    UNIVERSAL JOINT ASSEMBLY
  • 10
    44271 YOKE (Driven End)
    YOKE (Driven End)
  • 11
    8M0085593 CROSS AND BEARING ASSEMBLY
    CROSS AND BEARING ASSEMBLY
  • 12
    63575T SOCKET
    SOCKET
  • 13
    44253 YOKE (Driving End)
    YOKE (Driving End)
  • 14
    15-36178A02 SHIM SET
    SHIM SET
  • 15
    31-39908T1 BEARING ASSEBMLY, Tapered Roller
    BEARING ASSEBMLY, Tapered Roller
  • 16
    23-8M0050924 SPACER
    SPACER
  • 17
    43-818653A2 GEAR SET (Pinion and Drive)
    (1.00:1 RATIO) (POLYGON DRIVESHAFT)
    GEAR SET (Pinion and Drive)
    (1.00:1 RATIO) (POLYGON DRIVESHAFT)
  • 17
    43-818654A2 GEAR SET (Pinion and Drive)
    (1.18:1 RATIO) (POLYGON DRIVESHAFT)
    GEAR SET (Pinion and Drive)
    (1.18:1 RATIO) (POLYGON DRIVESHAFT)
  • 17
    43-818655A2 GEAR SET (Pinion and Drive)
    (1.25:1 RATIO) (POLYGON DRIVESHAFT)
    GEAR SET (Pinion and Drive)
    (1.25:1 RATIO) (POLYGON DRIVESHAFT)
  • 17
    43-818656A2 GEAR SET (Pinion and Drive)
    (1.33:1 RATIO) (POLYGON DRIVESHAFT)
    GEAR SET (Pinion and Drive)
    (1.33:1 RATIO) (POLYGON DRIVESHAFT)
  • 17
    43-818657A2 GEAR SET (Pinion and Drive)
    (1.40:1 RATIO) (POLYGON DRIVESHAFT)
    GEAR SET (Pinion and Drive)
    (1.40:1 RATIO) (POLYGON DRIVESHAFT)
  • 17
    43-848150A2 GEAR SET (Pinion and Drive)
    (1.50:1 RATIO) (POLYGON DRIVESHAFT)
    GEAR SET (Pinion and Drive)
    (1.50:1 RATIO) (POLYGON DRIVESHAFT)
  • 17
    43-818653A1 GEAR SET (Pinion and Drive)
    (1.00:1 RATIO) (SPLINED DRIVESHAFT)
    GEAR SET (Pinion and Drive)
    (1.00:1 RATIO) (SPLINED DRIVESHAFT)
  • 17
    43-818654A1 GEAR SET (Pinion and Drive)
    (1.18:1 RATIO) (SPLINED DRIVESHAFT)
    GEAR SET (Pinion and Drive)
    (1.18:1 RATIO) (SPLINED DRIVESHAFT)
  • 17
    43-818655A1 GEAR SET (Pinion and Drive)
    (1.25:1 RATIO) (SPLINED DRIVESHAFT)
    GEAR SET (Pinion and Drive)
    (1.25:1 RATIO) (SPLINED DRIVESHAFT)
  • 17
    43-847823A1 GEAR SET (Pinion and Drive)
    (1.31:1 RATIO) (SPLINED DRIVESHAFT)
    GEAR SET (Pinion and Drive)
    (1.31:1 RATIO) (SPLINED DRIVESHAFT)
  • 17
    43-818656A2 GEAR SET (Pinion and Drive)
    (1.33:1 RATIO) (SPLINED DRIVESHAFT)
    GEAR SET (Pinion and Drive)
    (1.33:1 RATIO) (SPLINED DRIVESHAFT)
  • 17
    43-818657A1 GEAR SET (Pinion and Drive)
    (1.40:1 RATIO) (SPLINED DRIVESHAFT)
    GEAR SET (Pinion and Drive)
    (1.40:1 RATIO) (SPLINED DRIVESHAFT)
  • 17
    43-847825A1 GEAR SET (Pinion and Drive)
    (1.44:1 RATIO) (SPLINED DRIVESHAFT)
    GEAR SET (Pinion and Drive)
    (1.44:1 RATIO) (SPLINED DRIVESHAFT)
  • 17
    43-848150T1 GEAR SET (Pinion and Drive)
    (1.50:1 RATIO) (SPLINED DRIVESHAFT)
    GEAR SET (Pinion and Drive)
    (1.50:1 RATIO) (SPLINED DRIVESHAFT)
  • 18
    31-34804T3 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 19
    15-34822A1 SHIM SET
    SHIM SET
  • 20
    12-53212 WASHER
    WASHER
  • 21
    11-82671327 NUT (1.00-14)
    NUT (1.00-14)
  • 22
    25-47291 O-RING
    O-RING
  • 23
    12702T COVER (Rear)
    COVER (Rear)
  • 24
    12-540121 WASHER, (.530 x .880 x .104) 630 Stainless Steel
    WASHER, (.530 x .880 x .104) 630 Stainless Steel
  • 25
    11-35000 NUT, (.500-20)
    NUT, (.500-20)
  • 26
    10-677551 SCREW, (.500-20 x 4.500)
    SCREW, (.500-20 x 4.500)
  • 27
    12-540121 WASHER, (.530 x .880 x .104) 630 Stainless Steel
    WASHER, (.530 x .880 x .104) 630 Stainless Steel
  • 28
    23-85322 SPACER
    SPACER
  • 29
    23-840229 SPACER
    SPACER
  • 30
    12-24501 WASHER
    WASHER
  • 31
    11-35000 NUT, (.500-20)
    NUT, (.500-20)
  • 32
    12-180451 WASHER
    WASHER
  • 33
    11-47302 NUT, (.562-18) Stainless Steel
    NUT, (.562-18) Stainless Steel
  • 34
    11-47302 NUT, (.562-18) Stainless Steel
    NUT, (.562-18) Stainless Steel
  • 35
    24-48442 SPRING
    SPRING
  • 36
    20-48219 CHECK VALVE
    CHECK VALVE
  • 37
    25-48452 QUAD RING
    QUAD RING
  • 38
    27-669251 GASKET
    GASKET
  • 39
    12701A1 VALVE GUIDE ASSEMBLY
    VALVE GUIDE ASSEMBLY
  • 40
    26-66301 SEAL, Oil
    SEAL, Oil
  • 41
    25-33145 O-RING, (1.984 x .139)
    O-RING, (1.984 x .139)
  • 42
    10-56786 SCREW, (#8-32 x .750)
    SCREW, (#8-32 x .750)
  • 43
    15-19032A1 SHIM SET
    (.002 THRU .035 THICK)
    SHIM SET
    (.002 THRU .035 THICK)
  • 43
    15-19032A2 SHIM SET
    (.036 THRU .048 THICK)
    SHIM SET
    (.036 THRU .048 THICK)
  • 44
    31-19182T2 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 45
    23-18998 SPACER
    SPACER
  • 46
    23-18997 SPACER
    SPACER
  • 47
    816230 RETAINER
    RETAINER
  • 48
    12-817303 WASHER
    WASHER
  • 49
    11-19039 NUT (Special)
    NUT (Special)
