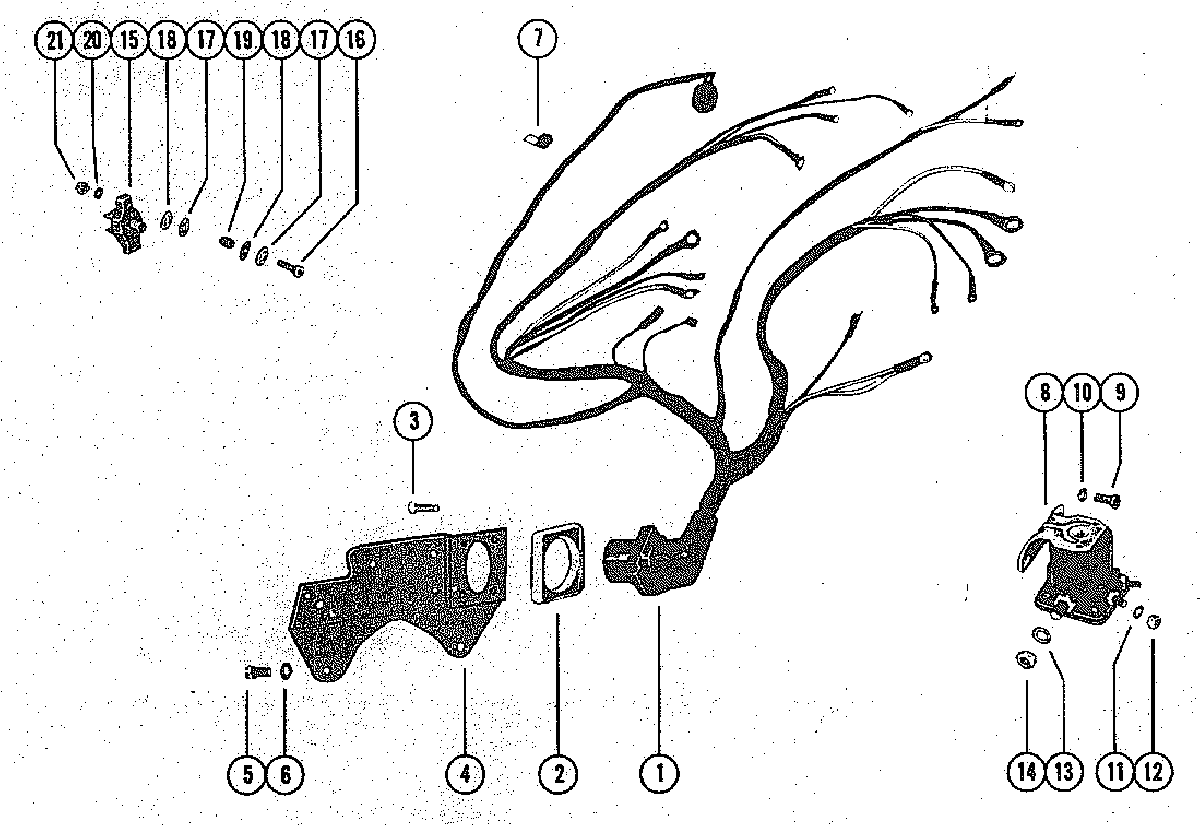

WIRING HARNESS, CIRCUIT BREAKER AND STARTER SOLENOID для Mercruiser - 280 TRS GM 350 V-8 1975-1976 4176250 THRU 4770199

  • №
    Артикул
    Название
  • 1
    84-70959A2 WIRING HARNESS
    WIRING HARNESS
  • 2
    26079A2 PLATE, WIRING HARNESS TO MOUNTING BRACKET
    PLATE, WIRING HARNESS TO MOUNTING BRACKET
  • 3
    10-46718 SCREW, WIRING HARNESS PLATE TO MOUNTING BRACKET (3/4")
    SCREW, WIRING HARNESS PLATE TO MOUNTING BRACKET (3/4")
  • 4
    87090T BRACKET, MOUNTING - HARNESS AND CIRCUIT BREAKER
    BRACKET, MOUNTING - HARNESS AND CIRCUIT BREAKER
  • 5
    10-805159 SCREW, MOUNTING BRACKET ATTACHING (1 1/4")
    SCREW, MOUNTING BRACKET ATTACHING (1 1/4")
  • 6
    13-32993 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 7
    64884 TAB, WIRING HARNESS
    TAB, WIRING HARNESS
  • 8
    89-853654A1 STARTER SOLENOID
    SERIAL 00000000-04499990
    STARTER SOLENOID
    SERIAL 00000000-04499990
  • 8
    89-853654A1 STARTER SOLENOID
    SERIAL 04499391-09999999
    STARTER SOLENOID
    SERIAL 04499391-09999999
  • 9
    10-69054 SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")
    SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")
  • 10
    13-26992 WASHER, STARTER SOLENOID SCREW
    WASHER, STARTER SOLENOID SCREW
  • 11
    13-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
    LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
  • 12
    11-68219 NUT, STARTER SOLENOID TERMINAL (10-32)
    NUT, STARTER SOLENOID TERMINAL (10-32)
  • 13
    13-26993 LOCKWASHER, SATARTER SOLENOID TERMINAL (5/16")
    LOCKWASHER, SATARTER SOLENOID TERMINAL (5/16")
  • 14
    11-68292 NUT, STARTER SOLENOID TERMINAL (5/16")
    NUT, STARTER SOLENOID TERMINAL (5/16")
  • 15
    88-65093 CIRCUIT BREAKER
    CIRCUIT BREAKER
  • --
    11-68219 NUT, CIRCUIT BREAKER TERMINAL
    NUT, CIRCUIT BREAKER TERMINAL
  • --
    13-26996 LOCKWASHER, CIRCUIT BREAKER TERMINAL
    LOCKWASHER, CIRCUIT BREAKER TERMINAL
  • 16
    10-47618 SCREW, CIRCUIT BREAKER TO BRACKET (1")
    SCREW, CIRCUIT BREAKER TO BRACKET (1")
  • 17
    25-61999 GROMMET, CIRCUIT BRAKER SCREW
    GROMMET, CIRCUIT BRAKER SCREW
  • 18
    12-47960 WASHER, CIRCUIT BREAKER SCREW
    WASHER, CIRCUIT BREAKER SCREW
  • 19
    23-61998 SPACER, CIRCUIT BREAKER GROMMET
    SPACER, CIRCUIT BREAKER GROMMET
  • 20
    12-30164 WASHER, CIRCUIT BREAKER SCREW
    WASHER, CIRCUIT BREAKER SCREW
  • 21
    11-46438 NUT, CIRCUIT BREAKER SCREW
    NUT, CIRCUIT BREAKER SCREW
