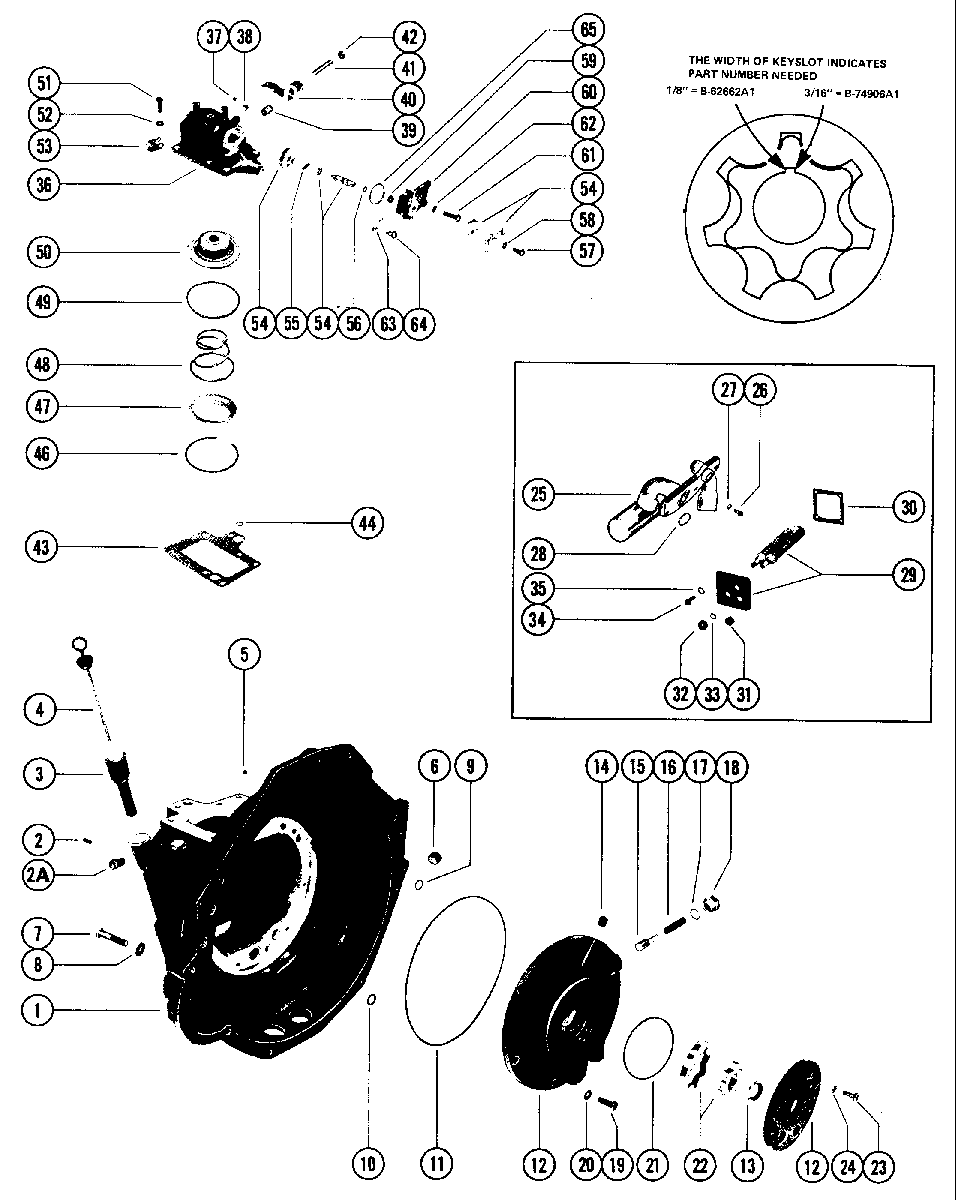

TRANSMISSION ASSEMBLY (STERN DRIVE) PAGE 1 для Mercruiser - 280 TRS GM 350 V-8 1975-1976 4176250 THRU 4770199

  • №
    Артикул
    Название
  • -
    109ASLI TRANSMISSION ASSEMBLY, COMPLETE
    B-70711A6 TRANSMISSION ASSEMBLY INCLUDES ALL PARTS FROM REFERENCE #1 THRU #109 AS LISTED ON PAGES 34 AND 35.
    TRANSMISSION ASSEMBLY, COMPLETE
    B-70711A6 TRANSMISSION ASSEMBLY INCLUDES ALL PARTS FROM REFERENCE #1 THRU #109 AS LISTED ON PAGES 34 AND 35.
  • 1
    76925A4 HOUSING ASSEMBLY, TRANSMISSION
    HOUSING ASSEMBLY, TRANSMISSION
  • 2
    90-8M0143356 PIN, SPRING - TRANSMISSION HOUSING
    PIN, SPRING - TRANSMISSION HOUSING
  • 2A
    22-47902 VENT, TRANSMISSION HOUSING
    VENT, TRANSMISSION HOUSING
  • 3
    64090A1 TUBE ASSEMBLY, DIPSTICK
    TUBE ASSEMBLY, DIPSTICK
  • 4
    63037 DIPSTICK
    DIPSTICK
  • 5
    90-8M0143356 BALL, TRANSMISSION HOUSING (1/4")
    BALL, TRANSMISSION HOUSING (1/4")
  • 6
    22-36373 PLUG, PIPE - TRANSMISSION HOUSING
    PLUG, PIPE - TRANSMISSION HOUSING
  • 7
    10-34354 SCREW, TRANSMISSION HOUSING TO ENGINE (1 1/2")
    NOT INCLUDED WITH TRANSMISSION ASSEMBLY
    SCREW, TRANSMISSION HOUSING TO ENGINE (1 1/2")
    NOT INCLUDED WITH TRANSMISSION ASSEMBLY
  • 7
    10-32132 SCREW, TRANSMISSION HOUSING TO ENGINE (1 3/4")
    NOT INCLUDED WITH TRANSMISSION ASSEMBLY
    SCREW, TRANSMISSION HOUSING TO ENGINE (1 3/4")
    NOT INCLUDED WITH TRANSMISSION ASSEMBLY
  • 8
    13-35048 LOCKWASHER, TRANSMISSION HOUSING SCREW
    NOT INCLUDED WITH TRANSMISSION ASSEMBLY
    LOCKWASHER, TRANSMISSION HOUSING SCREW
    NOT INCLUDED WITH TRANSMISSION ASSEMBLY
  • 9
    90-8M0143356 "O" RING, PUMP TO TRANSMISSION HOUSING (1/2" O.D.)
    "O" RING, PUMP TO TRANSMISSION HOUSING (1/2" O.D.)
  • 10
    90-8M0143356 "O" RING, PUMP TO TRANSMISSION HOUSING (1" O.D.)
    "O" RING, PUMP TO TRANSMISSION HOUSING (1" O.D.)
  • 11
    90-8M0143356 "O" RING, PUMP TO TRANSMISSION HOUSING (9" O.D.)
    "O" RING, PUMP TO TRANSMISSION HOUSING (9" O.D.)
  • 12
    87814A2 PUMP ASSEMBLY
    PUMP ASSEMBLY
  • 13
    90-8M0143356 SEAL, PUMP COVER
    SEAL, PUMP COVER
  • 14
    22-73379 PLUG, PUMP
    PLUG, PUMP
  • 15
    62722 PISTON, RELIEF VALVE
    PISTON, RELIEF VALVE
  • 16
    24-62790 SPRING, RELIEF VALVE PISTON
    SPRING, RELIEF VALVE PISTON
  • 17
    90-8M0143356 "O" RING, PUMP PLUG (3/4" O.D.)
    "O" RING, PUMP PLUG (3/4" O.D.)
  • 18
    19-62753 PLUG, PUMP
    PLUG, PUMP
  • 19
    10-35386 SCREW, PUMP TO TRANSMISSION HOUSING (1")
    SCREW, PUMP TO TRANSMISSION HOUSING (1")
  • 19
    10-31984 SCREW, PUMP TO TRANSMISSION HOUSING (1 3/8")
    SCREW, PUMP TO TRANSMISSION HOUSING (1 3/8")
  • 20
    90-8M0143356 WASHER, SEALING - PUMP SCREW
    WASHER, SEALING - PUMP SCREW
  • 21
    90-8M0143356 "O" RING, PUMP (3 7/16" O.D.)
    "O" RING, PUMP (3 7/16" O.D.)
  • 22
    87814A2 PUMP ASSEMBLY, GEROTOR
    SEE NOTE
    PUMP ASSEMBLY, GEROTOR
    SEE NOTE
  • 22
    87814A2 PUMP ASSEMBLY, GEROTOR
    SEE NOTE
    PUMP ASSEMBLY, GEROTOR
    SEE NOTE
  • 23
    10-60300 SCREW, PUMP ATTACHING (3/4")
    SCREW, PUMP ATTACHING (3/4")
  • 24
    13-26992 LOCKWASHER, PUMP SCREW
    LOCKWASHER, PUMP SCREW
  • 25
    63127A1 FLANGE ASSEMBLY, OIL COOLER
    FLANGE ASSEMBLY, OIL COOLER
  • 26
    10-66137 SCREW, FLANGE TO TRANSMISSION HOUSING (1/2")
    SCREW, FLANGE TO TRANSMISSION HOUSING (1/2")
  • 27
    13-26992 LOCKWASHER, FLANGE SCREW
    LOCKWASHER, FLANGE SCREW
  • 28
    90-8M0143356 "O" RING, FLANGE TO TRANSMISSION TO HOUSING (1" O.D.)
    "O" RING, FLANGE TO TRANSMISSION TO HOUSING (1" O.D.)
  • 29
    66515A2 COVER ASSEMBLY, OIL COOLER
    COVER ASSEMBLY, OIL COOLER
  • 30
    27-62724 GASKET, OIL COOLER COVER
    GASKET, OIL COOLER COVER
  • 31
    22-36373 PLUG, PIPE - COVER
    PLUG, PIPE - COVER
  • 32
    11-21612 NUT, JAM - OIL COOLER
    NUT, JAM - OIL COOLER
  • 33
    90-8M0143356 "O" RING, OIL COOLER JAM NUT (9/16" O.D.)
    "O" RING, OIL COOLER JAM NUT (9/16" O.D.)
  • 34
    10-60300 SCREW, COVER TO TRANSMISSION HOUSING (3/4")
    SCREW, COVER TO TRANSMISSION HOUSING (3/4")
  • 35
    13-26992 LOCKWASHER, COVER SCREW
    LOCKWASHER, COVER SCREW
  • 36
    62740A2 CONTROL VALVE ASSEMLBY
    CONTROL VALVE ASSEMLBY
  • 37
    90-8M0143356 BALL, CONTROL VALVE (1/4")
    BALL, CONTROL VALVE (1/4")
  • 38
    22-390721 PLUG, CONTROL VALVE
    PLUG, CONTROL VALVE
  • 39
    23-47797 BUSHING, REVERSE CLUTCH LEVER
    BUSHING, REVERSE CLUTCH LEVER
  • 40
    62735A1 LEVER, REVERSE CLUTCH
    LEVER, REVERSE CLUTCH
  • 41
    17-62730 PIN, LEVER TO CONTROL VALVE
    PIN, LEVER TO CONTROL VALVE
  • 42
    90-8M0143356 PLUG, EXPANSION - CONTROL VALVE (9/16")
    PLUG, EXPANSION - CONTROL VALVE (9/16")
  • 43
    90-8M0143356 GASKET, CONTROL VALVE
    GASKET, CONTROL VALVE
  • 44
    90-8M0143356 "O" RING, CONTROL VALVE (9/16" O.D.)
    "O" RING, CONTROL VALVE (9/16" O.D.)
  • 46
    90-8M0143356 SNAP RING
    SNAP RING
  • 47
    62665 RETAINER, SPRING
    RETAINER, SPRING
  • 48
    24-62677 SPRING, SERVO PISTON
    SPRING, SERVO PISTON
  • 49
    90-8M0143356 "O" RING, ACCUMULATOR PISTON
    "O" RING, ACCUMULATOR PISTON
  • 50
    66981A2 PISTON, SERVO
    PISTON, SERVO
  • 51
    10-35386 SCREW, CONTROL VALVE TO TRANSMISSION HOUSING (1")
    SCREW, CONTROL VALVE TO TRANSMISSION HOUSING (1")
  • 52
    13-39107 LOCKWASHER, CONTROL VALVE SCREW
    LOCKWASHER, CONTROL VALVE SCREW
  • 53
    54-47483 "J" CLAMP, CONTROL VALVE SCREW
    "J" CLAMP, CONTROL VALVE SCREW
  • 54
    65080A1 SHAFT ASSEMBLY, CONTROL VALVE
    SHAFT ASSEMBLY, CONTROL VALVE
  • 55
    17-24800 ROLL PIN, CONTROL SHAFT
    ROLL PIN, CONTROL SHAFT
  • 56
    90-8M0143356 "O" RING, CONTROL SHAFT (7/16" O.D.)
    "O" RING, CONTROL SHAFT (7/16" O.D.)
  • 57
    10-32417 SCREW, LINK AND CAM TO CONTROL SHAFT (5/8")
    SCREW, LINK AND CAM TO CONTROL SHAFT (5/8")
  • 58
    13-26992 LOCKWASHER, LINK AND CAM SCREW
    LOCKWASHER, LINK AND CAM SCREW
  • 59
    12-71836 WASHER, CONTROL VALVE SHAFT
    WASHER, CONTROL VALVE SHAFT
  • 60
    62747 CAP, CONTROL VALVE
    CAP, CONTROL VALVE
  • 61
    10-65027 SCREW, CAP TO CONTROL VALVE (1")
    SCREW, CAP TO CONTROL VALVE (1")
  • 62
    13-26992 LOCKWASHER, CAM SCREW
    LOCKWASHER, CAM SCREW
  • 63
    62742 CAM FOLLOWER
    CAM FOLLOWER
  • 64
    10-55298 SCREW, CAM FOLLOWER TO CAP (1/2")
    SCREW, CAM FOLLOWER TO CAP (1/2")
  • 65
    90-8M0143356 "O" RING, CONTROL VALVE CAP (1 9/16" O.D.)
    "O" RING, CONTROL VALVE CAP (1 9/16" O.D.)
