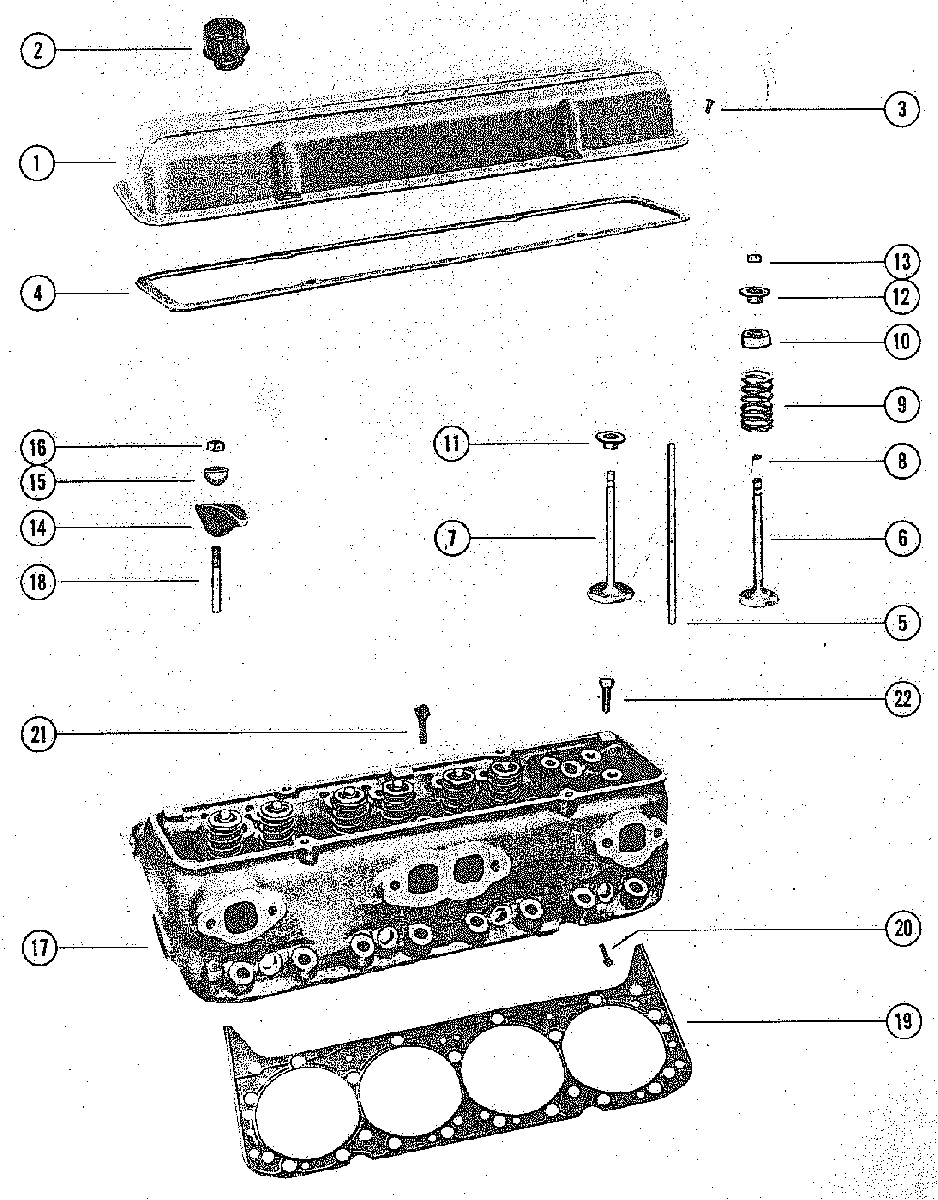

ROCKER COVER AND CYLINDER HEAD для Mercruiser - 280 TRS GM 350 V-8 1975-1976 4176250 THRU 4770199

  • №
    Артикул
    Название
  • 1
    72655 COVER, ROCKER (PORT)
    COVER, ROCKER (PORT)
  • 1
    72660 COVER, ROCKER (STARBOARD)
    COVER, ROCKER (STARBOARD)
  • 2
    52549 CAP, OIL FILLER
    CAP, OIL FILLER
  • -
    37-72766 DECAL, CIRCULAR
    SERIAL 04499780 AND UP
    DECAL, CIRCULAR
    SERIAL 04499780 AND UP
  • -
    37-77252 DECAL, CIRCULAR - WITH WAVES
    SERIAL 04499781 AND UP
    DECAL, CIRCULAR - WITH WAVES
    SERIAL 04499781 AND UP
  • -
    37-71888 DECAL, ROCKER COVER (280 H.P.)
    SERIAL 04499780 AND BELOW
    DECAL, ROCKER COVER (280 H.P.)
    SERIAL 04499780 AND BELOW
  • 3
    10-45487 SCREW, ROCKER VALVE COVER TO CYLINDER HEAD (1/2")
    SCREW, ROCKER VALVE COVER TO CYLINDER HEAD (1/2")
  • 4
    27-11999 GASKET, ROCKER VALVE COVER
    GASKET, ROCKER VALVE COVER
  • 5
    99948 ROD, VALVE PUSH
    ROD, VALVE PUSH
  • 6
    35323 VALVE, EXHAUST (STANDARD)
    VALVE, EXHAUST (STANDARD)
  • 6
    49076 VALVE, EXHAUST (.015 O.S.)
    VALVE, EXHAUST (.015 O.S.)
  • 7
    97661 VALVE, INLET (STANDARD)
    VALVE, INLET (STANDARD)
  • 7
    97662 VALVE, INLET (.015 O.S.)
    VALVE, INLET (.015 O.S.)
  • 8
    26-34217 SEAL, VALVE
    SEAL, VALVE
  • 9
    24-48347 SPRING, VALVE (INLET)
    SPRING, VALVE (INLET)
  • 9
    24-72642 SPRING, VALVE (EXHAUST)
    SPRING, VALVE (EXHAUST)
  • 10
    34518001 SHIELD, VALVE SPRING CAP
    SHIELD, VALVE SPRING CAP
  • 11
    48348 CAP, INLET VALVE
    CAP, INLET VALVE
  • 12
    11965 ROTATOR ASS'Y, SPRING - EXHAUST
    SERIAL 04625709 AND BELOW
    ROTATOR ASS'Y, SPRING - EXHAUST
    SERIAL 04625709 AND BELOW
  • 13
    28-547971 KEY, VALVE STEM
    KEY, VALVE STEM
  • 14
    35329 ARM, ROCKER VALVE
    ARM, ROCKER VALVE
  • 15
    35331 BALL UNIT, ROCKER VALVE ARM
    BALL UNIT, ROCKER VALVE ARM
  • 16
    11-34516 NUT, ROCKER VALVE ARM STUD
    NUT, ROCKER VALVE ARM STUD
  • 17
    938-7499 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 18
    16-34522 STUD, ROCKER VALVE ARM (.003 O.S.)
    STUD, ROCKER VALVE ARM (.003 O.S.)
  • 18
    16-34521 STUD, ROCKER VALVE ARM (.013 O.S.)
    STUD, ROCKER VALVE ARM (.013 O.S.)
  • 19
    27-75611001 GASKET, CYLINDER HEAD
    SERIAL 04625709 AND BELOW
    GASKET, CYLINDER HEAD
    SERIAL 04625709 AND BELOW
  • 19
    27-75611001 GASKET, CYLINDER HEAD
    SERIAL 04625710 AND UP
    GASKET, CYLINDER HEAD
    SERIAL 04625710 AND UP
  • 20
    10-11968 BOLT, CYLINDER HEAD TO CYLINDER BLOCK (1 3/4")
    BOLT, CYLINDER HEAD TO CYLINDER BLOCK (1 3/4")
  • 21
    10-119671 BOLT, CYLINDER HEAD TO CYLINDER BLOCK (3")
    BOLT, CYLINDER HEAD TO CYLINDER BLOCK (3")
  • 22
    10-11966 BOLT, CYLINDER HEAD TO CYLINDER BLOCK (3 3/4")
    BOLT, CYLINDER HEAD TO CYLINDER BLOCK (3 3/4")
