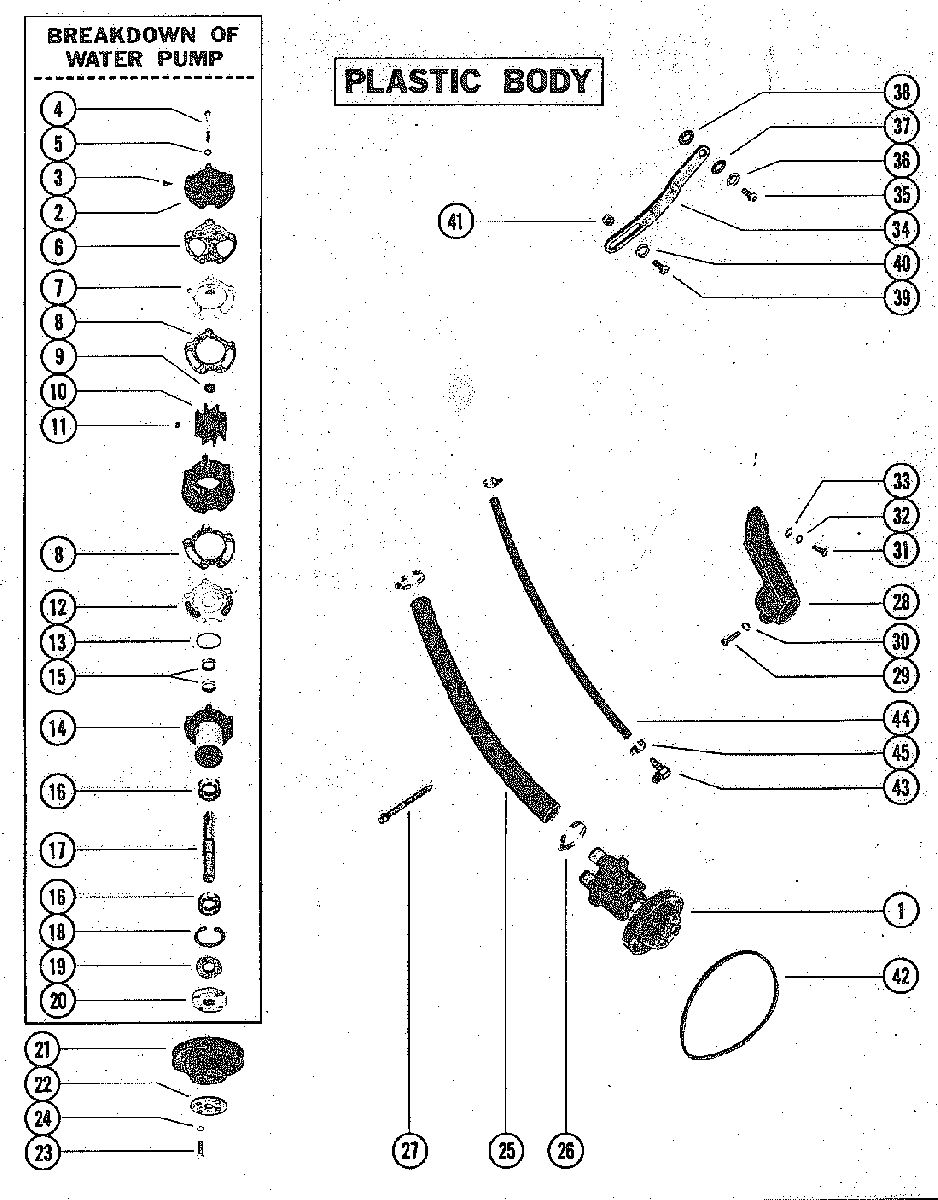

WATER PUMP ASSEMBLY PLASTIC BODY для Mercruiser - 280 TRS GM 350 V-8 1975-1976 4176250 THRU 4770199

  • №
    Артикул
    Название
  • 1
    46-72774A1 WATER PUMP ASSEMBLY - PLASTIC BODY
    WATER PUMP ASSEMBLY - PLASTIC BODY
  • 2
    87631A5 COVER, WATER PUMP
    COVER, WATER PUMP
  • 3
    10-28642 SCREW, WATER PUMP SLEEVE (1/4")
    SCREW, WATER PUMP SLEEVE (1/4")
  • 4
    10-63328 SCREW, COVER TO BODY (3")
    SCREW, COVER TO BODY (3")
  • 5
    12-20084 WASHER, COVER TO BODY SCREW
    WASHER, COVER TO BODY SCREW
  • 6
    27-8052151 GASKET, COVER TO OUTER WEAR PLATE
    GASKET, COVER TO OUTER WEAR PLATE
  • 7
    94916 WEAR PLATE
    WEAR PLATE
  • 8
    27-94914 GASKET, BODY TO WEAR PLATE
    GASKET, BODY TO WEAR PLATE
  • 9
    19-59504 PLUG, IMPELLER
    PLUG, IMPELLER
  • 10
    47-59362T1 IMPELLER ASSEMBLY
    IMPELLER ASSEMBLY
  • 11
    28-8M0032837 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 12
    94576 WEAR PLATE
    WEAR PLATE
  • 13
    25-37340 "O" RING, PUMP HOUSING TO INNER WEAR PLATE
    "O" RING, PUMP HOUSING TO INNER WEAR PLATE
  • 14
    46-94913A1 PUMP HOUSING
    PUMP HOUSING
  • 15
    26-90562 OIL SEAL, WATER PUMP SHAFT
    OIL SEAL, WATER PUMP SHAFT
  • 16
    30-72961 BALL BEARING, WATER PUMP SHAFT
    BALL BEARING, WATER PUMP SHAFT
  • 17
    59501A1 SHAFT, WATER PUMP
    SHAFT, WATER PUMP
  • 18
    53-23720 RING, SNAP - BALL BEARING RETAINING
    RING, SNAP - BALL BEARING RETAINING
  • 19
    26-72785 OIL SEAL, WATER PUMP SHAFT
    OIL SEAL, WATER PUMP SHAFT
  • 20
    47530 HUB, WATER PUMP PULLEY
    HUB, WATER PUMP PULLEY
  • 21
    73798A1 PULLEY, WATER PUMP
    PULLEY, WATER PUMP
  • 22
    12-52865 CLAMPING RING, PUMP PULLEY
    CLAMPING RING, PUMP PULLEY
  • 23
    10-47277 SCREW, PULLEY TO WATER PUMP (3/4")
    SCREW, PULLEY TO WATER PUMP (3/4")
  • 24
    13-39107 LOCKWASHER, WATER PUMP PULLEY SCREW
    LOCKWASHER, WATER PUMP PULLEY SCREW
  • 25
    32-57230 HOSE, WATER PUMP TO OIL COOLER
    WITH POWER STEERING
    HOSE, WATER PUMP TO OIL COOLER
    WITH POWER STEERING
  • 25
    32-49044 HOSE, PUMP TO THERMOSTAT HOUSING
    WITHOUT POWER STEERING
    HOSE, PUMP TO THERMOSTAT HOUSING
    WITHOUT POWER STEERING
  • 26
    54-815504220 CLAMP, WATER PUMP HOSE
    CLAMP, WATER PUMP HOSE
  • 27
    62711 STA-STRAP, HOSE ATTACHING
    STA-STRAP, HOSE ATTACHING
  • 28
    47488A1 BRACKET, WATER PUMP
    BRACKET, WATER PUMP
  • 29
    10-34354 SCREW, WATER PUMP BRACKET CLAMPING (1 1/2")
    SCREW, WATER PUMP BRACKET CLAMPING (1 1/2")
  • 30
    13-35048 LOCKWASHER, WATER PUMP BRACKET SCREW
    LOCKWASHER, WATER PUMP BRACKET SCREW
  • 31
    10-34353 SCREW, WATER PUMP BRACKET TO ENGINE (1")
    SCREW, WATER PUMP BRACKET TO ENGINE (1")
  • 32
    13-35048 LOCKWASHER, WATER PUMP BRACKET SCREW
    LOCKWASHER, WATER PUMP BRACKET SCREW
  • 33
    12-20553 WASHER, WATER PUMP BRACKET SCREW
    WASHER, WATER PUMP BRACKET SCREW
  • 34
    76739 BRACE, WATER PUMP ADJUSTING
    WITH POWER STEERING
    BRACE, WATER PUMP ADJUSTING
    WITH POWER STEERING
  • 34
    71648 BRACE, WATER PUMP ADJUSTING
    WITHOUT POWER STEERING
    BRACE, WATER PUMP ADJUSTING
    WITHOUT POWER STEERING
  • 35
    10-34353 SCREW, BRACE TO STEERING PUMP (1")
    WITH POWER STEERING
    SCREW, BRACE TO STEERING PUMP (1")
    WITH POWER STEERING
  • 35
    10-76926 SCREW, BRACE TO STEERING PUMP (7/8")
    WITHOUT POWER STEERING
    SCREW, BRACE TO STEERING PUMP (7/8")
    WITHOUT POWER STEERING
  • 36
    13-35048 LOCKWASHER, ADJUSTING BRACE SCREW
    LOCKWASHER, ADJUSTING BRACE SCREW
  • 37
    12-34714 WASHER, ADJUSTING BRACE SCREW
    WASHER, ADJUSTING BRACE SCREW
  • 38
    23-72057 SPACER, ADJUSTING BRACE SCREW
    WITH POWER STEERING
    SPACER, ADJUSTING BRACE SCREW
    WITH POWER STEERING
  • 39
    10-35786 SCREW, ADJUSTING BRACE TO BRACKET SCREW (1")
    SCREW, ADJUSTING BRACE TO BRACKET SCREW (1")
  • 40
    13-35048 LOCKWASHER, ADJUSTING BRACE SCREW
    LOCKWASHER, ADJUSTING BRACE SCREW
  • 41
    11-46335 NUT, ADJUSTING BRACE SCREW
    NUT, ADJUSTING BRACE SCREW
  • 42
    57-74271Q BELT, WATER PUMP
    BELT, WATER PUMP
  • 43
    22-629101 FITTING, WATER PUMP BODY
    FITTING, WATER PUMP BODY
  • 44
    32-629872 HOSE, WATER PUMP TRANSMISSION COOLER (34 1/2")
    HOSE, WATER PUMP TRANSMISSION COOLER (34 1/2")
  • 45
    54-815504310 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
