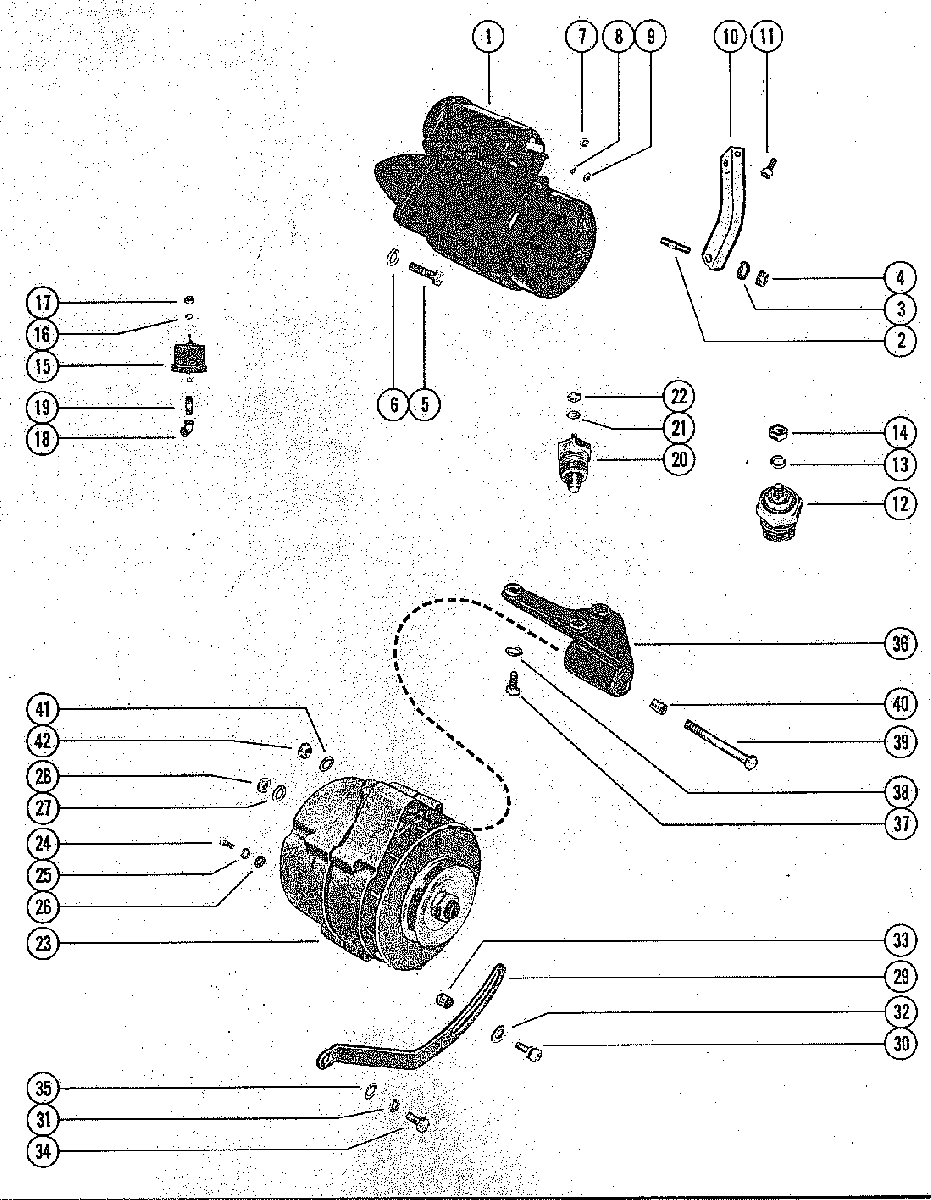

STARTER MOTOR AND ALTERNATOR для Mercruiser - 280 TRS GM 350 V-8 1975-1976 4176250 THRU 4770199

  • №
    Артикул
    Название
  • 1
    50-8M0090697 STARTER MOTOR ASSEMBLY
    FOR BREAKDOWN OF STARTER MOTOR AND ALTERNATOR, SEE SECTION "E" OF MERCRUISER ACCESSORY SECTION
    STARTER MOTOR ASSEMBLY
    FOR BREAKDOWN OF STARTER MOTOR AND ALTERNATOR, SEE SECTION "E" OF MERCRUISER ACCESSORY SECTION
  • 2
    16-52387 STUD, STARTER MOTOR
    STUD, STARTER MOTOR
  • 3
    13-26992 LOCKWASHER, STARTER MOTOR STUD
    LOCKWASHER, STARTER MOTOR STUD
  • 4
    11-20890 NUT, STARTER MOTOR STUD
    NUT, STARTER MOTOR STUD
  • 5
    10-94435001 SCREW, STARTER MOTOR TO CYLINDER BLOCK (4 21/32")
    SCREW, STARTER MOTOR TO CYLINDER BLOCK (4 21/32")
  • 5
    10-8053433 SCREW, STARTER MOTOR TO CYLINDER BLOCK (1 5/16")
    SCREW, STARTER MOTOR TO CYLINDER BLOCK (1 5/16")
  • 6
    13-32993 LOCKWASHER, STARTER MOTOR SCREW
    LOCKWASHER, STARTER MOTOR SCREW
  • 7
    11-32219 NUT, STARTER TERMINAL (3/8")
    NUT, STARTER TERMINAL (3/8")
  • 8
    13-26995 LOCKWASHER, STARTER TERMINAL (#8)
    LOCKWASHER, STARTER TERMINAL (#8)
  • 9
    11-26419 NUT, STARTER TERMINAL (#8)
    NUT, STARTER TERMINAL (#8)
  • 10
    35363 BRACE, STARTER MOTOR
    BRACE, STARTER MOTOR
  • 11
    10-35765A1 SCREW, BRACE TO ENGINE (5/8")
    SCREW, BRACE TO ENGINE (5/8")
  • 12
    97258A1 WATER TEMPERATURE SENDER ASSEMBLY
    WATER TEMPERATURE SENDER ASSEMBLY
  • 13
    13-26996 LOCKWASHER, WATER TEMPERATURE SENDER TERMINAL (#10)
    LOCKWASHER, WATER TEMPERATURE SENDER TERMINAL (#10)
  • 14
    11-68219 NUT, WATER TEMPERATURE SENDER TERMINAL (#10)
    NUT, WATER TEMPERATURE SENDER TERMINAL (#10)
  • 15
    8M0068784 OIL PRESSURE SENDER ASSEMBLY
    OIL PRESSURE SENDER ASSEMBLY
  • 16
    13-26996 LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)
    LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)
  • 17
    11-68219 NUT, OIL PRESSURE SENDER TERMINAL (#10)
    NUT, OIL PRESSURE SENDER TERMINAL (#10)
  • 18
    22-46932 ELBOW, OIL PRESSURE SENDER
    ELBOW, OIL PRESSURE SENDER
  • 19
    22-38992 NIPPLE, OIL PRESSURE SENDER
    NIPPLE, OIL PRESSURE SENDER
  • 20
    87-805605A1 SWITCH, OIL PRESSURE
    SERIAL 00000000-04499780
    SWITCH, OIL PRESSURE
    SERIAL 00000000-04499780
  • 21
    12-20878 WASHER, OIL PRESSURE SWITCH TERMINAL
    SERIAL 00000000-04499780
    WASHER, OIL PRESSURE SWITCH TERMINAL
    SERIAL 00000000-04499780
  • 22
    11-68219 NUT, OIL PRESSURE SWITCH TERMINAL
    SERIAL 00000000-04499780
    NUT, OIL PRESSURE SWITCH TERMINAL
    SERIAL 00000000-04499780
  • 23
    78403A2 ALTERNATOR ASSEMBLY
    FOR BREAKDOWN OF STARTER MOTOR AND ALTERNATOR, SEE SECTION "E" OF MERCRUISER ACCESSORY SECTION
    ALTERNATOR ASSEMBLY
    FOR BREAKDOWN OF STARTER MOTOR AND ALTERNATOR, SEE SECTION "E" OF MERCRUISER ACCESSORY SECTION
  • 24
    10-20055 SCREW, GROUND CABLE TO ALTERNATOR
    SCREW, GROUND CABLE TO ALTERNATOR
  • 25
    13-26996 LOCKWASHER, GROUND CABLE SCREW
    LOCKWASHER, GROUND CABLE SCREW
  • 26
    12-30164 WASHER, GROUND CABLE SCREW
    WASHER, GROUND CABLE SCREW
  • 27
    13-26991 LOCKWASHER, ALTERNATOR TERMINAL
    LOCKWASHER, ALTERNATOR TERMINAL
  • 28
    11-68531 NUT, ALTERNATOR TERMINAL
    NUT, ALTERNATOR TERMINAL
  • 29
    85013T BRACE, ALTERNATOR ADJUSTING
    BRACE, ALTERNATOR ADJUSTING
  • 30
    10-74824 SCREW, ALTERNATOR BRACE TO ALTERNATOR (1 1/4")
    SCREW, ALTERNATOR BRACE TO ALTERNATOR (1 1/4")
  • 31
    13-39107 LOCKWASHER, ALTERNATOR BRACE SCREW
    LOCKWASHER, ALTERNATOR BRACE SCREW
  • 32
    12-26168 WASHER, ALTERNATOR BRACE SCREW
    WASHER, ALTERNATOR BRACE SCREW
  • 33
    23-90523 SPACER, ALTERNATOR BRACE SCREW
    SPACER, ALTERNATOR BRACE SCREW
  • 34
    10-37612 SCREW, ALTERNATOR BRACE TO CYLINDER BLOCK (1 1/4")
    SCREW, ALTERNATOR BRACE TO CYLINDER BLOCK (1 1/4")
  • 35
    13-35048 LOCKWASHER, ALTERNATOR BRACE SCREW
    LOCKWASHER, ALTERNATOR BRACE SCREW
  • 36
    48104A1 BRACKET, ALTERNATOR MOUNTING
    BRACKET, ALTERNATOR MOUNTING
  • 37
    10-76926 SCREW, ALTERNATOR BRACKET TO EXHAUST MANIFOLD (7/8")
    SCREW, ALTERNATOR BRACKET TO EXHAUST MANIFOLD (7/8")
  • 38
    13-35048 LOCKWASHER, ALTERNATOR BRACKET SCREW
    LOCKWASHER, ALTERNATOR BRACKET SCREW
  • 39
    10-48308 SCREW, ALTERNATOR TO ALTERNATOR BRACKET (3 3/4")
    SCREW, ALTERNATOR TO ALTERNATOR BRACKET (3 3/4")
  • 40
    23-33186 BUSHING, ALTERNATOR BRACKET SCREW
    BUSHING, ALTERNATOR BRACKET SCREW
  • 41
    12-20553 WASHER, ALTERNATOR BRACKET SCREW
    WASHER, ALTERNATOR BRACKET SCREW
  • 42
    11-23161 NUT, ALTERNATOR BRACKET SCREW
    NUT, ALTERNATOR BRACKET SCREW
