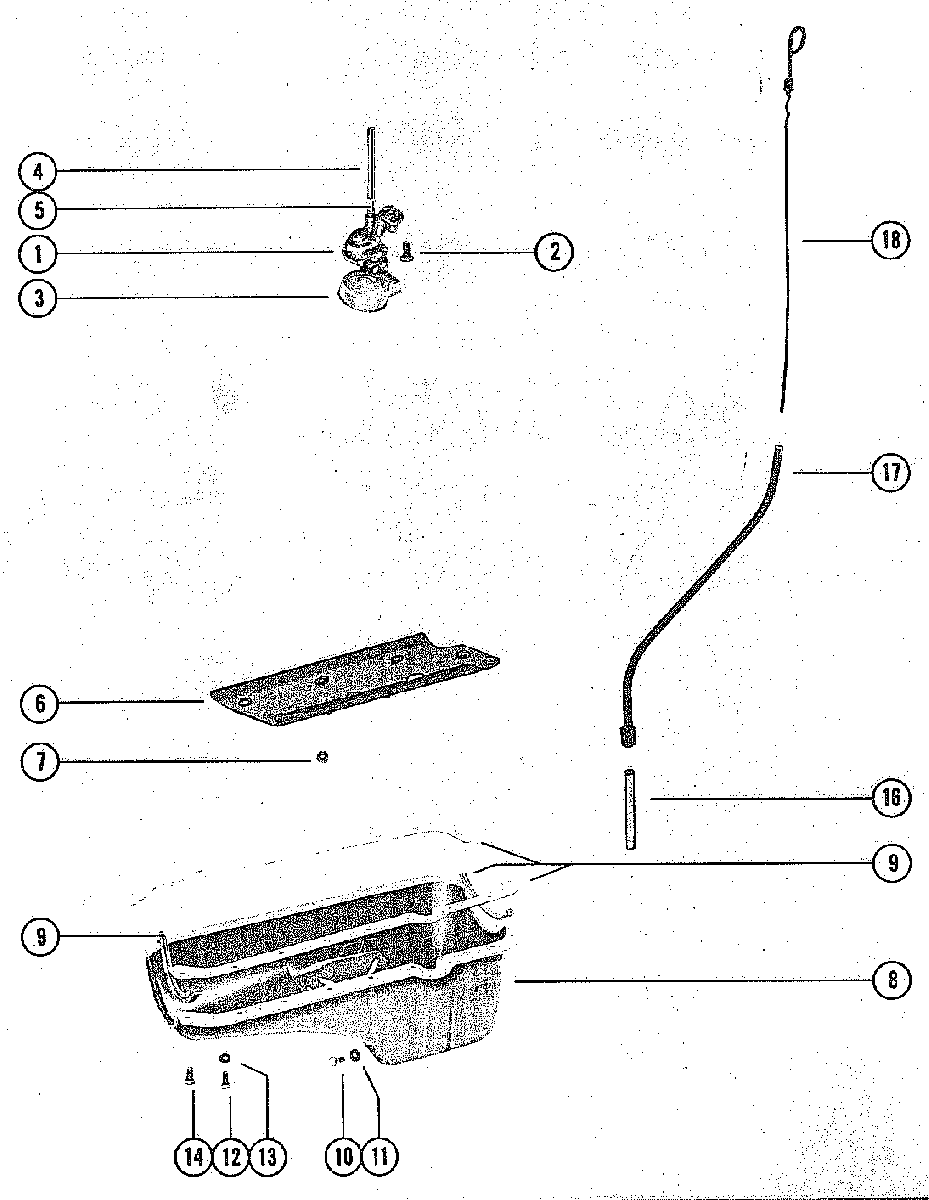

OIL PAN AND OIL PUMP для Mercruiser - 280 TRS GM 350 V-8 1975-1976 4176250 THRU 4770199

  • №
    Артикул
    Название
  • 1
    17617 OIL PUMP ASSEMBLY
    OIL PUMP ASSEMBLY
  • 2
    10-48333 BOLT, OIL PUMP TO CYLINDER BLOCK (2")
    BOLT, OIL PUMP TO CYLINDER BLOCK (2")
  • 3
    72659 SCREEN ASSEMBLY, OIL PUMP
    SCREEN ASSEMBLY, OIL PUMP
  • 4
    36184 SHAFT, OIL PUMP TO DISTRIBUTOR
    SHAFT, OIL PUMP TO DISTRIBUTOR
  • 5
    23-36183 RETAINER, OIL PUMP SHAFT
    RETAINER, OIL PUMP SHAFT
  • 6
    72651 BAFFLE, OIL PAN (CYLINDER BLOCK)
    BAFFLE, OIL PAN (CYLINDER BLOCK)
  • 7
    11-37500 NUT, BAFFLE TO CYLINDER BLOCK STUD
    NUT, BAFFLE TO CYLINDER BLOCK STUD
  • 8
    72656 OIL PAN
    OIL PAN
  • 9
    27-52236 GASKET SET, OIL PAN
    SERIAL 04499390 AND BELOW
    GASKET SET, OIL PAN
    SERIAL 04499390 AND BELOW
  • 9
    27-85817A1 GASKET SET, OIL PAN
    SERIAL 04499391 AND BELOW
    GASKET SET, OIL PAN
    SERIAL 04499391 AND BELOW
  • 10
    10-72658 SCREW, OIL PAN DRAIN
    SCREW, OIL PAN DRAIN
  • 11
    27-8M0077608 GASKET, OIL PAN DRAIN SCREW
    GASKET, OIL PAN DRAIN SCREW
  • 12
    10-72644 SCREW, OIL PAN TO CYL. BLOCK (5/16 - 18 X 7/8)
    SCREW, OIL PAN TO CYL. BLOCK (5/16 - 18 X 7/8)
  • 13
    13-39107 WASHER, OIL PAN SCREW
    WASHER, OIL PAN SCREW
  • 14
    10-8M0040582 SCREW, OIL PAN TO CYL. BLOCK (1/4 - 20 X 7/8)
    SCREW, OIL PAN TO CYL. BLOCK (1/4 - 20 X 7/8)
  • 16
    32-35351 TUBE, OIL LEVEL (LOWER)
    SERIAL 04499390 AND BELOW
    TUBE, OIL LEVEL (LOWER)
    SERIAL 04499390 AND BELOW
  • 16
    72950 TUBE, OIL LEVEL (LOWER)
    SERIAL 04499391 AND BELOW
    TUBE, OIL LEVEL (LOWER)
    SERIAL 04499391 AND BELOW
  • 17
    32-72539 TUBE, OIL LEVEL GAUGE (UPPER)
    TUBE, OIL LEVEL GAUGE (UPPER)
  • 18
    72938 GAUGE, OIL LEVEL (DIPSTICK)
    SERIAL 04499390 AND BELOW
    GAUGE, OIL LEVEL (DIPSTICK)
    SERIAL 04499390 AND BELOW
  • 18
    72938 GAUGE, OIL LEVEL (DIPSTICK)
    SERIAL 04499391 AND UP
    GAUGE, OIL LEVEL (DIPSTICK)
    SERIAL 04499391 AND UP
