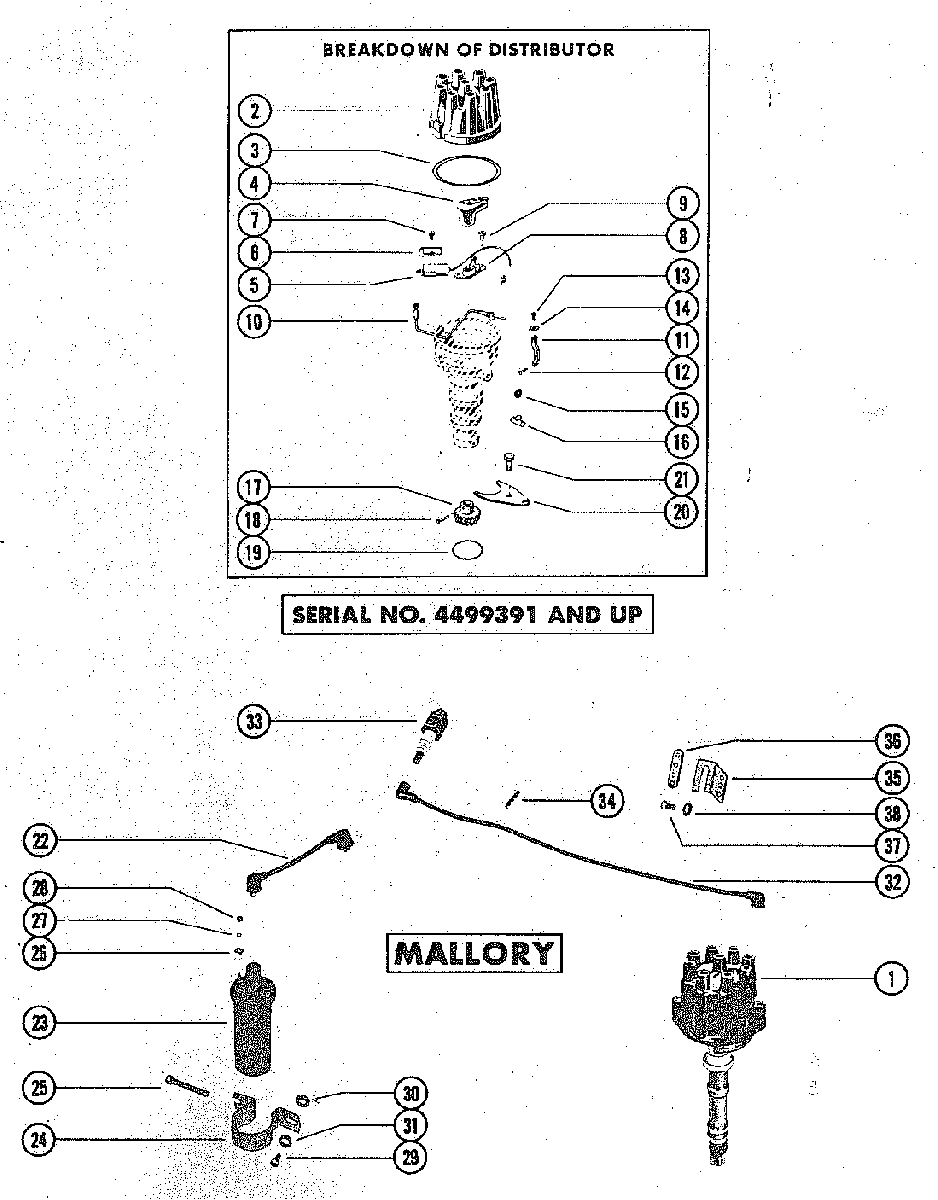

DISTRIBUTOR ASSEMBLY (MALLORY) для Mercruiser - 280 TRS GM 350 V-8 1975-1976 4176250 THRU 4770199

  • №
    Артикул
    Название
  • 1
    17177A1 DISTRIBUTOR ASSEMBLY, COMPLETE
    DISTRIBUTOR ASSEMBLY, COMPLETE
  • 2
    391-5075Q1 CAP, DISTRIBUTOR
    CAP, DISTRIBUTOR
  • 3
    391-5076 GASKET, DISTRIBUTOR CAP
    GASKET, DISTRIBUTOR CAP
  • 4
    8M6001224 ROTOR
    ROTOR
  • 5
    8M6001217 CONDENSER
    CONDENSER
  • 6
    8M6001217 BRACKET, CONDENSER ATTACHING
    BRACKET, CONDENSER ATTACHING
  • 7
    391-5091 SCREW, CONDENSER BRACKET ATTACHING
    SCREW, CONDENSER BRACKET ATTACHING
  • 8
    8M6001250 BREAKER ASSEMBLY
    BREAKER ASSEMBLY
  • 9
    391-5089 SCREW, BREAKER ATTACHING
    SCREW, BREAKER ATTACHING
  • 10
    84-65773A6 LEAD ASSEMBLY, PRIMARY TERMINAL
    LEAD ASSEMBLY, PRIMARY TERMINAL
  • 11
    391-5085 CLAMP, DISTRIBUTOR CAP ATTACHING
    CLAMP, DISTRIBUTOR CAP ATTACHING
  • 12
    391-5084 PIN, CLAMP TO DISTRIBUTOR
    PIN, CLAMP TO DISTRIBUTOR
  • 13
    391-5087 SCREW, DISTRIBUTOR CAP ATTACHING
    SCREW, DISTRIBUTOR CAP ATTACHING
  • 14
    391-5086 WASHER, DISTRIBUTOR CAP SCREW
    WASHER, DISTRIBUTOR CAP SCREW
  • 15
    391-5083 VENT, SCREEN
    VENT, SCREEN
  • 16
    391-5080 OILER
    OILER
  • 17
    391-6390 GEAR, DRIVE
    GEAR, DRIVE
  • 18
    391-6391 PIN, DRIVE GEAR
    PIN, DRIVE GEAR
  • 19
    27-344863 GASKET, DISTRIBUTOR
    GASKET, DISTRIBUTOR
  • 20
    54-88731 CLAMP, DISTRIBUTOR TO INTAKE MANIFOLD
    CLAMP, DISTRIBUTOR TO INTAKE MANIFOLD
  • 21
    10-54528 SCREW, DISTRIBUTOR TO CLAMP ATTACHING (7/8")
    SCREW, DISTRIBUTOR TO CLAMP ATTACHING (7/8")
  • 22
    84-815297A48 LEAD ASSEMBLY, DISTRIBUTOR TO COIL (5")
    LEAD ASSEMBLY, DISTRIBUTOR TO COIL (5")
  • 23
    898253T24 COIL, IGNITION - DELCO REMY -DELCO
    DO NOT MIX WITH PRESTOLITE PARTS
    COIL, IGNITION - DELCO REMY -DELCO
    DO NOT MIX WITH PRESTOLITE PARTS
  • 24
    34106 BRACKET, IGNITION COIL MOUNTING -DELCO
    DO NOT MIX WITH PRESTOLITE PARTS
    BRACKET, IGNITION COIL MOUNTING -DELCO
    DO NOT MIX WITH PRESTOLITE PARTS
  • 25
    10-33311 SCREW, COIL TO BRACKET (1 1/2") -DELCO
    DO NOT MIX WITH PRESTOLITE PARTS
    SCREW, COIL TO BRACKET (1 1/2") -DELCO
    DO NOT MIX WITH PRESTOLITE PARTS
  • 23
    898253T24 COIL, IGNITION - PRESTOLITE
    DO NOT MIX WITH DELCO REMY PARTS
    COIL, IGNITION - PRESTOLITE
    DO NOT MIX WITH DELCO REMY PARTS
  • 24
    77294T BRACKET, IGNITION COIL MOUNTING -PRESTOLITE
    DO NOT MIX WITH DELCO REMY PARTS
    BRACKET, IGNITION COIL MOUNTING -PRESTOLITE
    DO NOT MIX WITH DELCO REMY PARTS
  • 25
    10-66652 SCREW, COIL TO BRACKET (1 1/2") -PRESTOLITE
    DO NOT MIX WITH DELCO REMY PARTS
    SCREW, COIL TO BRACKET (1 1/2") -PRESTOLITE
    DO NOT MIX WITH DELCO REMY PARTS
  • 26
    12-30164 WASHER, IGNITION COIL TERMINAL
    WASHER, IGNITION COIL TERMINAL
  • 27
    13-26996 LOCKWASHER, IGNITION COIL TERMINAL
    LOCKWASHER, IGNITION COIL TERMINAL
  • 28
    11-68219 NUT, IGNITION COIL TERMINAL
    NUT, IGNITION COIL TERMINAL
  • 29
    10-25299 SCREW, IGNITION COIL ATTACHING (3/4")
    SCREW, IGNITION COIL ATTACHING (3/4")
  • 30
    12-20084 WASHER, IGNITION COIL ATTACHING SCREW
    WASHER, IGNITION COIL ATTACHING SCREW
  • 31
    13-26993 LOCKWASHER, IGNITION COIL ATTACHING SCREW
    LOCKWASHER, IGNITION COIL ATTACHING SCREW
  • 32
    84-815297A39 LEAD ASSEMBLY, HIGH TENSION (38 1/2") - CYL. #2
    LEAD ASSEMBLY, HIGH TENSION (38 1/2") - CYL. #2
  • 32
    84-815297A39 LEAD ASSEMBLY, HIGH TENSION (37") - CYL. #3
    LEAD ASSEMBLY, HIGH TENSION (37") - CYL. #3
  • 32
    84-815297A39 LEAD ASSEMBLY, HIGH TENSION (34") - CYL. #5
    LEAD ASSEMBLY, HIGH TENSION (34") - CYL. #5
  • 32
    84-815297A39 LEAD ASSEMBLY, HIGH TENSION (31") - CYL. #4
    LEAD ASSEMBLY, HIGH TENSION (31") - CYL. #4
  • 32
    84-815297A39 LEAD ASSEMBLY, HIGH TENSION (29 1/2") - CYL. #6 AND #7
    LEAD ASSEMBLY, HIGH TENSION (29 1/2") - CYL. #6 AND #7
  • 32
    84-815297A39 LEAD ASSEMLBY, HIGH TENSION (24") - CYL. #8
    LEAD ASSEMLBY, HIGH TENSION (24") - CYL. #8
  • 32
    84-815297A39 LEAD ASSEMBLY, HIGH TENSION (42") - CYL. #1
    LEAD ASSEMBLY, HIGH TENSION (42") - CYL. #1
  • 33
    33-898264001 SPARK PLUG (AC#MR43T)
    SPARK PLUG (AC#MR43T)
  • 34
    54676 RETAINER, HIGH TENSION LEADS (2 WIRE)
    RETAINER, HIGH TENSION LEADS (2 WIRE)
  • 34
    32783 RETAINER, HIGH TENSION LEADS (3 WIRE)
    RETAINER, HIGH TENSION LEADS (3 WIRE)
  • 34
    32784 RETAINER, HIGH TENSION LEADS (4 WIRE)
    RETAINER, HIGH TENSION LEADS (4 WIRE)
  • 35
    47763 BRACKET, HIGH TENSION LEAD
    BRACKET, HIGH TENSION LEAD
  • 36
    25-38930 GROMMET, HIGH TENSION LEAD
    GROMMET, HIGH TENSION LEAD
  • 37
    10-98261 SCREW, LEAD BRACKET ATTACHING (3/8-16X3/4) (STARBOARD)
    SCREW, LEAD BRACKET ATTACHING (3/8-16X3/4) (STARBOARD)
  • 38
    13-35048 LOCKWASHER, BRACKET ATTACHING SCREW (STARBOARD)
    LOCKWASHER, BRACKET ATTACHING SCREW (STARBOARD)
  • 37
    10-92913 SCREW, LEAD BRACKET ATTACHING (7/16-14X3/4) (PORT)
    SCREW, LEAD BRACKET ATTACHING (7/16-14X3/4) (PORT)
  • 38
    13-32993 LOCKWASHER, BRACKET ATTACHING SCREW (PORT)
    LOCKWASHER, BRACKET ATTACHING SCREW (PORT)
