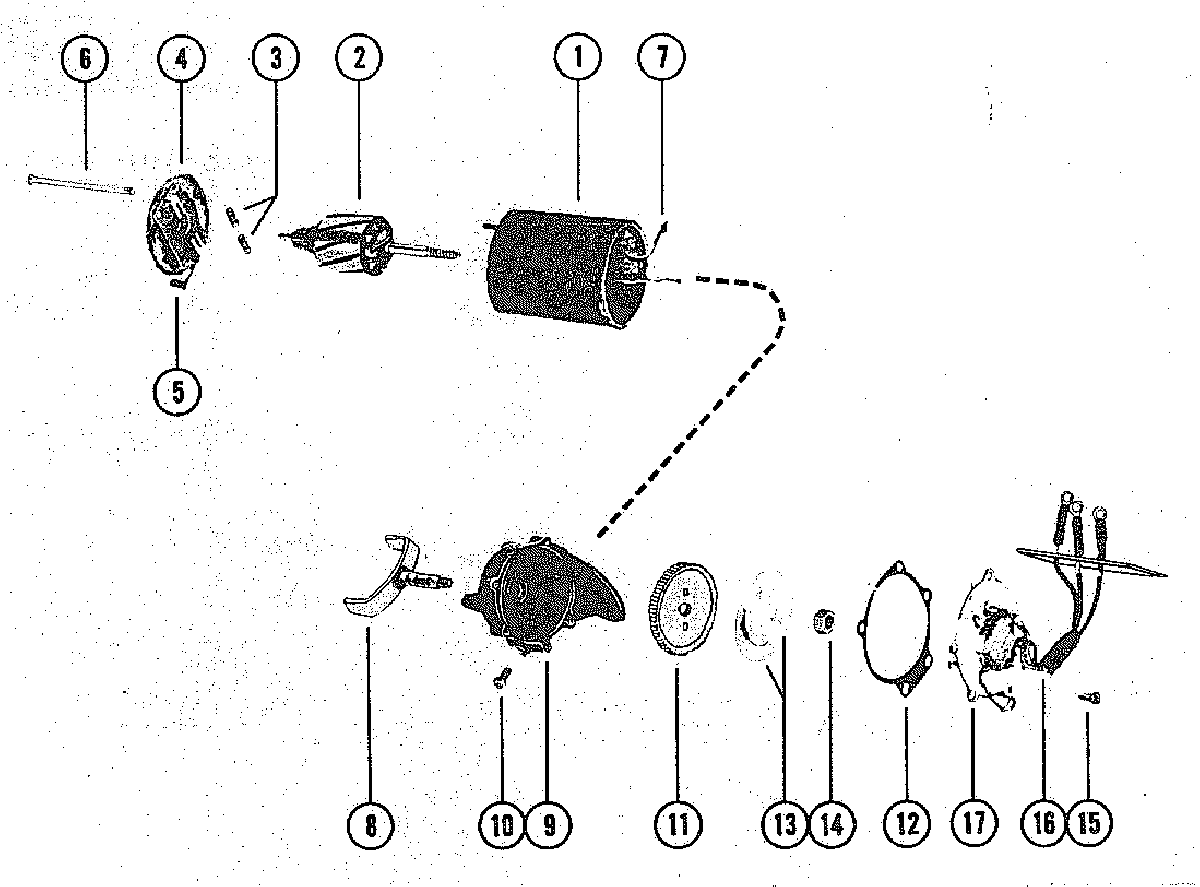

SHIFT ACTUATOR ASSEMBLY, COMPLETE для Mercruiser - 280 TRS GM 350 V-8 1975-1976 4176250 THRU 4770199

  • №
    Артикул
    Название
  • 1
    69392A4 SHIFT ACTUATOR ASSEMBLY, COMPLETE
    COMPONENT PARTS OF THE SHIFT ACTUATOR NOT SHOWN ARE NOT SOLD SEPARATELY
    SHIFT ACTUATOR ASSEMBLY, COMPLETE
    COMPONENT PARTS OF THE SHIFT ACTUATOR NOT SHOWN ARE NOT SOLD SEPARATELY
  • 2
    392-4949 ARMATURE
    ARMATURE
  • 3
    392-4960 SPRING SET, BRUSH
    SPRING SET, BRUSH
  • 4
    392-4955 HEAD ASSEMBLY, COMMUTATOR END
    HEAD ASSEMBLY, COMMUTATOR END
  • 5
    392-4956 BRUSH SET
    BRUSH SET
  • 6
    392-4962 THRU BOLT
    THRU BOLT
  • 7
    392-5928 FIELD COIL ASSEMBLY
    FIELD COIL ASSEMBLY
  • 8
    392-4951 CRANK ARM ASSEMBLY
    CRANK ARM ASSEMBLY
  • 9
    392-4957 HEAD ASSEMBLY, DRIVE END
    HEAD ASSEMBLY, DRIVE END
  • 10
    392-4959 SCREW AND DISC PACKAGE
    SCREW AND DISC PACKAGE
  • 11
    392-4952 GEAR AND GASKET PACKAGE
    GEAR AND GASKET PACKAGE
  • 12
    392-4953 GASKET, COVER
    GASKET, COVER
  • 13
    392-4958 PLATE, CAM
    PLATE, CAM
  • 14
    11-20890 NUT, CRANK ARM
    NUT, CRANK ARM
  • 15
    10-472220 SCREW, COVER ATTACHING (3/8")
    SCREW, COVER ATTACHING (3/8")
  • 16
    84-62995A1 HARNESS ASSEMBLY (3 WIRE LEAD)
    HARNESS ASSEMBLY (3 WIRE LEAD)
  • 17
    42528A6 SWITCH PLATE
    INCLUDES 1 PIECE OF REF. NO. 12
    SWITCH PLATE
    INCLUDES 1 PIECE OF REF. NO. 12
