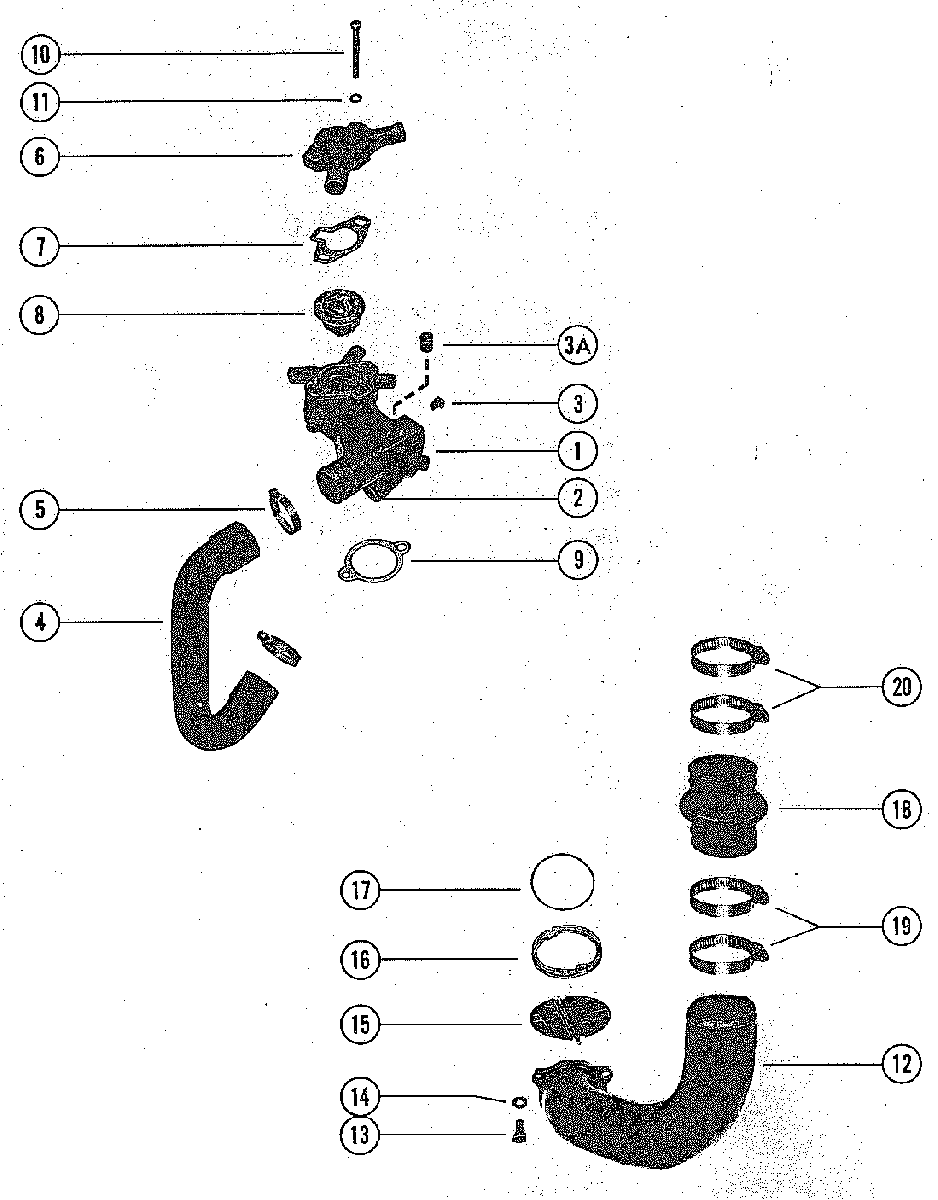

THERMOSTAT HOUSING ASSEMBLY для Mercruiser - 280 TRS GM 350 V-8 1975-1976 4176250 THRU 4770199

  • №
    Артикул
    Название
  • 1
    78984A08 THERMOSTAT HOUSING ASSEMBLY
    SERIAL 00000000-04499390
    THERMOSTAT HOUSING ASSEMBLY
    SERIAL 00000000-04499390
  • 1
    78984A08 THERMOSTAT HOUSING ASSEMBLY
    SERIAL 04499391-09999999
    THERMOSTAT HOUSING ASSEMBLY
    SERIAL 04499391-09999999
  • 2
    23-47511 SLEEVE, THERMOSTAT HOUSING
    SLEEVE, THERMOSTAT HOUSING
  • 3
    22-47540 PLUG, THERMOSTAT HOUSING
    PLUG, THERMOSTAT HOUSING
  • 3A
    22-416223 PLUG, THERMOSTAT HOUSING
    SERIAL 04499391-09999999
    PLUG, THERMOSTAT HOUSING
    SERIAL 04499391-09999999
  • 4
    32-33189 HOSE, THERMOSTAT HOUSING TO WATER PUMP
    HOSE, THERMOSTAT HOUSING TO WATER PUMP
  • 5
    54-815504228 CLAMP, HOSE TO THERMOSTAT HOUSING AND WATER PUMP
    CLAMP, HOSE TO THERMOSTAT HOUSING AND WATER PUMP
  • 6
    47441A1 COVER, THERMOSTAT HOUSING
    COVER, THERMOSTAT HOUSING
  • 7
    27-488181 GASKET, THERMOSTAT HOUSING (UPPER)
    GASKET, THERMOSTAT HOUSING (UPPER)
  • 8
    8M0089715 THERMOSTAT
    THERMOSTAT
  • 9
    27-530451 GASKET, THERMOSTAT HOUSING TO MANIFOLD (LOWER)
    GASKET, THERMOSTAT HOUSING TO MANIFOLD (LOWER)
  • 10
    10-60410 SCREW, THERMOSTAT HOUSING ATTACHING (4 1/4")
    SCREW, THERMOSTAT HOUSING ATTACHING (4 1/4")
  • 11
    13-35048 LOCKWASHER, THERMOSTAT HOUSING SCREW
    LOCKWASHER, THERMOSTAT HOUSING SCREW
  • 12
    70695 ELBOW, EXHAUST (STARBOARD)
    SERIAL 00000000-00499390
    ELBOW, EXHAUST (STARBOARD)
    SERIAL 00000000-00499390
  • 12
    70696 ELBOW, EXHAUST (PORT)
    SERIAL 00000000-00499390
    ELBOW, EXHAUST (PORT)
    SERIAL 00000000-00499390
  • 12
    73659A3 ELBOW, EXHAUST (STARBOARD)
    SERIAL 04499391-09999999
    ELBOW, EXHAUST (STARBOARD)
    SERIAL 04499391-09999999
  • 12
    73660 ELBOW, EXHAUST (PORT)
    SERIAL 04499391-09999999
    ELBOW, EXHAUST (PORT)
    SERIAL 04499391-09999999
  • 13
    10-8M0113174 SCREW, EXHAUST ELBOW TO TRANSOM PLATE (1 1/4")
    SCREW, EXHAUST ELBOW TO TRANSOM PLATE (1 1/4")
  • 14
    13-35048 LOCKWASHER, EXHAUST ELBOW SCREW
    LOCKWASHER, EXHAUST ELBOW SCREW
  • 15
    60930 WATER SHUTTER, EXHAUST ELBOW
    WATER SHUTTER, EXHAUST ELBOW
  • 16
    63151T RETAINER, SHUTTER TO EXHAUST ELBOW
    RETAINER, SHUTTER TO EXHAUST ELBOW
  • 17
    25-35029 "O" RING, EXHAUST ELBOW TO TRANSOM PLATE
    "O" RING, EXHAUST ELBOW TO TRANSOM PLATE
  • 18
    70981A3 BELLOWS, EXHAUST ELBOW
    BELLOWS, EXHAUST ELBOW
  • 19
    54-815504372 CLAMP, BELLOWS TO EXHAUST ELBOW (LOWER)
    CLAMP, BELLOWS TO EXHAUST ELBOW (LOWER)
  • 20
    54-815504456 CLAMP, BELLOWS TO EXHAUST ELBOW (UPPER)
    CLAMP, BELLOWS TO EXHAUST ELBOW (UPPER)
