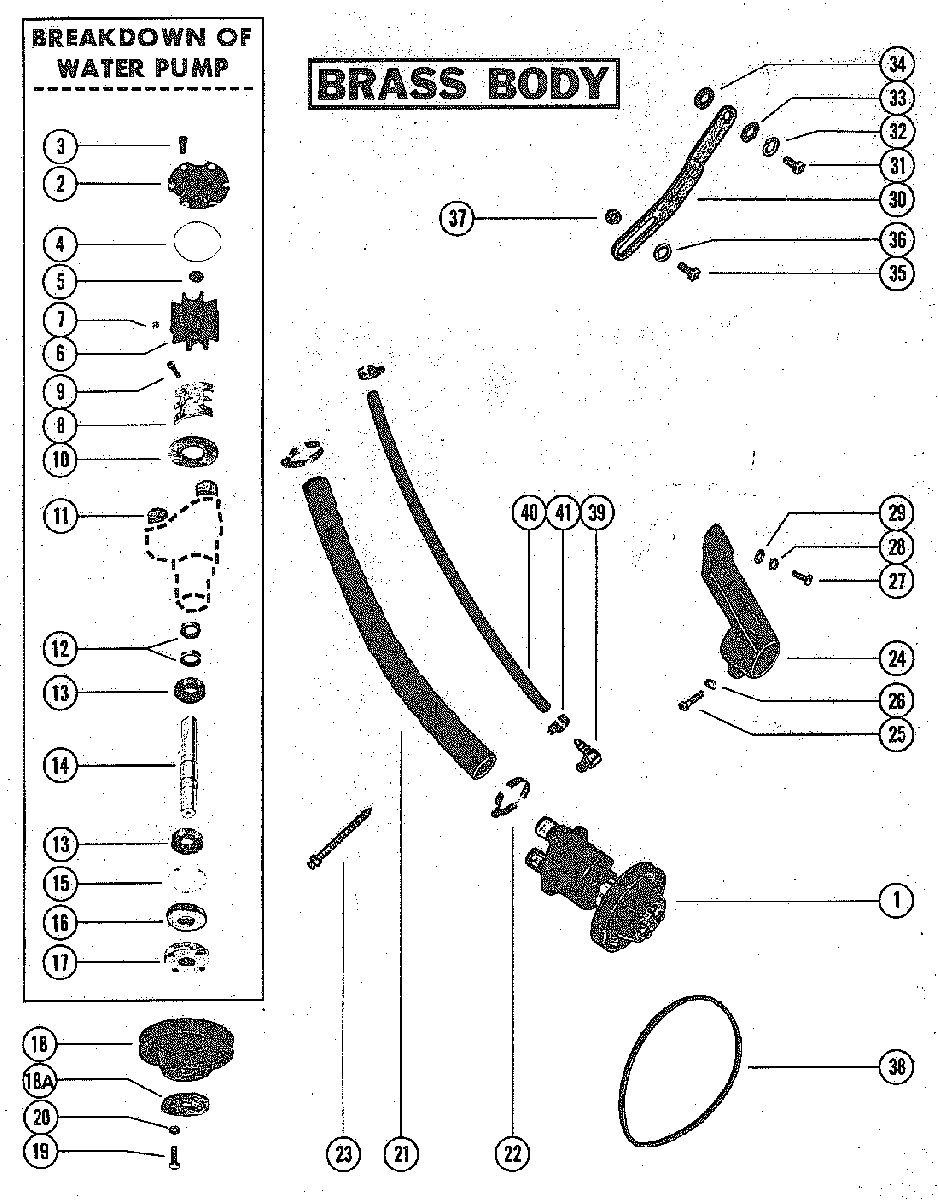

WATER PUMP ASSEMBLY для Mercruiser - 280 TRS GM 350 V-8 1975-1976 4176250 THRU 4770199

  • №
    Артикул
    Название
  • 1
    46-72774A32 WATER PUMP ASSEMBLY (BRASS BODY ONLY)
    SERIAL 00000000-04176468
    WATER PUMP ASSEMBLY (BRASS BODY ONLY)
    SERIAL 00000000-04176468
  • 1
    46-72774A32 WATER PUMP ASSEMBLY (BRASS BODY ONLY)
    SERIAL 04176469-09999999
    WATER PUMP ASSEMBLY (BRASS BODY ONLY)
    SERIAL 04176469-09999999
  • 2
    59155 COVER, WATER PUMP
    COVER, WATER PUMP
  • 3
    10-28635 SCREW, WATER PUMP COVER ATTACHING (5/8")
    SCREW, WATER PUMP COVER ATTACHING (5/8")
  • 4
    25-53421 "O" RING, WATER PUMP COVER
    "O" RING, WATER PUMP COVER
  • 5
    19-59504 PLUG, IMPELLER
    PLUG, IMPELLER
  • 6
    47-59362T1 IMPELLER ASSEMBLY
    IMPELLER ASSEMBLY
  • 7
    28-8M0032837 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 8
    59363A1 CAM SEGMENT ASSEMBLY, WATER PUMP
    CAM SEGMENT ASSEMBLY, WATER PUMP
  • 9
    10-60777 SCREW, CAM SEGMENT ATTACHING (1/2")
    SCREW, CAM SEGMENT ATTACHING (1/2")
  • 10
    59503 WEAR PLATE
    WEAR PLATE
  • 11
    23-47511 SLEEVE, WATER PUMP COVER
    SLEEVE, WATER PUMP COVER
  • 12
    26-90562 OIL SEAL, WATER PUMP SHAFT
    OIL SEAL, WATER PUMP SHAFT
  • 13
    30-72961 BEARING, PUMP SHAFT (BRASS BODY ONLY)
    SERIAL 00000000-04176468
    BEARING, PUMP SHAFT (BRASS BODY ONLY)
    SERIAL 00000000-04176468
  • 13
    30-72961 BEARING, PUMP SHAFT (BRASS BODY ONLY)
    SERIAL 04176469-09999999
    BEARING, PUMP SHAFT (BRASS BODY ONLY)
    SERIAL 04176469-09999999
  • 14
    59501A1 SHAFT, WATER PUMP
    SHAFT, WATER PUMP
  • 15
    53-23720 RING, SNAP - BALL BEARING RETAINING
    RING, SNAP - BALL BEARING RETAINING
  • 16
    26-72785 OIL SEAL, PUMP SHAFT (BRASS BODY ONLY)
    SERIAL 00000000-04176468
    OIL SEAL, PUMP SHAFT (BRASS BODY ONLY)
    SERIAL 00000000-04176468
  • 16
    26-72785 OIL SEAL, PUMP SHAFT (BRASS BODY ONLY)
    SERIAL 04176469-09999999
    OIL SEAL, PUMP SHAFT (BRASS BODY ONLY)
    SERIAL 04176469-09999999
  • 17
    47530 HUB, WATER PUMP PULLEY
    HUB, WATER PUMP PULLEY
  • 18
    59762T PULLEY, WATER PUMP (BRASS BODY ONLY)
    SERIAL 00000000-04176468
    PULLEY, WATER PUMP (BRASS BODY ONLY)
    SERIAL 00000000-04176468
  • 18
    73798A1 PULLEY, WATER PUMP (BRASS BODY ONLY)
    SERIAL 04176469-09999999
    PULLEY, WATER PUMP (BRASS BODY ONLY)
    SERIAL 04176469-09999999
  • 18A
    58265 CLAMPING RING, PUMP PULLEY
    SERIAL 04176469-09999999
    CLAMPING RING, PUMP PULLEY
    SERIAL 04176469-09999999
  • 19
    10-47277 SCREW, PULLEY TO WATER PUMP (BRASS BODY ONLY)
    SERIAL 00000000-04176468
    SCREW, PULLEY TO WATER PUMP (BRASS BODY ONLY)
    SERIAL 00000000-04176468
  • 19
    10-33524 SCREW, PULLEY TO WATER PUMP (BRASS BODY ONLY)
    SERIAL 04176469-09999999
    SCREW, PULLEY TO WATER PUMP (BRASS BODY ONLY)
    SERIAL 04176469-09999999
  • 20
    13-39107 LOCKWASHER, WATER PUMP PULLEY SCREW
    LOCKWASHER, WATER PUMP PULLEY SCREW
  • 21
    32-57230 HOSE, WATER PUMP TO OIL COOLER (WITH POWER STEERING)
    HOSE, WATER PUMP TO OIL COOLER (WITH POWER STEERING)
  • 21
    32-49044 HOSE, PUMP TO THERMOSTAT HOUSING (WITHOUT POWER STEERING)
    HOSE, PUMP TO THERMOSTAT HOUSING (WITHOUT POWER STEERING)
  • 22
    54-815504220 CLAMP, WATER PUMP HOSE
    CLAMP, WATER PUMP HOSE
  • 23
    62711 STA-STRAP, HOSE ATTACHING
    STA-STRAP, HOSE ATTACHING
  • 24
    47488A1 BRACKET, WATER PUMP
    BRACKET, WATER PUMP
  • 25
    10-34354 SCREW, WATER PUMP BRACKET CLAMPING (1 1/2")
    SCREW, WATER PUMP BRACKET CLAMPING (1 1/2")
  • 26
    13-35048 LOCKWASHER, WATER PUMP BRACKET SCREW
    LOCKWASHER, WATER PUMP BRACKET SCREW
  • 27
    10-34353 SCREW, WATER PUMP BRACKET TO ENGINE (1")
    SCREW, WATER PUMP BRACKET TO ENGINE (1")
  • 28
    13-35048 LOCKWASHER, WATER PUMP BRACKET SCREW
    LOCKWASHER, WATER PUMP BRACKET SCREW
  • 29
    12-20553 WASHER, WATER PUMP BRACKET SCREW
    WASHER, WATER PUMP BRACKET SCREW
  • 30
    76739 BRACE, WATER PUMP ADJUSTING (WITH POWER STEERING)
    BRACE, WATER PUMP ADJUSTING (WITH POWER STEERING)
  • 30
    71648 BRACE, WATER PUMP ADJUSTING (WITHOUT POWER STEERING)
    BRACE, WATER PUMP ADJUSTING (WITHOUT POWER STEERING)
  • 31
    10-34353 SCREW, ADJUSTING BRACE TO POWER STEERING PUMP (1")
    SCREW, ADJUSTING BRACE TO POWER STEERING PUMP (1")
  • 32
    13-35048 LOCKWASHER, ADJUSTING BRACE SCREW
    LOCKWASHER, ADJUSTING BRACE SCREW
  • 33
    12-34714 WASHER, ADJUSTING BRACE SCREW
    WASHER, ADJUSTING BRACE SCREW
  • 34
    23-72057 SPACER, ADJUSTING BRACE SCREW
    SPACER, ADJUSTING BRACE SCREW
  • 35
    10-35786 SCREW, ADJUSTING BRACE TO BRACKET SCREW (1")
    SCREW, ADJUSTING BRACE TO BRACKET SCREW (1")
  • 36
    13-35048 LOCKWASHER, ADJUSTING BRACE SCREW
    LOCKWASHER, ADJUSTING BRACE SCREW
  • 37
    11-46335 NUT, ADJUSTING BRACE SCREW
    NUT, ADJUSTING BRACE SCREW
  • 38
    57-39756 BELT, WATER PUMP (BRASS BODY ONLY)
    SERIAL 00000000-04176468
    BELT, WATER PUMP (BRASS BODY ONLY)
    SERIAL 00000000-04176468
  • 38
    57-74271Q BELT, WATER PUMP (BRASS BODY ONLY)
    SERIAL 04176469-09999999
    BELT, WATER PUMP (BRASS BODY ONLY)
    SERIAL 04176469-09999999
  • 39
    22-629101 FITTING, WATER PUMP BODY
    FITTING, WATER PUMP BODY
  • 40
    32-629872 HOSE, WATER PUMP TRANSMISSION COOLER (34 1/2")
    HOSE, WATER PUMP TRANSMISSION COOLER (34 1/2")
  • 41
    54-815504310 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
