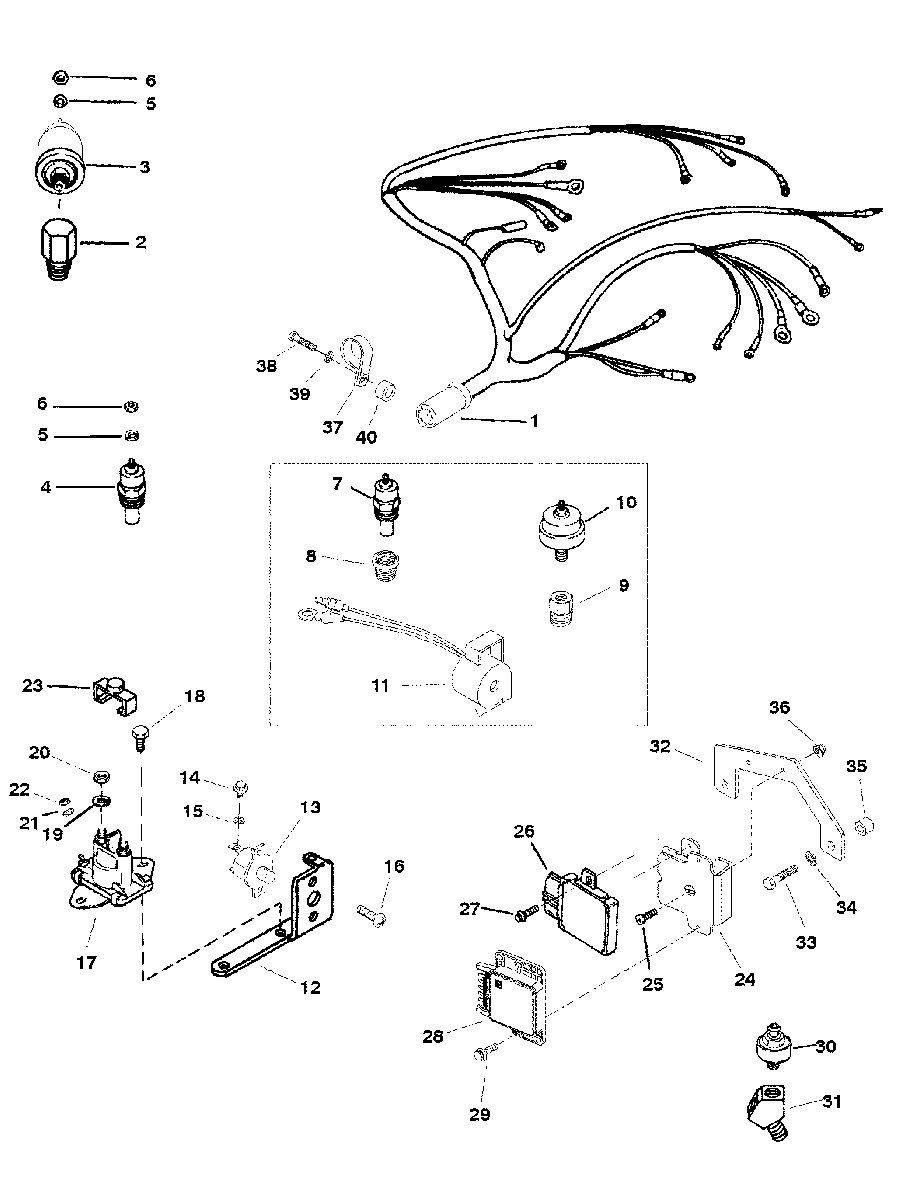

WIRING HARNESS AND ELECTRICAL COMPONENTS для Mercruiser - 5.7L MIE GM 350 V-8 1997 0K040307 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    84-806967A2 HARNESS-WIRING
    HARNESS-WIRING
  • 2
    22-8053281 ELBOW-90 DEG. (1/8 IN.)
    ELBOW-90 DEG. (1/8 IN.)
  • 3
    8M0068784 SENDER-OIL PRESSURE
    SENDER-OIL PRESSURE
  • 3
    37293T SENDER-OIL PRESSURE
    (DUAL)
    SENDER-OIL PRESSURE
    (DUAL)
  • 4
    806490T SENDER-WATER TEMPERATURE
    SENDER-WATER TEMPERATURE
  • 4
    49734 SENDER-WATER TEMPERATURE
    (DUAL)
    SENDER-WATER TEMPERATURE
    (DUAL)
  • 5
    13-26996 LOCKWASHER (#10)
    LOCKWASHER (#10)
  • 6
    11-68219 NUT (#10-32)
    NUT (#10-32)
  • 7
    48952 SWITCH-WATER TEMPERATURE
    (STD. COOLING) AUDIO WARNING SYSTEM
    SWITCH-WATER TEMPERATURE
    (STD. COOLING) AUDIO WARNING SYSTEM
  • 7
    87-86080 SWITCH-WATER TEMPERATURE
    (CLOSED COOLING) AUDIO WARNING SYSTEM
    SWITCH-WATER TEMPERATURE
    (CLOSED COOLING) AUDIO WARNING SYSTEM
  • 8
    22-92949 BUSHING-REDUCER
    (CLOSED COOLING) AUDIO WARNING SYSTEM
    BUSHING-REDUCER
    (CLOSED COOLING) AUDIO WARNING SYSTEM
  • 9
    22-48556 BUSHING-REDUCER
    AUDIO WARNING SYSTEM
    BUSHING-REDUCER
    AUDIO WARNING SYSTEM
  • 10
    87-805605A1 SWITCH-OIL PRESSURE
    AUDIO WARNING SYSTEM
    SWITCH-OIL PRESSURE
    AUDIO WARNING SYSTEM
  • 11
    816492A6 ALARM KIT
    AUDIO WARNING SYSTEM
    ALARM KIT
    AUDIO WARNING SYSTEM
  • 12
    899719T01 BRACKET-MOUNTING
    BRACKET-MOUNTING
  • 13
    88-11178A01 BREAKER-CIRCUIT (50 AMP)
    BREAKER-CIRCUIT (50 AMP)
  • 14
    10-68513 SCREW (#10-32 X 3/8 IN.)
    SCREW (#10-32 X 3/8 IN.)
  • 15
    13-26996 LOCKWASHER (#10)
    LOCKWASHER (#10)
  • 16
    10-57583T SCREW (#8-32 X 3/8 IN.)
    SCREW (#8-32 X 3/8 IN.)
  • 17
    89-96158T SOLENOID-STARTER
    SOLENOID-STARTER
  • 18
    10-805564 SCREW (1/4-20)
    SCREW (1/4-20)
  • 19
    13-26992 LOCKWASHER (1/4 IN.)
    LOCKWASHER (1/4 IN.)
  • 20
    11-94330 NUT (1/4-20)
    NUT (1/4-20)
  • 21
    13-26996 LOCKWASHER (#10)
    LOCKWASHER (#10)
  • 22
    11-68219 NUT (10-32)
    NUT (10-32)
  • 23
    85-97861 INSULATOR-STARTER SOLENOID
    INSULATOR-STARTER SOLENOID
  • 24
    807763T BRACKET
    BRACKET
  • 25
    10-73287 SCREW (#10-32 X 3/8 IN.)
    SCREW (#10-32 X 3/8 IN.)
  • 26
    806956A01 MODULE-IGNITION CONTROL
    MODULE-IGNITION CONTROL
  • 27
    10-806826 SCREW (#8-32 X 1/4 IN.)
    SCREW (#8-32 X 1/4 IN.)
  • 28
    806611T MODULE-KNOCK CONTROL
    MODULE-KNOCK CONTROL
  • 29
    10-806827 SCREW (#8-32 X 3/8 IN.)
    SCREW (#8-32 X 3/8 IN.)
  • 30
    806612T SENSOR-KNOCK
    SENSOR-KNOCK
  • 31
    22-8067051 FITTING-Y
    FITTING-Y
  • 32
    807614T BRACKET
    BRACKET
  • 33
    10-34353 SCREW (3/8-16 X 1 IN.)
    SCREW (3/8-16 X 1 IN.)
  • 34
    13-35048 LOCKWASHER (3/8 IN.)
    LOCKWASHER (3/8 IN.)
  • 35
    23-57369 SPACER
    SPACER
  • 36
    11-68219 NUT (#10-32)
    NUT (#10-32)
  • 37
    54-97862 CLAMP
    CLAMP
  • 38
    10-37612 SCREW (3/8-16 X 1-1/4 IN.)
    SCREW (3/8-16 X 1-1/4 IN.)
  • 39
    13-35048 LOCKWASHER (3/8 IN.)
    LOCKWASHER (3/8 IN.)
  • 40
    23-91034 SPACER
    SPACER
