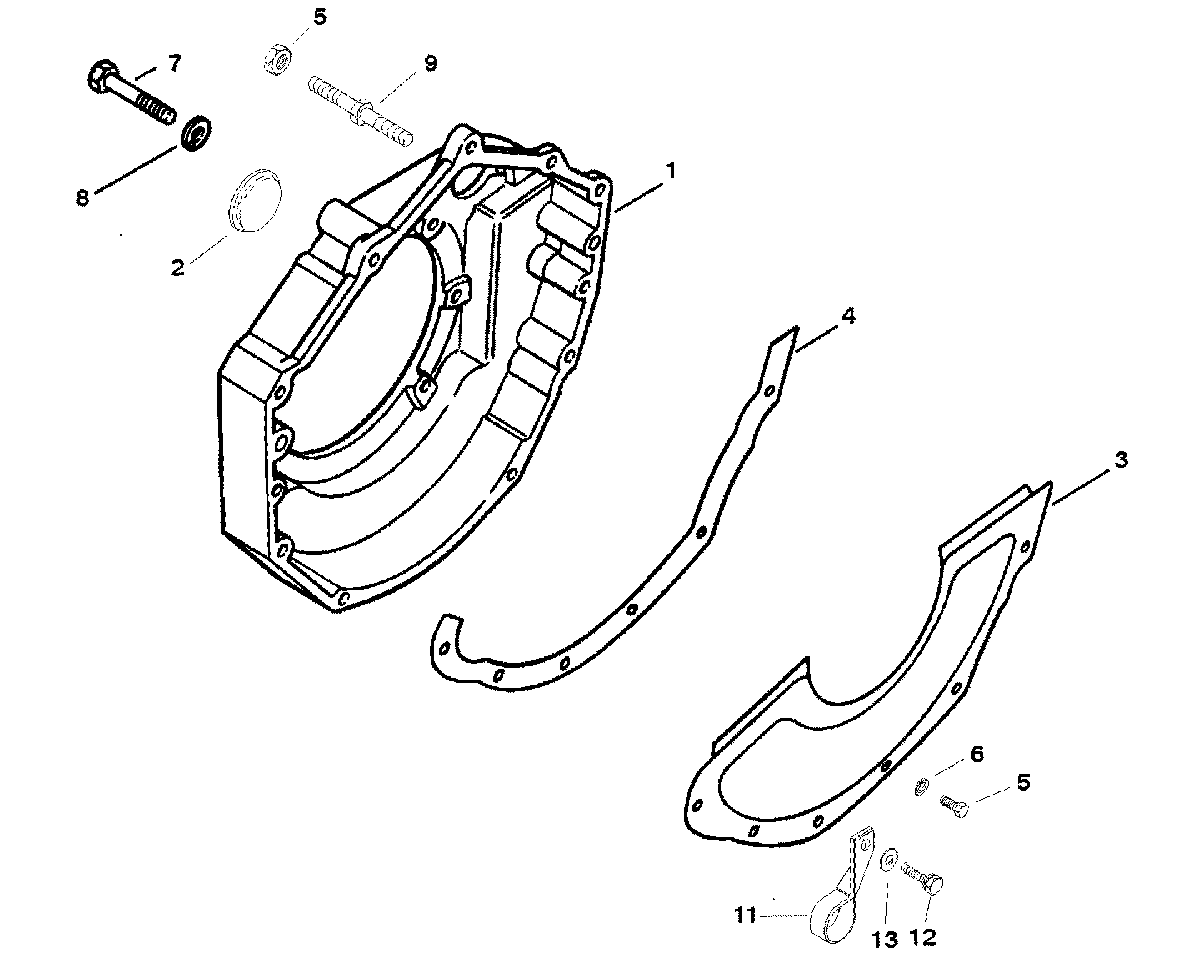

FLYWHEEL HOUSING для Mercruiser - 5.7L MIE GM 350 V-8 1997 0K040307 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    814309A1 HOUSING-FLYWHEEL
    HOUSING-FLYWHEEL
  • 2
    19-12304 PLUG-TIMING WINDOW
    PLUG-TIMING WINDOW
  • 3
    818718A4 COVER ASSEMBLY-FLYWHEEL
    COVER ASSEMBLY-FLYWHEEL
  • 4
    27-86015 GASKET
    GASKET
  • 5
    10-98253 SCREW (1/4-20 X 1/2 IN.)
    SCREW (1/4-20 X 1/2 IN.)
  • 6
    13-26992 LOCKWASHER (1/4 IN.)
    LOCKWASHER (1/4 IN.)
  • 7
    10-47277 SCREW (5/16-24 X 3/4 IN.)
    SCREW (5/16-24 X 3/4 IN.)
  • 7
    10-34353 SCREW (3/8-16 X 1 IN.)
    SCREW (3/8-16 X 1 IN.)
  • 7
    10-37612 SCREW (3/8-16 X 1-1/4 IN.)
    SCREW (3/8-16 X 1-1/4 IN.)
  • 7
    10-47688 SCREW (3/8-16 X 2-3/4 IN.)
    SCREW (3/8-16 X 2-3/4 IN.)
  • 8
    13-39107 LOCKWASHER (5/16 IN.)
    LOCKWASHER (5/16 IN.)
  • 8
    13-35048 LOCKWASHER (3/8 IN)
    LOCKWASHER (3/8 IN)
  • 9
    16-861316 STUD-GROUNDING
    STUD-GROUNDING
  • 10
    11-32219 NUT (3/8-16)
    NUT (3/8-16)
  • 11
    54-64489 CLAMP
    CLAMP
  • 12
    10-65746 SCREW & LOCKWASHER (1/4-20 X 3/4 IN.)
    SCREW & LOCKWASHER (1/4-20 X 3/4 IN.)
  • 13
    12-69057 WASHER
    WASHER
