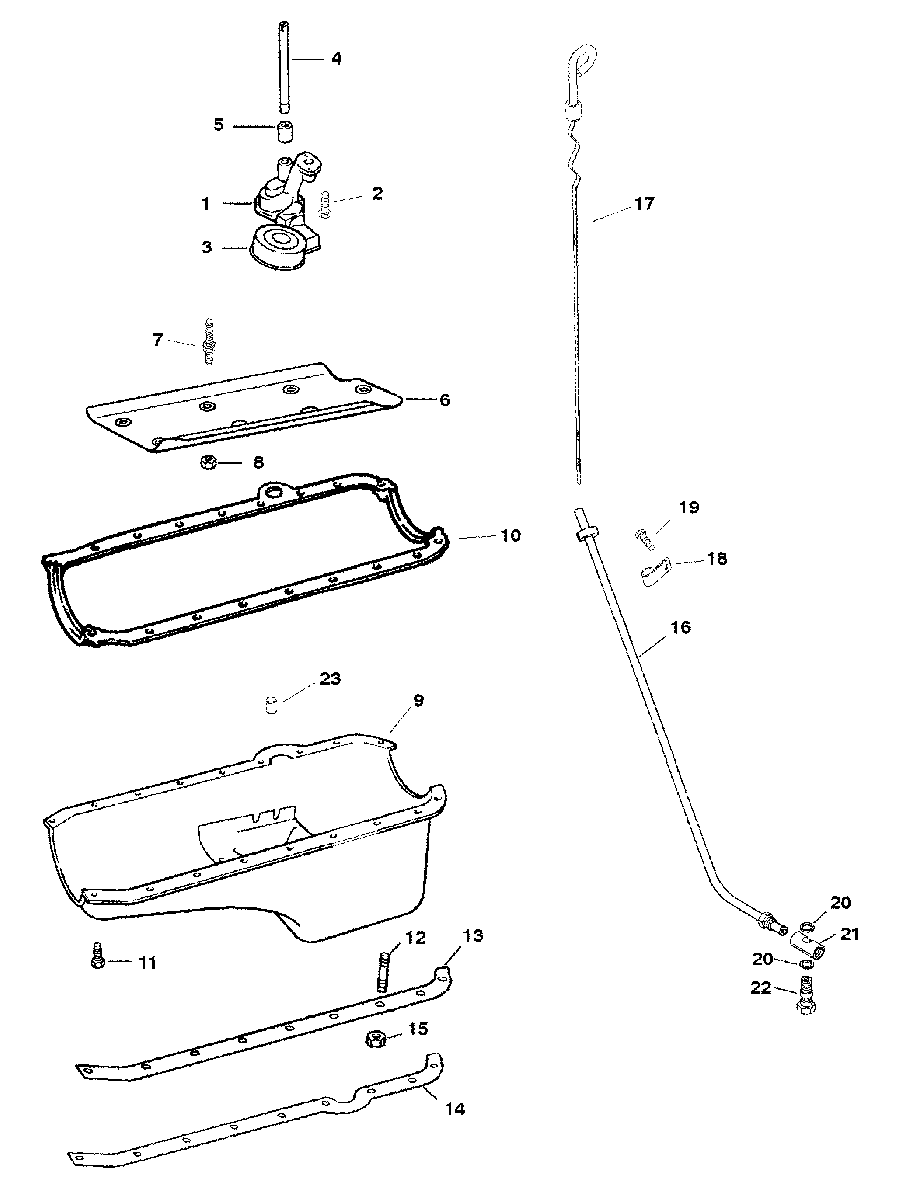

OIL PAN AND OIL PUMP для Mercruiser - 5.7L MIE GM 350 V-8 1997 0K040307 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    809907002 PUMP-OIL
    PUMP-OIL
  • 2
    10-17346 BOLT-OIL PUMP
    BOLT-OIL PUMP
  • 3
    809909 SCREEN-OIL PUMP PICK-UP
    SCREEN-OIL PUMP PICK-UP
  • 4
    36184 SHAFT
    SHAFT
  • 5
    23-36183 RETAINER
    RETAINER
  • 6
    986021 DEFLECTOR-OIL
    DEFLECTOR-OIL
  • 7
    16-850090 STUD
    STUD
  • 8
    11-845602 NUT (3/8-16)
    NUT (3/8-16)
  • 9
    805930A1 OIL PAN
    OIL PAN
  • 10
    27-138651 GASKET-OIL PAN
    GASKET-OIL PAN
  • 11
    10-14070 SCREW (1/4-20 X 5/8 IN.)
    SCREW (1/4-20 X 5/8 IN.)
  • 12
    16-11989 STUD
    STUD
  • 13
    14257 REINFORCEMENT
    (PORT)
    REINFORCEMENT
    (PORT)
  • 14
    14256 REINFORCEMENT
    (STARBOARD)
    REINFORCEMENT
    (STARBOARD)
  • 15
    11-11971 NUT
    NUT
  • 16
    805384T TUBE-DIPSTICK
    TUBE-DIPSTICK
  • 17
    861942T2 DIPSTICK
    (BORG WARNER 71C)
    DIPSTICK
    (BORG WARNER 71C)
  • 17
    861942T3 DIPSTICK
    (HURTH 630 & B/W 5000 & B/W 71 C W/REMOTE V-DRIVE)
    DIPSTICK
    (HURTH 630 & B/W 5000 & B/W 71 C W/REMOTE V-DRIVE)
  • 18
    54-8054441 CLIP-DIPSTICK TUBE
    CLIP-DIPSTICK TUBE
  • 19
    10-8M0040582 SCREW (1/4-20 X 9/16 IN.)
    SCREW (1/4-20 X 9/16 IN.)
  • 20
    27-8M0077608 GASKET
    GASKET
  • 21
    821504 FITTING-BANJO
    FITTING-BANJO
  • 22
    807497 BOLT-BANJO
    BOLT-BANJO
  • 23
    19-93654 PLUG-CYLINDER BLOCK DIPSTICK HOLE
    PLUG-CYLINDER BLOCK DIPSTICK HOLE
  • -
    27-806871A96 GASKET SET-ENGINE OVERHAUL
    GASKET SET-ENGINE OVERHAUL
