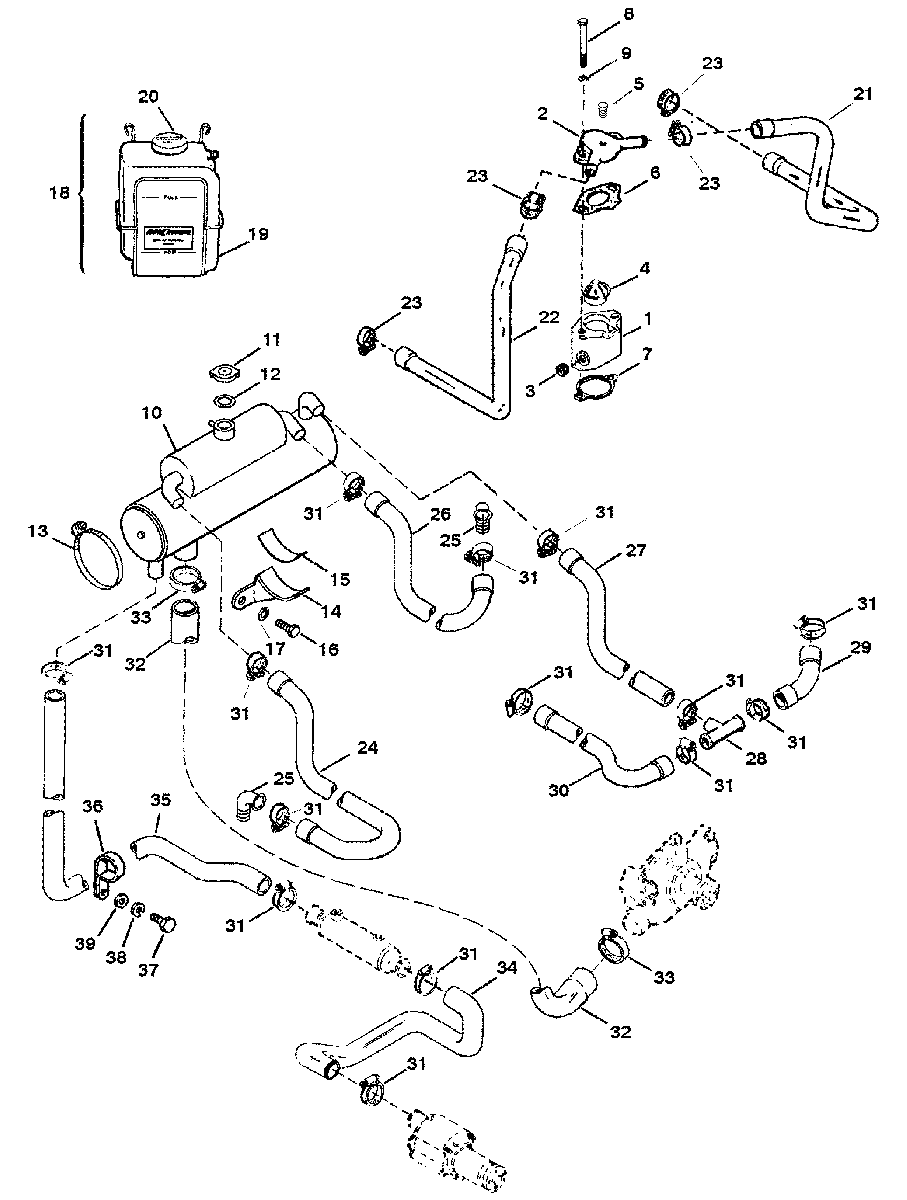

CLOSED COOLING SYSTEM для Mercruiser - 5.7L MIE GM 350 V-8 1997 0K040307 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    55131A5 HOUSING-THERMOSTAT
    HOUSING-THERMOSTAT
  • 2
    NSS COVER-THERMOSTAT HOUSING
    (PART OF 55131A5)
    COVER-THERMOSTAT HOUSING
    (PART OF 55131A5)
  • 3
    22-32803 PLUG-PIPE (3/8 IN.)
    PLUG-PIPE (3/8 IN.)
  • 4
    8M0109441 THERMOSTAT (160 DEG.)
    THERMOSTAT (160 DEG.)
  • 5
    22-328022 PLUG-DRAIN (1/8 IN.)
    PLUG-DRAIN (1/8 IN.)
  • 6
    27-488181 GASKET
    (UPPER)
    GASKET
    (UPPER)
  • 7
    27-530451 GASKET
    (LOWER)
    GASKET
    (LOWER)
  • 8
    10-48115 SCREW (3/8-16 X 3-1/2 IN.)
    SCREW (3/8-16 X 3-1/2 IN.)
  • 9
    13-35048 LOCKWASHER (3/8 IN.)
    LOCKWASHER (3/8 IN.)
  • 10
    78094A3 RESERVOIR ASSEMBLY
    RESERVOIR ASSEMBLY
  • -
    22-328022 PLUG-PIPE (1/8 IN.)
    PLUG-PIPE (1/8 IN.)
  • -
    27-65128 GASKET-END COVER
    GASKET-END COVER
  • -
    66221 COVER-END
    COVER-END
  • -
    10-66223 SCREW-END COVER
    SCREW-END COVER
  • -
    12-75451 WASHER
    WASHER
  • 11
    36-55143Q CAP-PRESSURE
    CAP-PRESSURE
  • 12
    27-71614 GASKET-CAP
    GASKET-CAP
  • 13
    54-815504372 CLAMP
    CLAMP
  • 14
    79437A2 BRACKET
    (PORT - B/W 71C)
    BRACKET
    (PORT - B/W 71C)
  • 14
    78092A1 BRACKET
    (PORT - HURTH AND B/W 5000)
    BRACKET
    (PORT - HURTH AND B/W 5000)
  • 14
    79438A3 BRACKET
    (STARBOARD - B/W 71C)
    BRACKET
    (STARBOARD - B/W 71C)
  • 14
    78093A3 BRACKET
    (STARBOARD - HURTH AND B/W 5000)
    BRACKET
    (STARBOARD - HURTH AND B/W 5000)
  • 15
    772233 PAD
    PAD
  • 16
    10-37612 SCREW (3/8-16 X 1-1/4 IN.)
    SCREW (3/8-16 X 1-1/4 IN.)
  • 17
    13-35048 LOCKWASHER (3/8 IN.)
    LOCKWASHER (3/8 IN.)
  • 18
    71587A10 RECOVERY SYSTEM-COOLANT
    (SEE NOTE)
    RECOVERY SYSTEM-COOLANT
    (SEE NOTE)
  • 19
    71587A11 PLASTIC BOTTLE
    PLASTIC BOTTLE
  • 20
    72058 CAP
    CAP
  • 21
    32-8066351 HOSE-COVER TO PORT MANIFOLD
    HOSE-COVER TO PORT MANIFOLD
  • 22
    32-807697 HOSE-COVER TO STARBOARD MANIFOLD
    HOSE-COVER TO STARBOARD MANIFOLD
  • 23
    54-815504220 CLAMP
    CLAMP
  • 24
    32-19403 HOSE-RESERVOIR TO MANIFOLD
    (STARBOARD)
    HOSE-RESERVOIR TO MANIFOLD
    (STARBOARD)
  • 24
    32-919542 HOSE-RESERVOIR TO MANIFOLD
    (STARBOARD - V-DRIVE)
    HOSE-RESERVOIR TO MANIFOLD
    (STARBOARD - V-DRIVE)
  • 25
    22-36305T ELBOW (90 DEG.)
    ELBOW (90 DEG.)
  • 26
    32-19404 HOSE-RESERVOIR TO MANIFOLD
    (PORT)
    HOSE-RESERVOIR TO MANIFOLD
    (PORT)
  • 26
    32-919542 HOSE-RESERVOIR TO MANIFOLD
    (PORT - V-DRIVE)
    HOSE-RESERVOIR TO MANIFOLD
    (PORT - V-DRIVE)
  • 27
    32-8M0062665 HOSE-TEE TO RESERVOIR
    HOSE-TEE TO RESERVOIR
  • 27
    32-91033 HOSE-TEE TO RESERVOIR
    (V-DRIVE)
    HOSE-TEE TO RESERVOIR
    (V-DRIVE)
  • 28
    22-55133 TEE
    TEE
  • 29
    32-8174382 HOSE-TEE TO EXHAUST PORT ELBOW
    HOSE-TEE TO EXHAUST PORT ELBOW
  • 30
    32-8174392 HOSE-TEE TO EXHAUST STARBOARD ELBOW
    HOSE-TEE TO EXHAUST STARBOARD ELBOW
  • 31
    54-815504222 CLAMP
    CLAMP
  • 32
    32-97525 HOSE-RESERVOIR TO WATER PUMP
    HOSE-RESERVOIR TO WATER PUMP
  • 33
    54-815504232 CLAMP
    CLAMP
  • 34
    32-92833 HOSE-WATER PUMP TO OIL COOLER
    HOSE-WATER PUMP TO OIL COOLER
  • 35
    32-92837 HOSE-RESERVOIR TO OIL COOLER
    HOSE-RESERVOIR TO OIL COOLER
  • 36
    54-47715 CLIP
    CLIP
  • 37
    10-65746 SCREW (1/4-20 X 3/4 IN.)
    SCREW (1/4-20 X 3/4 IN.)
  • 38
    13-26992 LOCKWASHER (1/4 IN.)
    LOCKWASHER (1/4 IN.)
  • 39
    12-69057 WASHER
    WASHER
  • -
    27-806871A96 ENGINE OVERHAUL GASKET SET
    ENGINE OVERHAUL GASKET SET
