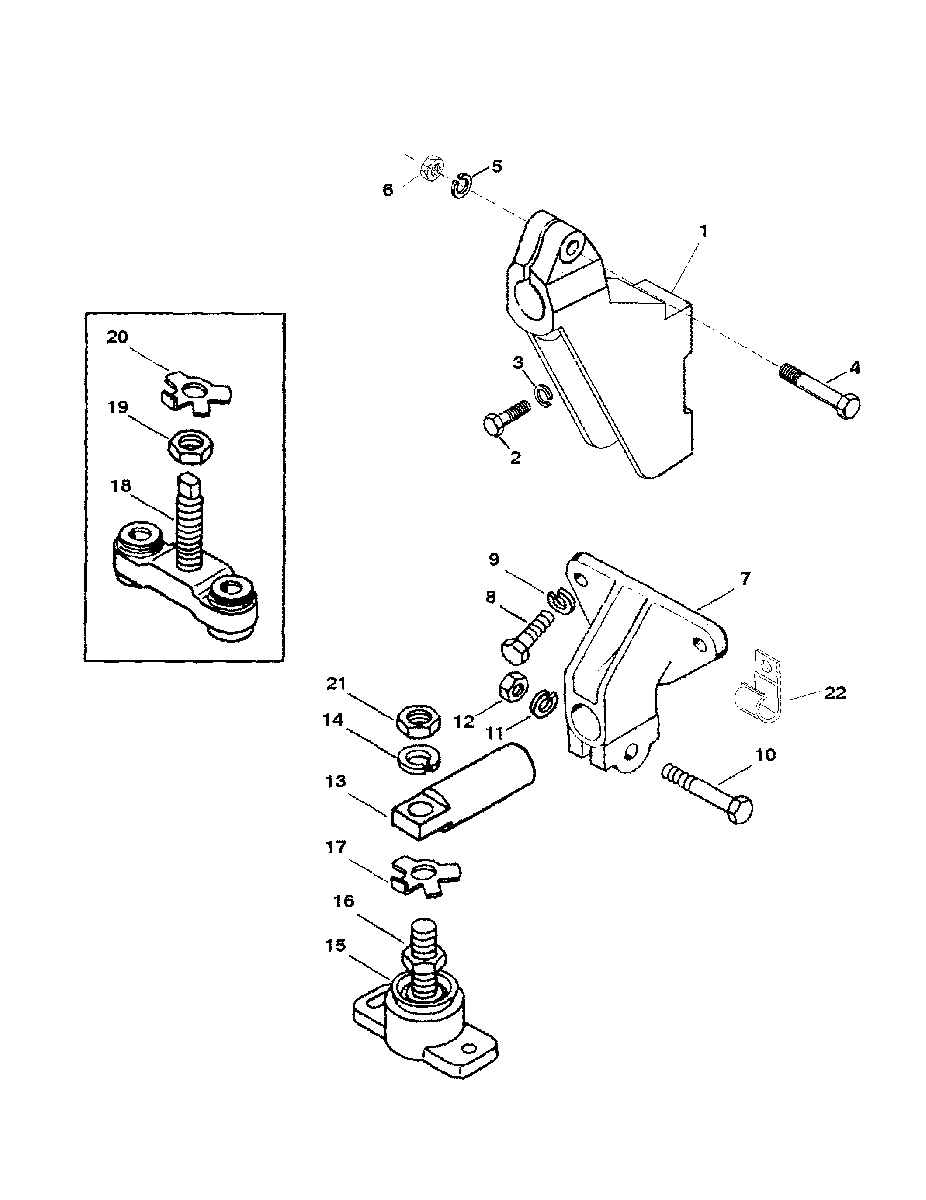

TRANSMISSION AND ENGINE MOUNTING (BORG WARNER 71C) для Mercruiser - 5.7L MIE GM 350 V-8 1997 0K040307 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    66417T BRACKET-REAR
    BRACKET-REAR
  • 1
    52158A20 BRACKET-REAR
    (REMOTE V-DRIVE)
    BRACKET-REAR
    (REMOTE V-DRIVE)
  • 2
    10-37269 SCREW (7/16-14 X 2 IN.)
    SCREW (7/16-14 X 2 IN.)
  • 2
    10-47462 SCREW (7/16-14 X 1-1/4 IN.)
    (REMOTE V-DRIVE)
    SCREW (7/16-14 X 1-1/4 IN.)
    (REMOTE V-DRIVE)
  • 3
    13-32993 LOCKWASHER (7/16 IN.)
    LOCKWASHER (7/16 IN.)
  • 4
    10-57357 SCREW (7/16-14 X 2-1/4 IN.)
    SCREW (7/16-14 X 2-1/4 IN.)
  • 4
    10-47724 SCREW (7/16-14 X 3 IN.)
    (REMOTE V-DRIVE)
    SCREW (7/16-14 X 3 IN.)
    (REMOTE V-DRIVE)
  • 5
    13-32993 LOCKWASHER (7/16 IN.)
    LOCKWASHER (7/16 IN.)
  • 6
    11-82670814 NUT (7/16-14)
    NUT (7/16-14)
  • 7
    71128A2 BRACKET-FRONT
    BRACKET-FRONT
  • 8
    10-68101 SCREW (3/8-16 X 1-3/8 IN.)
    SCREW (3/8-16 X 1-3/8 IN.)
  • 9
    13-35048 LOCKWASHER (3/8 IN.)
    LOCKWASHER (3/8 IN.)
  • 10
    10-37269 SCREW (7/16-14 X 2 IN.)
    SCREW (7/16-14 X 2 IN.)
  • 11
    13-32993 LOCKWASHER (7/16 IN.)
    LOCKWASHER (7/16 IN.)
  • 12
    11-82670814 NUT (7/16-14)
    NUT (7/16-14)
  • 13
    66166A4 TRUNNION
    TRUNNION
  • 14
    13-68102 LOCKWASHER (3/4 IN.)
    LOCKWASHER (3/4 IN.)
  • 15
    66284A2 BASE-ENGINE END
    BASE-ENGINE END
  • 16
    11-20739 NUT-JAM (3/4-16)
    NUT-JAM (3/4-16)
  • 17
    14-66658 WASHER-TAB
    WASHER-TAB
  • 18
    816326A2 BASE-TRANSMISSION END
    BASE-TRANSMISSION END
  • 19
    11-816331 NUT-JAM (3/4-16)
    NUT-JAM (3/4-16)
  • 20
    14-66658 WASHER-TAB
    WASHER-TAB
  • 21
    11-20739 NUT-JAM (3/4-16)
    NUT-JAM (3/4-16)
  • 22
    54-78945 J-CLAMP
    J-CLAMP
