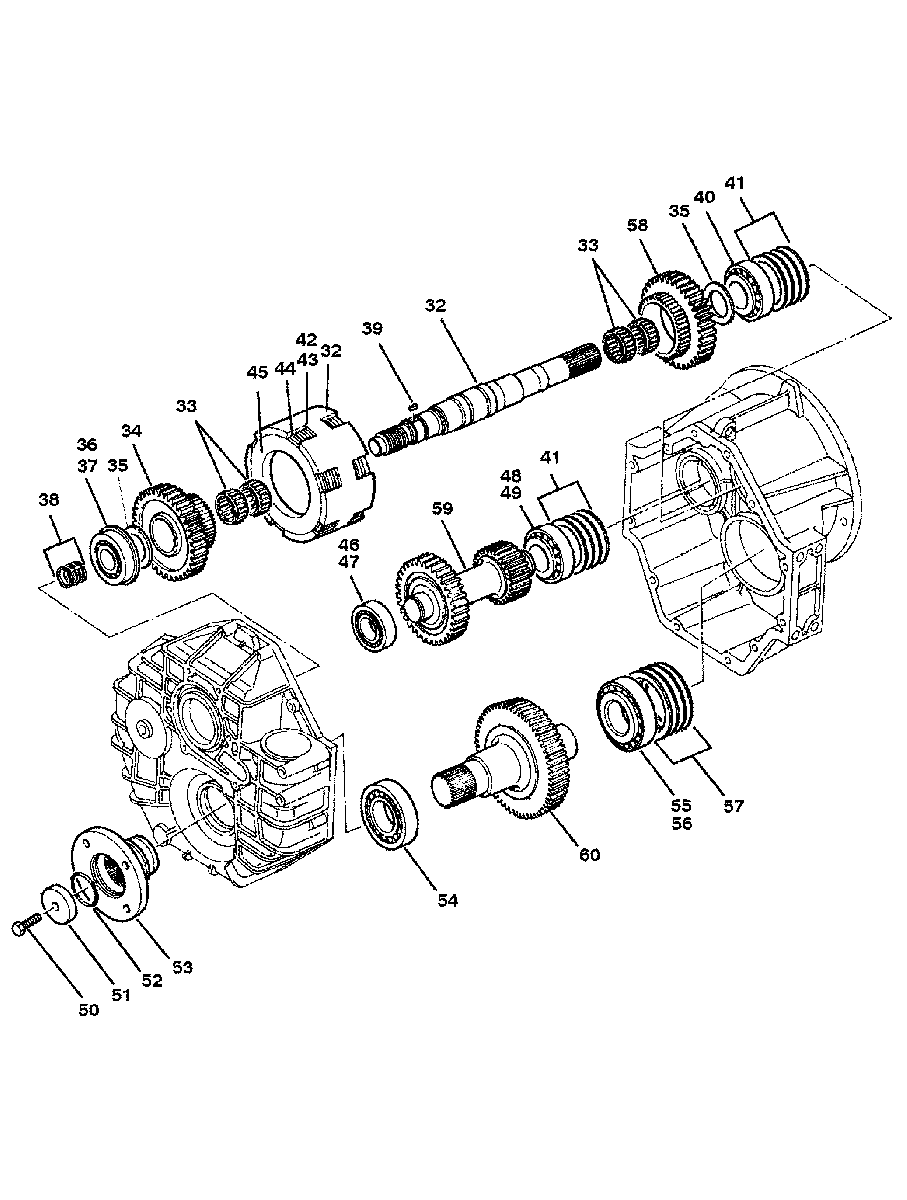

TRANSMISSION (IN-LINE) (HURTH 630) для Mercruiser - 5.7L MIE GM 350 V-8 1997 0K040307 THRU 0K999999

  • №
    Артикул
    Название
  • -
    863744T2 TRANSMISSION ASSEMBLY
    (1.5:1 RATIO)
    TRANSMISSION ASSEMBLY
    (1.5:1 RATIO)
  • -
    863744T3 TRANSMISSION ASSEMBLY
    (2.0:1 RATIO)
    TRANSMISSION ASSEMBLY
    (2.0:1 RATIO)
  • -
    863744T4 TRANSMISSION ASSEMBLY
    (2.5:1 RATIO)
    TRANSMISSION ASSEMBLY
    (2.5:1 RATIO)
  • 32
    813306 SHAFT-INPUT
    SHAFT-INPUT
  • 33
    31-813307 BEARING-ROLLER
    BEARING-ROLLER
  • 34
    43-813308 GEAR
    GEAR
  • 35
    12-813309 WASHER
    WASHER
  • 36
    31-852066 BEARING-TAPERED ROLLER (INNER)
    BEARING-TAPERED ROLLER (INNER)
  • 37
    31-852066 BEARING-TAPERED ROLLER (OUTER)
    BEARING-TAPERED ROLLER (OUTER)
  • 38
    53-813312 RING-SNAP
    RING-SNAP
  • 39
    28-813313 KEY
    KEY
  • 40
    30-813314 BEARING-BALL
    BEARING-BALL
  • 41
    15-813315 SHIM (.10 MM)
    SHIM (.10 MM)
  • 41
    15-813316 SHIM (.15 MM)
    SHIM (.15 MM)
  • 41
    15-813317 SHIM (.20 MM)
    SHIM (.20 MM)
  • 41
    15-813318 SHIM (.50 MM)
    SHIM (.50 MM)
  • 42
    813319 CLUTCH DISC-INNER
    CLUTCH DISC-INNER
  • 43
    813320 CLUTCH DISC-OUTER
    CLUTCH DISC-OUTER
  • 44
    53-813321 SNAP RING
    SNAP RING
  • 45
    813322 PRESSURE DISC
    PRESSURE DISC
  • 46
    31-813323 BEARING-TAPERED ROLLER (INNER)
    BEARING-TAPERED ROLLER (INNER)
  • 47
    31-813324 BEARING-TAPERED ROLLER (OUTER)
    BEARING-TAPERED ROLLER (OUTER)
  • 48
    31-813325 BEARING-TAPERED ROLLER (INNER)
    BEARING-TAPERED ROLLER (INNER)
  • 49
    31-813326 BEARING-TAPERED ROLLER (OUTER)
    BEARING-TAPERED ROLLER (OUTER)
  • 50
    10-813327 SCREW
    SCREW
  • 51
    23-813328 SPACER
    SPACER
  • 52
    25-813329 O-RING
    O-RING
  • 53
    813330 FLANGE-OUTPUT
    FLANGE-OUTPUT
  • 54
    31-813331 BEARING-TAPERED ROLLER
    BEARING-TAPERED ROLLER
  • 55
    31-813332 BEARING-TAPERED ROLLER (INNER)
    BEARING-TAPERED ROLLER (INNER)
  • 56
    31-813333 BEARING-TAPERED ROLLER (OUTER)
    BEARING-TAPERED ROLLER (OUTER)
  • 57
    15-813334 SHIM (.10 MM)
    SHIM (.10 MM)
  • 57
    15-813335 SHIM (.15 MM)
    SHIM (.15 MM)
  • 57
    15-813336 SHIM (.30 MM)
    SHIM (.30 MM)
  • 57
    15-813337 SHIM (.50 MM)
    SHIM (.50 MM)
  • 58
    43-813338 GEAR
    1.5:1 RATIO
    GEAR
    1.5:1 RATIO
  • 59
    813339 SHAFT-INTERMEDIATE
    1.5:1 RATIO
    SHAFT-INTERMEDIATE
    1.5:1 RATIO
  • 60
    813340 SHAFT-OUTPUT
    1.5:1 RATIO
    SHAFT-OUTPUT
    1.5:1 RATIO
  • 58
    43-813341 GEAR
    2.0:1 RATIO
    GEAR
    2.0:1 RATIO
  • 59
    813342 SHAFT-INTERMEDIATE
    2.0:1 RATIO
    SHAFT-INTERMEDIATE
    2.0:1 RATIO
  • 60
    813343 SHAFT-OUTPUT
    2.0:1 RATIO
    SHAFT-OUTPUT
    2.0:1 RATIO
  • 58
    43-813344 GEAR
    2.5:1 RATIO
    GEAR
    2.5:1 RATIO
  • 59
    813345 SHAFT-INTERMEDIATE
    2.5:1 RATIO
    SHAFT-INTERMEDIATE
    2.5:1 RATIO
  • 60
    813346 SHAFT-OUTPUT
    2.5:1 RATIO
    SHAFT-OUTPUT
    2.5:1 RATIO
