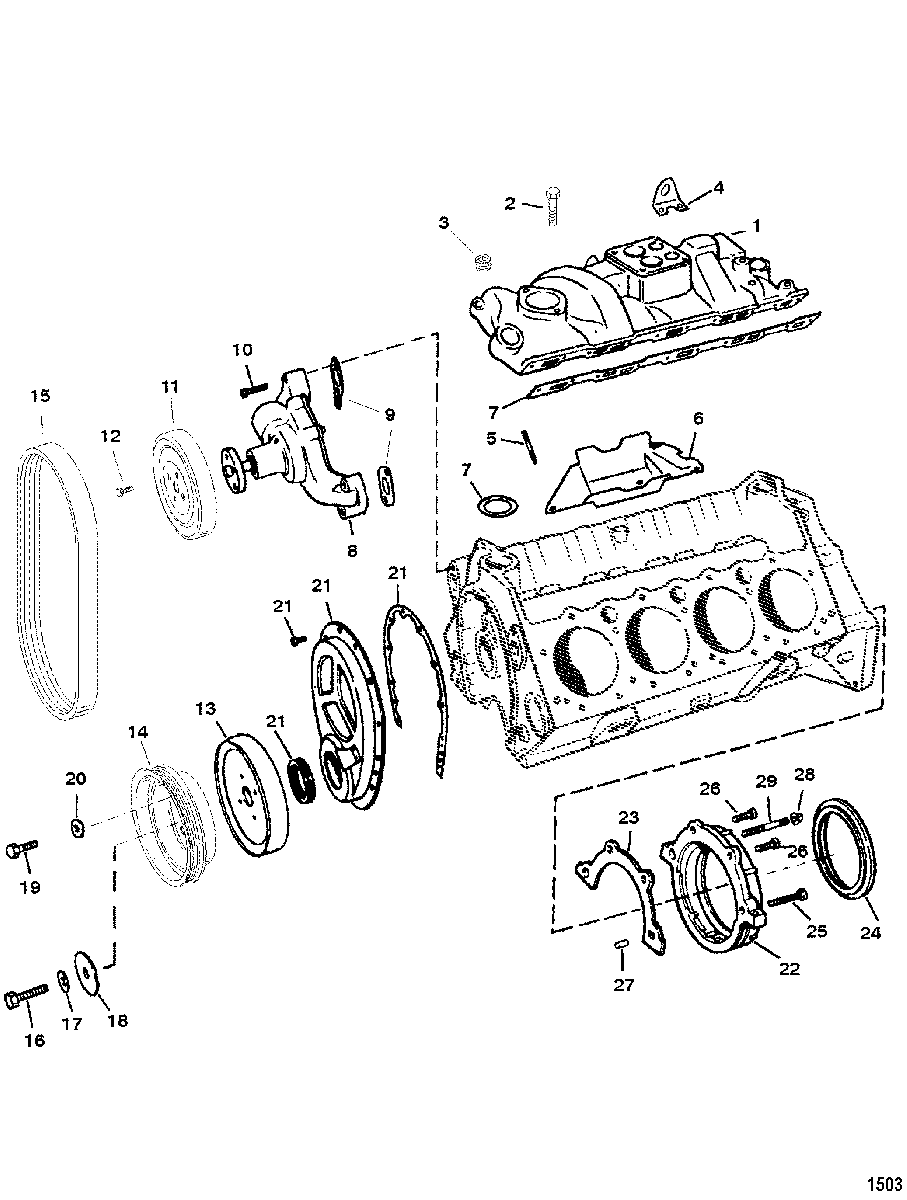

INTAKE MANIFOLD AND FRONT COVER для Mercruiser - 5.7L MIE GM 350 V-8 1997 0K040307 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    17620 MANIFOLD-INTAKE
    MANIFOLD-INTAKE
  • 2
    10-11976 BOLT (3/8-16 X 1-1/8 IN.)
    BOLT (3/8-16 X 1-1/8 IN.)
  • 2
    10-852939 BOLT (3/8-16 X 1-1/2 IN.)
    BOLT (3/8-16 X 1-1/2 IN.)
  • 3
    22-12524 PLUG-INTAKE (3/8 IN.)
    PLUG-INTAKE (3/8 IN.)
  • 4
    54-47512 LIFTING EYE
    LIFTING EYE
  • 5
    NSS STUD (GM#10229247)
    STUD (GM#10229247)
  • 6
    72647 SHIELD
    SHIELD
  • 7
    27-17145 GASKET SET-INTAKE MANIFOLD
    (Use RTV Silicone Sealant for end gasket - See Service Manual)
    GASKET SET-INTAKE MANIFOLD
    (Use RTV Silicone Sealant for end gasket - See Service Manual)
  • 8
    46-8M0113734 PUMP ASSEMBLY-WATER
    PUMP ASSEMBLY-WATER
  • 9
    27-34897 GASKET-WATER PUMP
    GASKET-WATER PUMP
  • 10
    10-32132 SCREW (3/8-16 X 1-3/4 IN.)
    SCREW (3/8-16 X 1-3/4 IN.)
  • 10
    10-47688 SCREW (3/8-16 X 2-3/4 IN.)
    SCREW (3/8-16 X 2-3/4 IN.)
  • 10
    16-8M0076418 STUD
    STUD
  • 11
    807729T PULLEY-WATER PUMP
    PULLEY-WATER PUMP
  • 12
    10-47277 SCREW (5/16-24 X 3/4 IN.)
    SCREW (5/16-24 X 3/4 IN.)
  • 13
    809892T BALANCER-HARMONIC
    BALANCER-HARMONIC
  • 14
    807730T PULLEY-CRANKSHAFT
    PULLEY-CRANKSHAFT
  • 15
    57-807755Q04 BELT-SERPENTINE
    BELT-SERPENTINE
  • 16
    10-8M2021674 BOLT (7/16-20 X 2-1/2 IN.)
    BOLT (7/16-20 X 2-1/2 IN.)
  • 17
    13-39131 LOCKWASHER
    LOCKWASHER
  • 18
    12-35332001 WASHER
    WASHER
  • 19
    10-34352 BOLT (3/8-24 X 7/8 IN.)
    BOLT (3/8-24 X 7/8 IN.)
  • 20
    12-34714 WASHER
    WASHER
  • 21
    835005 TIMING COVER ASSEMBLY
    (SCREWS-GROMMETS-OIL SEAL AND GASKET ARE NOT SOLD SEPARATELY.)
    TIMING COVER ASSEMBLY
    (SCREWS-GROMMETS-OIL SEAL AND GASKET ARE NOT SOLD SEPARATELY.)
  • 22
    852940 RETAINER-OIL SEAL (REAR)
    RETAINER-OIL SEAL (REAR)
  • 23
    27-881715 GASKET
    GASKET
  • 24
    26-852941 SEAL-OIL (REAR)
    SEAL-OIL (REAR)
  • 25
    10-8M0064241 BOLT (1/4-20 X 1-3/4 IN.)
    BOLT (1/4-20 X 1-3/4 IN.)
  • 26
    10-14242 BOLT (1/4-20 X 7/8 IN.)
    BOLT (1/4-20 X 7/8 IN.)
  • 27
    17-14263 PIN-DOWEL
    PIN-DOWEL
  • 28
    11-8M0098315 NUT (1/4-20)
    NUT (1/4-20)
  • 29
    16-14827 STUD
    STUD
  • -
    27-806871A96 GASKET SET-ENGINE OVERHAUL
    GASKET SET-ENGINE OVERHAUL
