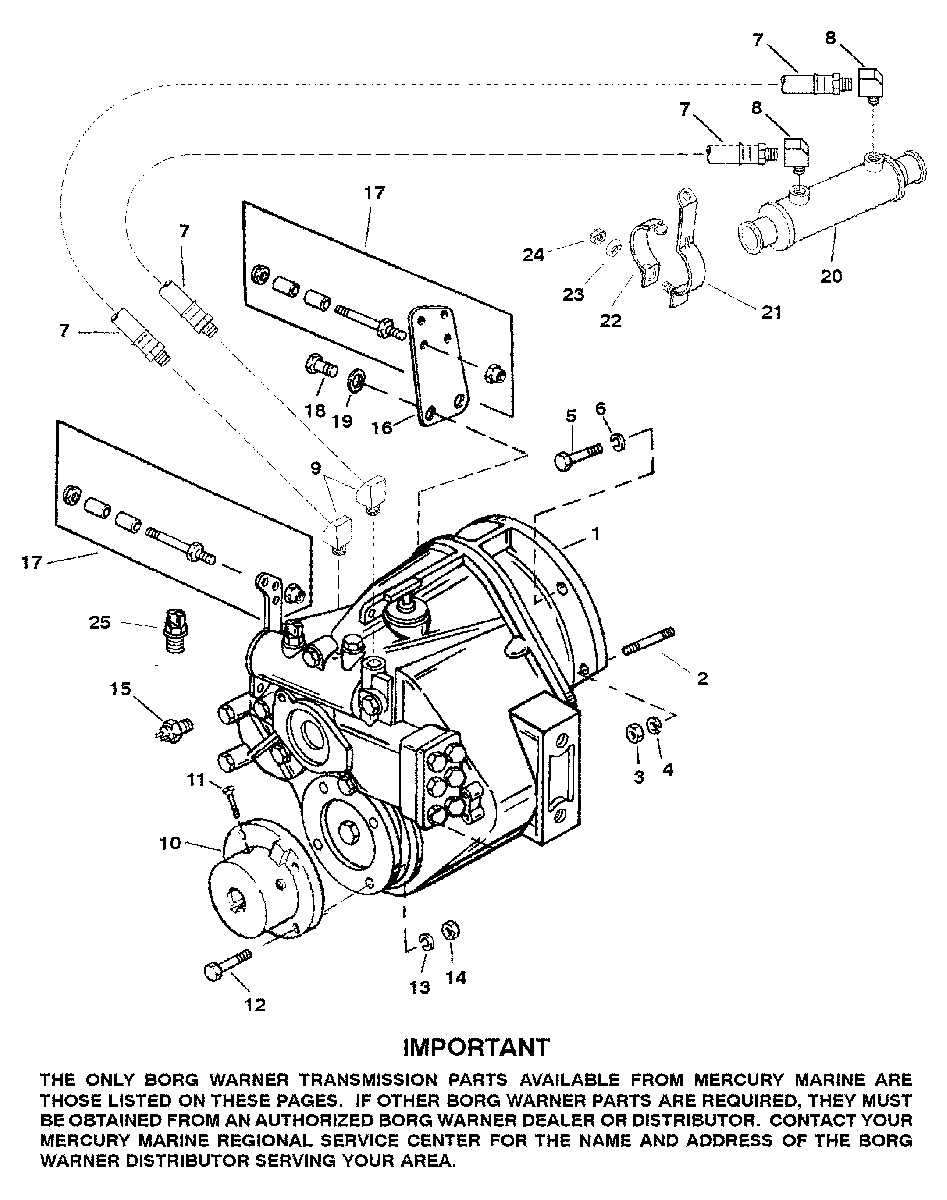

TRANSMISSION AND RELATED PARTS (BORG WARNER 5000) для Mercruiser - 5.7L MIE GM 350 V-8 1997 0K040307 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    805495R57 TRANSMISSION
    (1.50:1 RATIO)
    TRANSMISSION
    (1.50:1 RATIO)
  • 1
    805495R58 TRANSMISSION
    (2.00:1 RATIO)
    TRANSMISSION
    (2.00:1 RATIO)
  • 1
    805495R59 TRANSMISSION
    (2.45:1 RATIO)
    TRANSMISSION
    (2.45:1 RATIO)
  • 2
    16-805259 STUD
    STUD
  • 3
    11-34933 NUT (7/16-20)
    NUT (7/16-20)
  • 4
    12-22248 WASHER
    WASHER
  • 5
    10-47462 SCREW (7/16-14 X 1-1/4 IN.)
    SCREW (7/16-14 X 1-1/4 IN.)
  • 6
    13-32993 LOCKWASHER (7/16 IN.)
    LOCKWASHER (7/16 IN.)
  • 7
    32-4751613 HOSE-OIL
    HOSE-OIL
  • 8
    22-47629 ELBOW (90 DEG.)
    ELBOW (90 DEG.)
  • 9
    22-63835 ELBOW (45 DEG.)
    ELBOW (45 DEG.)
  • 10
    87917A1 FLANGE ASSEMBLY (4 X 1 IN.)
    FLANGE ASSEMBLY (4 X 1 IN.)
  • 10
    79476A1 FLANGE ASSEMBLY (5 X 1 IN.)
    FLANGE ASSEMBLY (5 X 1 IN.)
  • 10
    79476A2 FLANGE ASSEMBLY (5 X 1-1/8 IN.)
    FLANGE ASSEMBLY (5 X 1-1/8 IN.)
  • 10
    79476A3 FLANGE ASSEMBLY (5 X 1-1/4 IN.)
    FLANGE ASSEMBLY (5 X 1-1/4 IN.)
  • 10
    79476A4 FLANGE ASSEMBLY (5 X 1-3/8 IN.)
    FLANGE ASSEMBLY (5 X 1-3/8 IN.)
  • 10
    79476A5 FLANGE ASSEMBLY (5 X 1-1/2 IN.)
    FLANGE ASSEMBLY (5 X 1-1/2 IN.)
  • 10
    79476A6 FLANGE ASSEMBLY (5 X 1-3/4 IN.)
    FLANGE ASSEMBLY (5 X 1-3/4 IN.)
  • 10
    79476A7 FLANGE ASSEMBLY (5 X 2 IN.)
    FLANGE ASSEMBLY (5 X 2 IN.)
  • 11
    10-60171 SCREW (3/8-16 X 1-1/4 IN.)
    SCREW (3/8-16 X 1-1/4 IN.)
  • 11
    10-60169 SCREW (3/8-16 X 3/4 IN.)
    SCREW (3/8-16 X 3/4 IN.)
  • 12
    10-68101 SCREW (3/8-16 X 1-1/4 IN.)
    4 IN. FLANGE
    SCREW (3/8-16 X 1-1/4 IN.)
    4 IN. FLANGE
  • 13
    13-35048 LOCKWASHER (3/8 IN.)
    4 IN. FLANGE
    LOCKWASHER (3/8 IN.)
    4 IN. FLANGE
  • 14
    11-32219 NUT (3/8-16)
    4 IN. FLANGE
    NUT (3/8-16)
    4 IN. FLANGE
  • 12
    10-805159 SCREW (7/16-20 X 1-1/2 IN.)
    5 IN. FLANGE
    SCREW (7/16-20 X 1-1/2 IN.)
    5 IN. FLANGE
  • 13
    13-32993 LOCKWASHER (7/16 IN.)
    5 IN. FLANGE
    LOCKWASHER (7/16 IN.)
    5 IN. FLANGE
  • 14
    11-22024 NUT (7/16-20)
    5 IN. FLANGE
    NUT (7/16-20)
    5 IN. FLANGE
  • 15
    87-88031 SWITCH-TEMPERATURE
    SWITCH-TEMPERATURE
  • 16
    806238 BRACKET-SHIFT LINKAGE
    BRACKET-SHIFT LINKAGE
  • 17
    16-97477A3 STUD KIT
    STUD KIT
  • 18
    10-40001124 SCREW (M8 X 14)
    SCREW (M8 X 14)
  • 19
    13-400247 LOCKWASHER (M8)
    LOCKWASHER (M8)
  • 20
    63832A1 COOLER-OIL
    COOLER-OIL
  • 21
    807402T1 BRACKET
    BRACKET
  • 22
    807445T CLAMP
    CLAMP
  • 23
    12-35462 WASHER
    WASHER
  • 24
    11-8267088 NUT (1/4-20)
    NUT (1/4-20)
  • 25
    47613 SWITCH-NEUTRAL SAFETY
    SWITCH-NEUTRAL SAFETY
