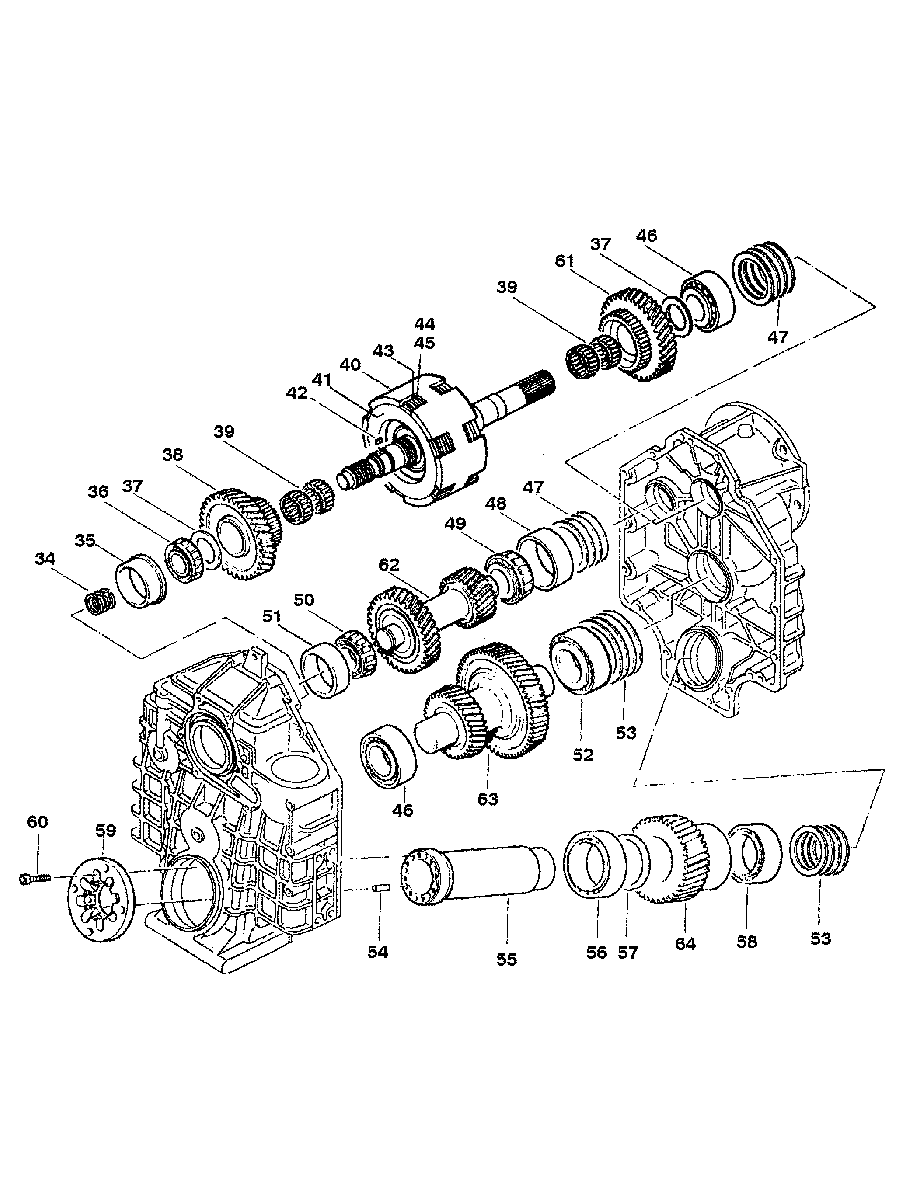

TRANSMISSION (V-DRIVE) (HURTH 630) для Mercruiser - 5.7L MIE GM 350 V-8 1997 0K040307 THRU 0K999999

  • №
    Артикул
    Название
  • -
    863745T2 TRANSMISSION ASSEMBLY
    (1.5:1 RATIO)
    TRANSMISSION ASSEMBLY
    (1.5:1 RATIO)
  • -
    863745T3 TRANSMISSION ASSEMBLY
    (2.0:1 RATIO)
    TRANSMISSION ASSEMBLY
    (2.0:1 RATIO)
  • -
    863745T4 TRANSMISSION ASSEMBLY
    (2.5:1 RATIO)
    TRANSMISSION ASSEMBLY
    (2.5:1 RATIO)
  • 34
    53-813321 SNAP RING
    SNAP RING
  • 35
    31-811970 BEARING-TAPERED ROLLER CUP
    BEARING-TAPERED ROLLER CUP
  • 36
    31-811969 BEARING-TAPERED ROLLER CONE
    BEARING-TAPERED ROLLER CONE
  • 37
    12-811967 WASHER
    WASHER
  • 38
    43-813308 GEAR
    GEAR
  • 39
    31-813307 BEARING-ROLLER
    BEARING-ROLLER
  • 40
    813306 SHAFT-INPUT
    SHAFT-INPUT
  • 41
    813322 PRESSURE DISC
    PRESSURE DISC
  • 42
    28-813313 KEY
    KEY
  • 43
    53-813321 RING-SNAP
    RING-SNAP
  • 44
    813319 CLUTCH DISC-INNER
    CLUTCH DISC-INNER
  • 45
    813320 CLUTCH DISC-OUTER
    CLUTCH DISC-OUTER
  • 46
    30-811968 BEARING-BALL
    BEARING-BALL
  • 47
    15-813315 SHIM (.10 MM)
    SHIM (.10 MM)
  • 47
    15-813316 SHIM (.15 MM)
    SHIM (.15 MM)
  • 47
    15-813317 SHIM (.20 MM)
    SHIM (.20 MM)
  • 47
    15-813318 SHIM (.50 MM)
    SHIM (.50 MM)
  • 48
    31-811979 BEARING-TAPERED ROLLER CUP
    BEARING-TAPERED ROLLER CUP
  • 49
    31-811978 BEARING-TAPERED ROLLER CONE
    BEARING-TAPERED ROLLER CONE
  • 50
    31-811971 BEARING-TAPERED ROLLER CONE
    BEARING-TAPERED ROLLER CONE
  • 51
    31-811977 BEARING-TAPERED ROLLER CUP
    BEARING-TAPERED ROLLER CUP
  • 52
    31-811972 BEARING-TAPERED ROLLER
    BEARING-TAPERED ROLLER
  • 53
    15-811973 SHIM (.10 MM)
    SHIM (.10 MM)
  • 53
    15-811974 SHIM (.15 MM)
    SHIM (.15 MM)
  • 53
    15-811975 SHIM (.30 MM)
    SHIM (.30 MM)
  • 53
    15-811976 SHIM (.50 MM)
    SHIM (.50 MM)
  • 54
    17-811984 PIN-DOWEL
    PIN-DOWEL
  • 55
    811980 SHAFT-OUTPUT
    SHAFT-OUTPUT
  • 56
    31-811985 BEARING-TAPERED ROLLER
    BEARING-TAPERED ROLLER
  • 57
    12-811981 WASHER
    WASHER
  • 58
    31-811986 BEARING-TAPERED ROLLER
    BEARING-TAPERED ROLLER
  • 59
    811982 FLANGE-OUTPUT
    FLANGE-OUTPUT
  • 60
    10-811983 SCREW
    SCREW
  • 61
    43-811987 GEAR
    1.5:1 RATIO
    GEAR
    1.5:1 RATIO
  • 62
    811951 SHAFT-REVERSING
    1.5:1 RATIO
    SHAFT-REVERSING
    1.5:1 RATIO
  • 63
    811952 SHAFT-INTERMEDIATE
    1.5:1 RATIO
    SHAFT-INTERMEDIATE
    1.5:1 RATIO
  • 64
    43-811950 GEAR
    1.5:1 RATIO
    GEAR
    1.5:1 RATIO
  • 61
    43-811949 GEAR
    2.0:1 RATIO
    GEAR
    2.0:1 RATIO
  • 62
    811947 SHAFT-REVERSING
    2.0:1 RATIO
    SHAFT-REVERSING
    2.0:1 RATIO
  • 63
    811948 SHAFT-INTERMEDIATE
    2.0:1 RATIO
    SHAFT-INTERMEDIATE
    2.0:1 RATIO
  • 64
    43-811950 GEAR
    2.0:1 RATIO
    GEAR
    2.0:1 RATIO
  • 61
    43-811949 GEAR
    2.5:1 RATIO
    GEAR
    2.5:1 RATIO
  • 62
    811947 SHAFT-REVERSING
    2.5:1 RATIO
    SHAFT-REVERSING
    2.5:1 RATIO
  • 63
    811946 SHAFT-INTERMEDIATE
    2.5:1 RATIO
    SHAFT-INTERMEDIATE
    2.5:1 RATIO
  • 64
    43-811945 GEAR
    2.5:1 RATIO
    GEAR
    2.5:1 RATIO
