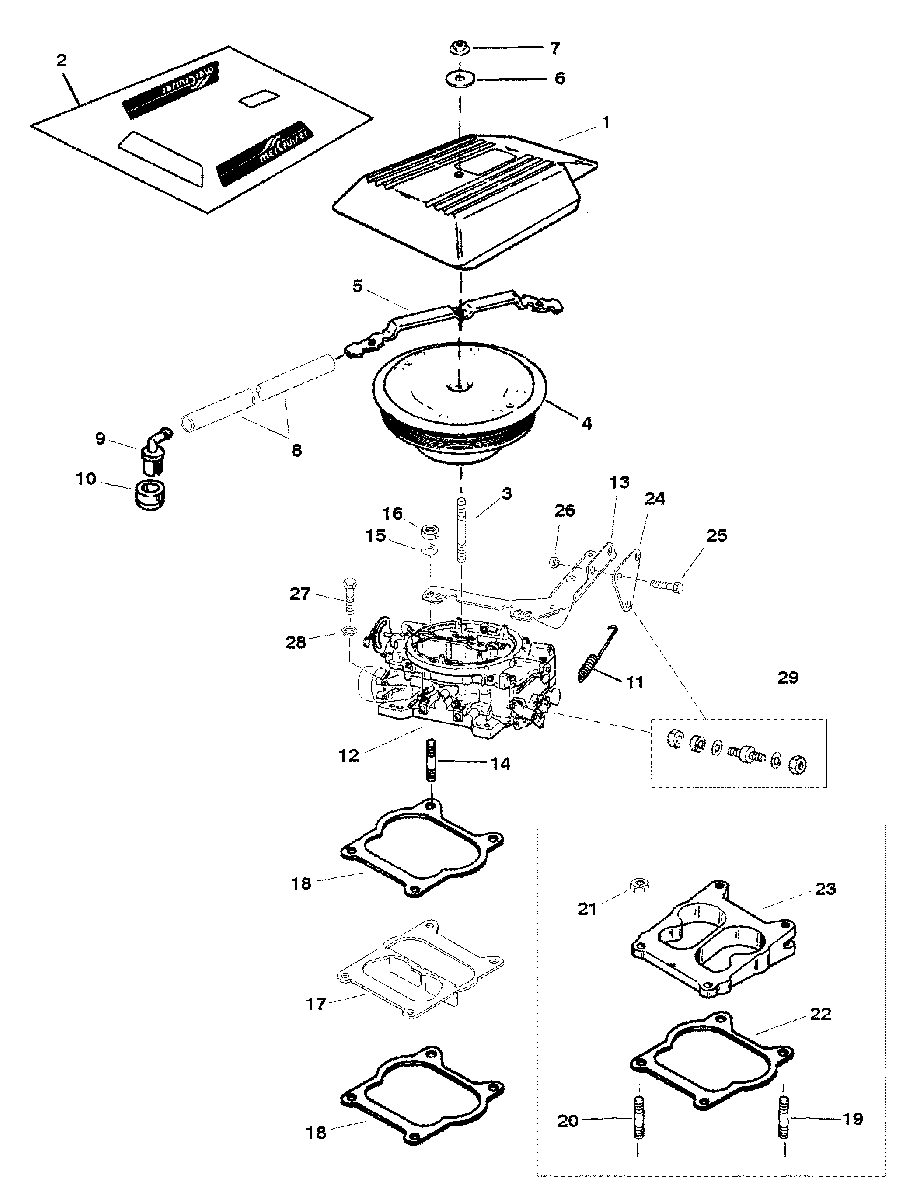

CARBURETOR AND THROTTLE LINKAGE для Mercruiser - 5.7L MIE GM 350 V-8 1997 0K040307 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    18484A3 COVER-CARBURETOR
    COVER-CARBURETOR
  • 2
    37-812776A37 DECAL
    DECAL
  • 3
    16-805296 STUD (4-1/2 IN.)
    STUD (4-1/2 IN.)
  • 4
    805298A1 FLAME ARRESTOR
    FLAME ARRESTOR
  • 5
    805314 RETAINER-BREATHER HOSE
    RETAINER-BREATHER HOSE
  • 6
    12-86400 WASHER
    WASHER
  • 7
    11-826709109 NUT (1/4-28)
    NUT (1/4-28)
  • 8
    32-8M0062669 HOSE
    HOSE
  • 9
    97850T ELBOW (90 DEG.)
    ELBOW (90 DEG.)
  • 10
    23-8M0071559 GROMMET
    GROMMET
  • 11
    24-897454 SPRING
    SPRING
  • 12
    3310-807262R02 CARBURETOR ASSEMBLY
    CARBURETOR ASSEMBLY
  • 13
    805359T BRACKET
    BRACKET
  • 14
    16-53724 STUD-REAR (5/16 X 1-3/4 IN.)
    STUD-REAR (5/16 X 1-3/4 IN.)
  • 15
    12-20084 WASHER
    WASHER
  • 16
    11-29250 NUT (5/16-24)
    NUT (5/16-24)
  • 17
    807228A1 SPACER
    SPACER
  • 18
    27-524572 GASKET
    GASKET
  • 19
    16-63332 STUD-LOWER REAR (5/16 X 1-9/32 IN.)
    BORG WARNER 71C
    STUD-LOWER REAR (5/16 X 1-9/32 IN.)
    BORG WARNER 71C
  • 20
    16-8M0113177 STUD-FRONT (5/16 X 1-1/2 IN.)
    BORG WARNER 71C
    STUD-FRONT (5/16 X 1-1/2 IN.)
    BORG WARNER 71C
  • 21
    11-862902 NUT (5/16-24)
    BORG WARNER 71C
    NUT (5/16-24)
    BORG WARNER 71C
  • 22
    27-524572 GASKET
    BORG WARNER 71C
    GASKET
    BORG WARNER 71C
  • 23
    821109T WEDGE-CARBURETOR
    BORG WARNER 71C
    WEDGE-CARBURETOR
    BORG WARNER 71C
  • 24
    806996 BRACKET
    BORG WARNER 71C
    BRACKET
    BORG WARNER 71C
  • 25
    10-38601 SCREW (1/4-28 X 5/8 IN.)
    BORG WARNER 71C
    SCREW (1/4-28 X 5/8 IN.)
    BORG WARNER 71C
  • 26
    11-8267089 NUT (1/4-28)
    BORG WARNER 71C
    NUT (1/4-28)
    BORG WARNER 71C
  • 27
    10-74824 SCREW (5/16-18 X 1-1/4 IN.)
    HURTH 630 & BORG WARNER 5000 & BORG WARNER 71C W/ REMOTE V-DRIVE
    SCREW (5/16-18 X 1-1/4 IN.)
    HURTH 630 & BORG WARNER 5000 & BORG WARNER 71C W/ REMOTE V-DRIVE
  • 28
    13-39107 LOCKWASHER
    HURTH 630 & BORG WARNER 5000 & BORG WARNER 71C W/ REMOTE V-DRIVE
    LOCKWASHER
    HURTH 630 & BORG WARNER 5000 & BORG WARNER 71C W/ REMOTE V-DRIVE
  • 29
    16-97477A3 STUD KIT
    STUD KIT
  • -
    27-806871A96 GASKET SET-ENGINE OVERHAUL
    GASKET SET-ENGINE OVERHAUL
