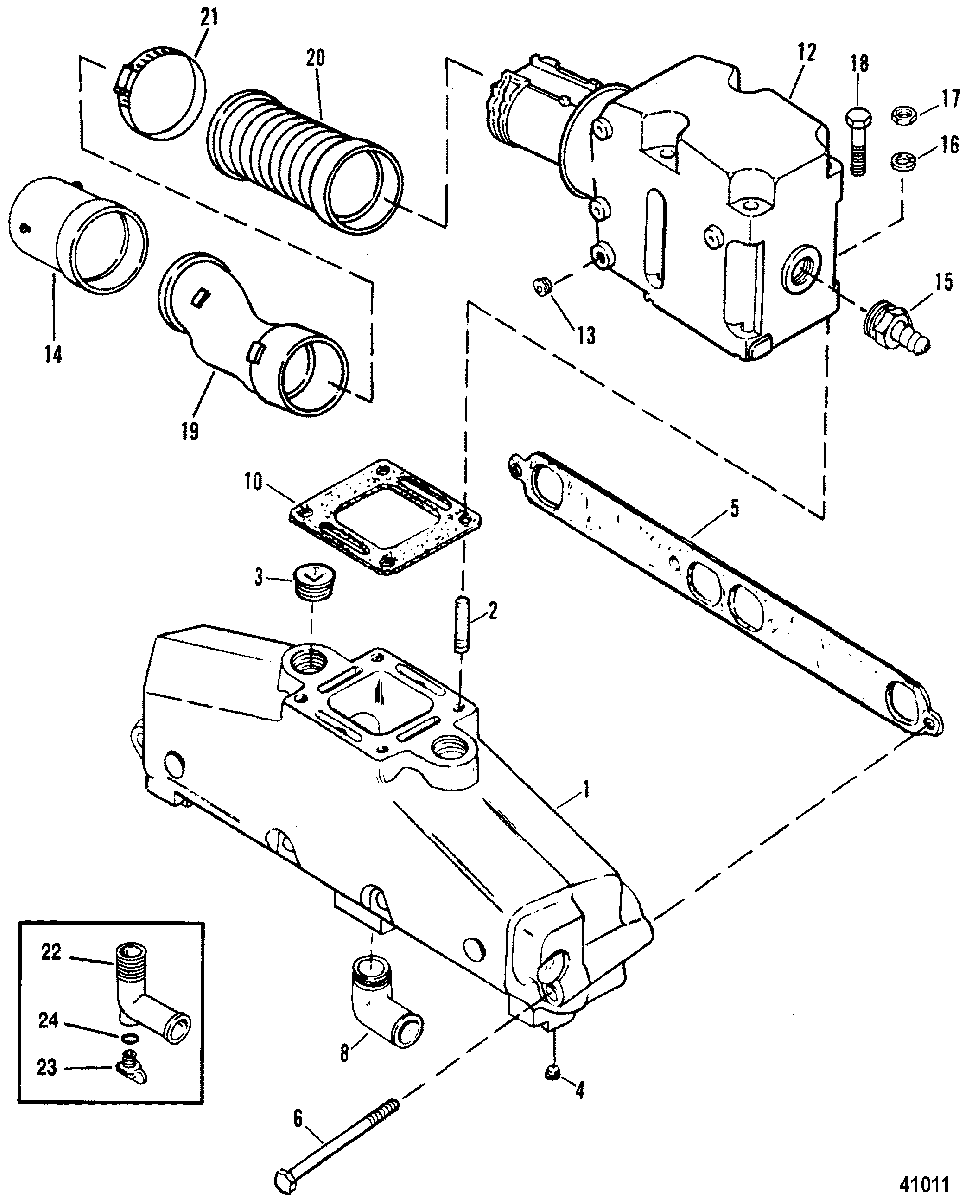

Exhaust Manifold & Exhaust Elbow для Mercruiser - 5.7L COMPETITION SKI GM 350 V-8 1987-1995 0B514627 THRU 0F775199
-
№АртикулНазвание
-
1860246A15 MANIFOLD ASSEMBLY, ExhaustMANIFOLD ASSEMBLY, Exhaust
-
216-49545 STUD, (3/8 x 1.75)
(Not used with 7 Degree Exhaust Elbow)STUD, (3/8 x 1.75)
(Not used with 7 Degree Exhaust Elbow) -
322-416223 PLUG, (3/4-14)PLUG, (3/4-14)
-
422-48118 PLUGPLUG
-
527-33395 GASKETGASKET
-
610-53728 SCREW, (.375-16 x 4.75)SCREW, (.375-16 x 4.75)
-
822-36305T ELBOW, (90 Degrees) (90 DEGREES) MetalELBOW, (90 Degrees) (90 DEGREES) Metal
-
822-866725 FITTING, Straight (STRAIGHT) MetalFITTING, Straight (STRAIGHT) Metal
-
1027-863724 GASKET
(Standard Cooling)GASKET
(Standard Cooling) -
1298504A3 ELBOW ASSEMBLY, Exhaust (15 Degrees, 3 In. Outside Diameter)ELBOW ASSEMBLY, Exhaust (15 Degrees, 3 In. Outside Diameter)
-
12807988A03 ELBOW ASSEMBLY, Exhaust (7 Degrees, 4 In. Outside Diameter)ELBOW ASSEMBLY, Exhaust (7 Degrees, 4 In. Outside Diameter)
-
1322-36382 FITTING, (.250-18 x .62) BrassFITTING, (.250-18 x .62) Brass
-
1432-58616A2 TUBE
(Not included with 7 Degree Elbow)TUBE
(Not included with 7 Degree Elbow) -
1522-866725 FITTING, Straight (STRAIGHT)FITTING, Straight (STRAIGHT)
-
1613-35048 LOCKWASHER, (.375)
(Not Used with 7 Degree Elbow)LOCKWASHER, (.375)
(Not Used with 7 Degree Elbow) -
1711-49838 NUT
(Not Used with 7 Degree Elbow)NUT
(Not Used with 7 Degree Elbow) -
1810-43749 SCREW, (.375-16 x 5.750)
(Use with 7 Degree Elbow)SCREW, (.375-16 x 5.750)
(Use with 7 Degree Elbow) -
19807153T PIPE, Exhaust
(Use with 7 Degree Elbow) (Mounted Below Transmission Mount)PIPE, Exhaust
(Use with 7 Degree Elbow) (Mounted Below Transmission Mount) -
1942422A2 PIPE ASSEMBLY, Exhaust
(Use with 7 Degree Elbow) (Mounted Above Transmission Mount)PIPE ASSEMBLY, Exhaust
(Use with 7 Degree Elbow) (Mounted Above Transmission Mount) -
2032-44348001 TUBE
(Use with 7 Degree Elbow)TUBE
(Use with 7 Degree Elbow) -
2154-815504372 CLAMP, Worm Gear
(Use with 7 Degree Elbow)CLAMP, Worm Gear
(Use with 7 Degree Elbow) -
2222-862210A01 ELBOW KIT, Drain, PlasticELBOW KIT, Drain, Plastic
-
2322-8M0119211 PLUG KIT, (.500-13) Royal Blue, PlasticPLUG KIT, (.500-13) Royal Blue, Plastic
-
2425-32509 QUAD RING, PlasticQUAD RING, Plastic
