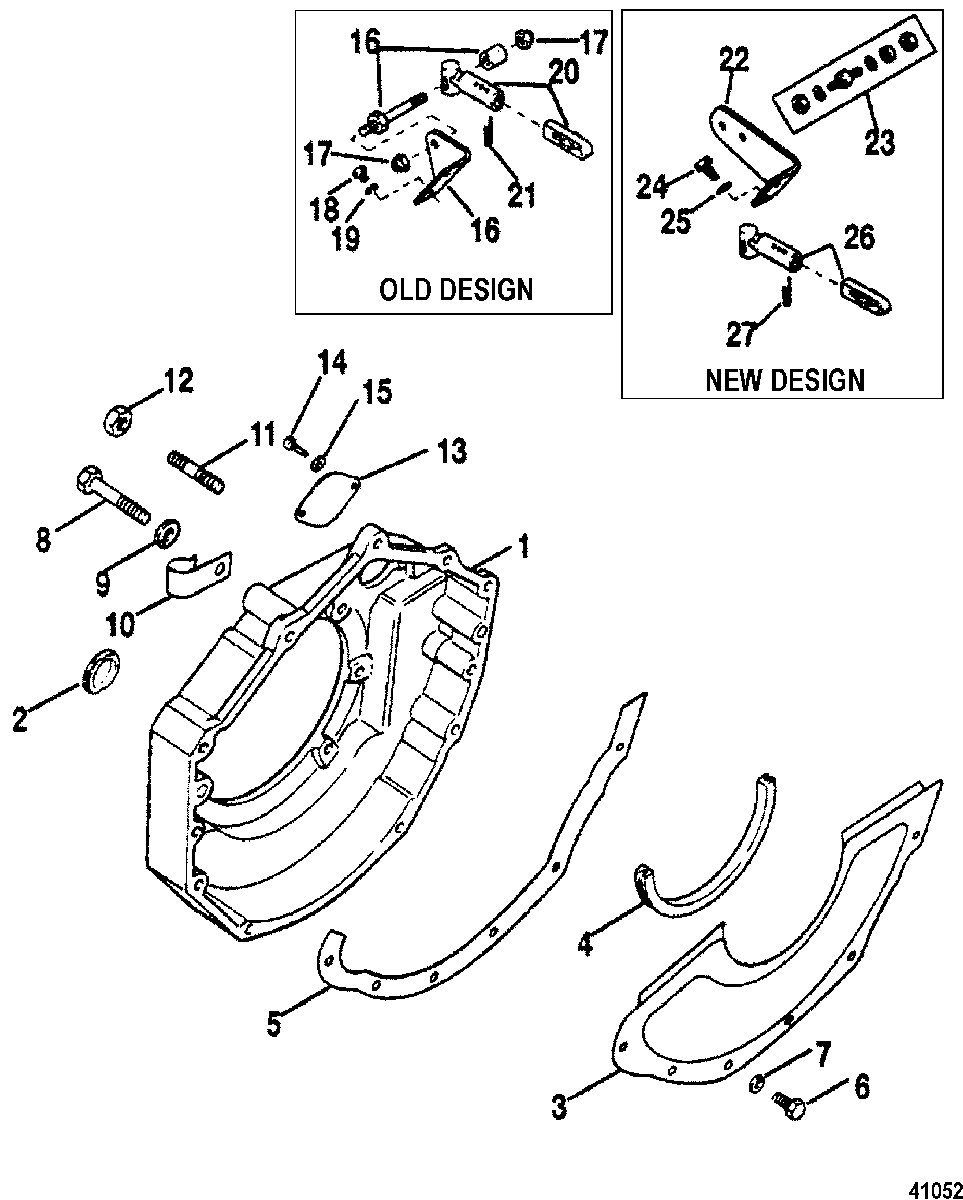

Flywheel Housing для Mercruiser - 5.7L COMPETITION SKI GM 350 V-8 1987-1995 0B514627 THRU 0F775199

  • №
    Артикул
    Название
  • 1
    814309A1 HOUSING ASSEMBLY
    HOUSING ASSEMBLY
  • 2
    19-12304 PLUG
    PLUG
  • 3
    818718A3 COVER KIT
    (L.H. Rotation)
    COVER KIT
    (L.H. Rotation)
  • 3
    818718A4 COVER ASSEMBLY
    (R.H. Rotation)
    COVER ASSEMBLY
    (R.H. Rotation)
  • 4
    87690 SEAL
    (R.H. Rotation)
    SEAL
    (R.H. Rotation)
  • 5
    27-86015 GASKET
    GASKET
  • 6
    10-98253 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 7
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 8
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 8
    10-47688 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 8
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 8
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 9
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 9
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 10
    54-78945 J CLAMP
    J CLAMP
  • 11
    16-861316 STUD, (.375-16 x 2.750) Special
    STUD, (.375-16 x 2.750) Special
  • 12
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
  • 13
    939201 PLATE
    (L.H. Rotation)
    PLATE
    (L.H. Rotation)
  • 14
    10-92913 SCREW, (.437-14 x .750)
    (L.H. Rotation)
    SCREW, (.437-14 x .750)
    (L.H. Rotation)
  • 15
    13-32993 LOCKWASHER, (.437)
    (L.H. Rotation)
    LOCKWASHER, (.437)
    (L.H. Rotation)
  • 16
    18351A1 BRACKET ASSEMBLY
    Old Design
    BRACKET ASSEMBLY
    Old Design
  • 17
    11-862902 NUT, (.9375-24)
    Old Design
    NUT, (.9375-24)
    Old Design
  • 18
    10-54615 SCREW, (.250-20 x .625)
    Old Design
    SCREW, (.250-20 x .625)
    Old Design
  • 19
    13-26992 LOCKWASHER, (.250) Stainless Steel
    Old Design
    LOCKWASHER, (.250) Stainless Steel
    Old Design
  • 20
    64-892790A01 ADAPTOR KIT
    Old Design
    ADAPTOR KIT
    Old Design
  • 21
    64-892790A01 CLIP
    Old Design
    CLIP
    Old Design
  • 22
    18351A1 BRACKET ASSEMBLY
    New Design
    BRACKET ASSEMBLY
    New Design
  • 23
    16-97477A3 STUD KIT
    New Design
    STUD KIT
    New Design
  • 24
    10-54615 SCREW, (.250-20 x .625)
    New Design
    SCREW, (.250-20 x .625)
    New Design
  • 25
    13-26992 LOCKWASHER, (.250) Stainless Steel
    New Design
    LOCKWASHER, (.250) Stainless Steel
    New Design
  • 26
    64-892790A01 ADAPTOR KIT
    New Design
    ADAPTOR KIT
    New Design
  • 27
    64-892790A01 CLIP
    New Design
    CLIP
    New Design
